Radio Junction Box

Post by Whiterook » Sun Dec 10, 2006 3:53 pm

Can anyone fix me up with a picture of, or tell me where to find a picture of the radion junction box that goes under the passenger seat?? Much thanks.
WhiteRook
HELICOPTERS DON'T FLY THEY BEAT THE AIR INTO SUBMISSION!!
http://www.surfacezero.com/g503/showgal ... p?cat=1146
1942 GPW frame #16150 Rolling Frame W/correct ACM body


User avatar
Jon
Australian Army (Retired) R.A.E.M.E.
Australian Army (Retired) R.A.E.M.E.
Posts: 11948
Joined: Mon May 04, 1998 9:00 pm
Location: Down Under In Queensland
Contact:

Post by Jon » Sun Dec 10, 2006 4:12 pm

From Rons Parts List.... http://www.g503.com/parts/

This is the Conduit....




From JeepDraw.com Middle Section http://www.jeepdraw.com/mid-sect.htm

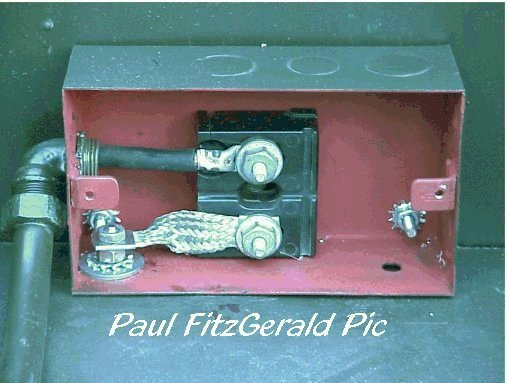

Paul FitzGerald Pic....



Jon Rogers
AUSTRALIA


http://jeepdraw.com JeepDraw Home Page & Drawings
Parts Colours Page http://jeepdraw.com/PART_COLOURS.htm
1944 GPW195611 20531384 ACM-2 17781
1942 MBT 19433W

User avatar
Mark Tombleson
MZ Radio Operator
Posts: 9712
Joined: Wed Dec 11, 2002 9:58 pm
Location: Selah, Washington

Post by Mark Tombleson » Sun Dec 10, 2006 4:19 pm

Here is one I took of Lloyd White's 1945 MB a couple of years ago.

MB-NAVY-MZ-1 352625 - 07/20/44 (DOD est.)
U.S.N. 133818
2nd place Restored Class 2008 Portland Convention
MVPA Hall of Fame - 2013

User avatar
Paul FitzGerald
G-Brigadier General
G-Brigadier General
Posts: 2031
Joined: Thu Dec 19, 2002 5:50 pm
Location: Hercules CA

Post by Paul FitzGerald » Sun Dec 10, 2006 6:33 pm

I might want to ad that the ORIGINALS were lead coated. The cover was not coated. I pulled the one off my 44 GPW and wondered why it was so dull after bead blasting it. I used electrical Knock-outs to fill the holes left when I used the hole punch. The junction block was from an old electrical service and not original. Really easy to knock together.
Many thanks to jeep-draw for the plans, Jon has been a life saver to all of us.
Cheers
Paulie
Veteran Tonkin Gulf DDR-874 IC3
GPW#10809 USA #2066524 NellyBelle
GPW#109945 USA #20371664 TinkerBelle
GPW#214852 USA #20546044 Rustie-Odograph jeep
9/43 MBT #37689 USA#0240682
MVCC and MVPA #22574

User avatar
Sean
G-Lieutenant General
G-Lieutenant General
Posts: 6195
Joined: Sun Dec 15, 2002 12:55 am
Location: Down under (Australia)
Contact:

Post by Sean » Wed Dec 13, 2006 12:38 am

Neither of those two internal connections appear correct to me. As Paul has already stated his bakelite insulator is not correct, lloyd is missing the floor stud by the looks and the large capacitor is missing on both.
Sean Elliott
4-44 Gpw 190236
3-43 Bantam T3 trailer
Type 3a Aust. Ford trailer

User avatar
Mark Tombleson
MZ Radio Operator
Posts: 9712
Joined: Wed Dec 11, 2002 9:58 pm
Location: Selah, Washington

Post by Mark Tombleson » Wed Dec 13, 2006 1:10 am

You are correct Sean…


The capacitor (filter) in the upper middle is:

WO-A-7600 filter unit, .5 MFD, for the radio terminal box.

See, even the generator between the seats has a bloody filter.

MB-NAVY-MZ-1 352625 - 07/20/44 (DOD est.)
U.S.N. 133818
2nd place Restored Class 2008 Portland Convention
MVPA Hall of Fame - 2013

User avatar
MB399579
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 447
Joined: Wed Sep 01, 2004 7:27 am
Location: Near the French Armor Museum SAUMUR - FRANCE
Contact:

Post by MB399579 » Thu Dec 14, 2006 3:12 pm

Could you please post a picture of correct inner configuration of radio terminal box ? thank's
Willys MB 399579 - December 44
Register number (I've found it ! ) 20661416 S
Nickname "Peggy" (I've found it too !!!)
If you know a woman called Peggy, around 80 years old...

1944 Bantam T-3 - ACM# 114246

tsornes
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 302
Joined: Fri Mar 19, 2004 8:29 am
Location: Norway

cable connector

Post by tsornes » Fri Dec 15, 2006 3:42 am

Were the cable connector (dont remember the correct term on this part) pressed on or were they soldered originally?

Torfinn

User avatar
svenn
G-Colonel
G-Colonel
Posts: 1344
Joined: Thu Apr 21, 2005 11:10 am
Location: Hakadal, Norway

Post by svenn » Fri Dec 15, 2006 6:23 am

How about this.....


Svenn
MB 1945
GPW 1944
Bantam 1/4 ton trailer
British 10CWT, Mk II Trailer
Norton 16H 1944
DKW NZ250 1939
Allis Chalmer B 1952

User avatar
hopps1945
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 430
Joined: Mon Jan 13, 2003 1:53 pm
Location: Nine Miles Falls, WA
Contact:

Post by hopps1945 » Fri Dec 15, 2006 12:32 pm

Mark Tombleson wrote:You are correct Sean…


The capacitor (filter) in the upper middle is:

WO-A-7600 filter unit, .5 MFD, for the radio terminal box.
Hey Mark, those three with the bags looks very familiar to me :D :D
Nick Hopper
3/12/45 MB425051
My project: http://g503.com/forums/viewtopic.php?f=144&t=221276
MVPA#36164

User avatar
Mark Tombleson
MZ Radio Operator
Posts: 9712
Joined: Wed Dec 11, 2002 9:58 pm
Location: Selah, Washington

Post by Mark Tombleson » Fri Dec 15, 2006 4:27 pm

Hehehe... you still have those Nick?

I did sent them back didn't I?
:?
MB-NAVY-MZ-1 352625 - 07/20/44 (DOD est.)
U.S.N. 133818
2nd place Restored Class 2008 Portland Convention
MVPA Hall of Fame - 2013

User avatar
hopps1945
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 430
Joined: Mon Jan 13, 2003 1:53 pm
Location: Nine Miles Falls, WA
Contact:

Post by hopps1945 » Fri Dec 15, 2006 5:03 pm

Mark Tombleson wrote:Hehehe... you still have those Nick?

I did sent them back didn't I?
:?
Yup, nice and safe with all my other jeep parts waiting the day I can finally put it all back together.

Thanks again for checking them out!!!

:D
Nick Hopper
3/12/45 MB425051
My project: http://g503.com/forums/viewtopic.php?f=144&t=221276
MVPA#36164

User avatar
Tony Norton
G-Colonel
G-Colonel
Posts: 1496
Joined: Fri Dec 13, 2002 9:52 pm
Location: Dumfries VA

Post by Tony Norton » Fri Dec 15, 2006 11:47 pm

Here is an unmolested 1945 GPW Radio Junction Box. The ground stud is in the lower left corner of the box with star washers. Box is lead coated as Paulie pointed out. It looks like the one Svenn posted.
Here are links to more detailed in the two photos above.

DIAL UP CAUTION
These photo are large at 1600x1200 and about 1Mb Each.

1945 Radio Junction Box

Radio Junction Box Ground Cable
Tony Norton
Dumfries VA
