M14 mounts

Post by Hell On Wheels » Thu Nov 28, 2019 8:26 pm

Does anyone have pictures or know where they mounted M14? Was it across the windshield?
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

markrdje
USMC Sergeant
USMC Sergeant
Posts: 610
Joined: Sat Jun 13, 2009 1:44 pm

Re: M14 mounts

Post by markrdje » Thu Nov 28, 2019 9:29 pm

I'd think it would be in the same place as the m16.In WW2 they mounted rifles across the windshield.I need your email address if you want a picture
change user name to mark

User avatar
Hell On Wheels
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1169
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: M14 mounts

Post by Hell On Wheels » Thu Nov 28, 2019 10:00 pm

That would be good please send: rdlr2112@gmail.com
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

markrdje
USMC Sergeant
USMC Sergeant
Posts: 610
Joined: Sat Jun 13, 2009 1:44 pm

Re: M14 mounts

Post by markrdje » Fri Nov 29, 2019 5:29 am

the email address didn't work, type in 'm14 in m151a2' to the search internet slot.
change user name to mark

User avatar
muttguru
G-Colonel
G-Colonel
Posts: 1576
Joined: Fri Jul 18, 2003 12:46 pm
Location: Lil' ol' England
Contact:

Re: M14 mounts

Post by muttguru » Sat Nov 30, 2019 4:53 am

The M14 (and later the M16) were stowed vertically at each side of the vehicle.

But first....you need the appropriate installation kit....if you are using an M14 or replica...then you should obtain the kit with the "round" base.



Here's a picture of how the rifle was stowed......


Ken
Contact address - muttguru@aol.com
Always wanted - Details and pictures of M416 Trailer data plates & M151 data plates & body-tags for my research. Thanks!

User avatar
Hell On Wheels
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1169
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: M14 mounts

Post by Hell On Wheels » Sat Nov 30, 2019 8:42 am

Thanks Ken that is exactly what I was looking for
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

User avatar
Hell On Wheels
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1169
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: M14 mounts

Post by Hell On Wheels » Sun Dec 01, 2019 2:31 pm

what is the part number of that kit, I can't read it?
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

markrdje
USMC Sergeant
USMC Sergeant
Posts: 610
Joined: Sat Jun 13, 2009 1:44 pm

Re: M14 mounts

Post by markrdje » Sun Dec 01, 2019 3:00 pm

Looks like ORD R51763
change user name to mark

User avatar
muttguru
G-Colonel
G-Colonel
Posts: 1576
Joined: Fri Jul 18, 2003 12:46 pm
Location: Lil' ol' England
Contact:

Re: M14 mounts

Post by muttguru » Mon Dec 02, 2019 6:57 am

That kit is p/n 8712407, NSN 2500-045-9611.
Ken
Contact address - muttguru@aol.com
Always wanted - Details and pictures of M416 Trailer data plates & M151 data plates & body-tags for my research. Thanks!

User avatar
acudanut
USMC GUNNY
Posts: 279
Joined: Sat Feb 19, 2011 7:47 am
Location: Land of OZ, KANSAS

Re: M14 mounts

Post by acudanut » Mon Dec 16, 2019 12:21 pm

The M-14. The finest rifle ever made imo. Yeah, I have had one for a wee bit of time. (30 years). Cheerio.

User avatar
W. Winget
LTC, U.S. Army
LTC, U.S. Army
Posts: 3100
Joined: Mon Dec 16, 2002 12:37 pm
Location: USA, Virginia, Carrollton
Contact:

Re: M14 mounts

Post by W. Winget » Mon Dec 16, 2019 12:35 pm

Agree with everything said and posted...no issues (you will have issues if you mount it with a ROPs system and have the light switch moved, etc.)

That said, the top installation photo Ken posted shows the passenger side (battery box lid clamp at bottom, battery cable for Slave receptacle going out the right side) illustration of placing the butt holder in the obvious early floor panel with the removable drain plug, neat but not the issue.... :wink: .

What's the pivoting sliding bracket riveted on the edge of the doorway for? :shock:

Looks like it might be a door stop/stay, but rather awkward if it were, your boots would be tramping on it :roll: ... I cannot think of one 'kit' it may go to, and a rivet head there...???
Just a really curious observation to me :oops: .
V/R W. Winget
Looking for 1918 Standard B 'Liberty' truck parts

User avatar
Hell On Wheels
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1169
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: M14 mounts

Post by Hell On Wheels » Mon Dec 16, 2019 1:27 pm

I bought a M1A1 “civilized” a few years back M14 and man it’s a beast I love it. I would like to find a couple of those kits. The ones I’ve seen are m16/m14 with Square butt stock mounts but looking for what Ken pointed out the round butt stock mounts
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

User avatar
muttguru
G-Colonel
G-Colonel
Posts: 1576
Joined: Fri Jul 18, 2003 12:46 pm
Location: Lil' ol' England
Contact:

Re: M14 mounts

Post by muttguru » Mon Dec 16, 2019 1:48 pm

W. Winget wrote:
Mon Dec 16, 2019 12:35 pm

What's the pivoting sliding bracket riveted on the edge of the doorway for? :shock:

Looks like it might be a door stop/stay, but rather awkward if it were,
V/R W. Winget
Spot on, ol' chum. Yes, it's the door stay for the hardtop enclosure :)
Ken
Contact address - muttguru@aol.com
Always wanted - Details and pictures of M416 Trailer data plates & M151 data plates & body-tags for my research. Thanks!

User avatar
muttguru
G-Colonel
G-Colonel
Posts: 1576
Joined: Fri Jul 18, 2003 12:46 pm
Location: Lil' ol' England
Contact:

Re: M14 mounts

Post by muttguru » Mon Dec 16, 2019 1:56 pm

Hell On Wheels wrote:
Mon Dec 16, 2019 1:27 pm
I bought a M1A1 “civilized” a few years back M14 and man it’s a beast I love it. I would like to find a couple of those kits. The ones I’ve seen are m16/m14 with Square butt stock mounts but looking for what Ken pointed out the round butt stock mounts

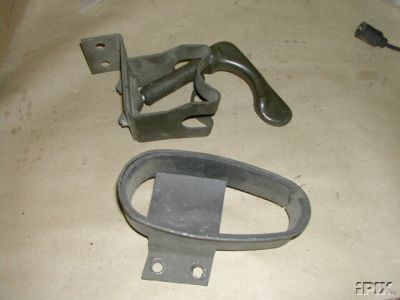

Robert.... here's a clearer picture of the oval base. I'm sure a good sheet-metal worker could fabricate something close..... the difficult bit would be to form that lip on the top edge of the buttstock holder.
Ken

Contact address - muttguru@aol.com
Always wanted - Details and pictures of M416 Trailer data plates & M151 data plates & body-tags for my research. Thanks!
