Re: floor drain holes
What page of the TM, Sean?
I would like to read that but I can't seem to find it in my original.
I would like to read that but I can't seem to find it in my original.
MB-NAVY-MZ-1 352625 - 07/20/44 (DOD est.)
U.S.N. 133818
2nd place Restored Class 2008 Portland Convention
MVPA Hall of Fame - 2013
U.S.N. 133818
2nd place Restored Class 2008 Portland Convention
MVPA Hall of Fame - 2013
- Sean
- G-Lieutenant General
- Posts: 6195
- Joined: Sat Dec 14, 2002 10:55 pm
- Location: Down under (Australia)
- Contact:
Re: floor drain holes
TM-10-1513 May 15, 1942 ..... page 125 under BODY.Mark Tombleson wrote:What page of the TM, Sean?
I would like to read that but I can't seem to find it in my original.
"Brass plugs have been placed in the left and
right front corners to drain the floor".
TM-10-1206 Dec. 1, 1941
page 76 grp No. 1800 Body & Attaching parts
A-2933 ....... Clinch nut- special (for 1/4" pipe drain plug in front floor) .......................No. reqd 2
52984 ........ Plug 1/4" - pipe thread - Slotted (for front floor pan drain hole cover)..........No. reqd 2
page 84 grp No. 2304 Pipe Plug
5138 ........ Pipe plug 1/4" Std............. No. reqd. 3
52984 ...... Pipe plug 1/4" (slotted) ....... No. reqd. 1 I assume this is a misprint as 2 are required.
TM-10-1186 July 1, 1943
page 137 grp No. 1800 Body & Attaching parts
A-2933 ....... Clinch nut- special (for 1/4" pipe drain plug in front floor) ......................MB ...No. reqd 2
A-5120 ....... Plug 1/4" - pipe thread - Slotted (for front floor pan drain hole cover) ........MB ...No. reqd 2
Page 152 grp No. 2304 Pipe Plug
5138 ........ Pipe plug 1/4" Std............. No. reqd. MA 2 MB 3
TM-10-1207 Feb 1 1942
page 49 ... picture of fuel filter... 5138 Pipe Plug - 1/4"
TM-10-1513 May 15, 1942
page 49 ... picture of fuel filter... Willys part No. 5138 .... Ford part No. 353055-S ...Pipe Plug - 1/4"
SO................
5138 is the Willys part number for the square head standard 1/4" pipe plug used on the fuel filter(2) and the fuel tank drain (1) for a total of 3
52984 is the early 41 - 42 part number for the 1/4' slotted floor drain plug ( most likely the brass ones )
5120 is the later 42? early 43? onwards part number for the 1/4" slotted floor drain plug ( most likely changed to steel )
Sean Elliott
4-44 Gpw 190236
3-43 Bantam T3 trailer
Type 3a Aust. Ford trailer
4-44 Gpw 190236
3-43 Bantam T3 trailer
Type 3a Aust. Ford trailer
-
- Jeep Heaven
- Posts: 49841
- Joined: Sun Mar 02, 2008 12:37 pm
- Location: Proving Ground
Re: floor drain holes
And that same slotted plug also is used on G-503 fuel tank drains.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO
- Gary C V
- G-Major
- Posts: 894
- Joined: Tue May 13, 2003 2:45 am
- Location: Sydney, Australia
Re: floor drain holes
Thanks Sean,
I couldn't blow the picture up like you have and keep the clarity, thanks mate.
Cheers Gary
I couldn't blow the picture up like you have and keep the clarity, thanks mate.
Cheers Gary
- lt.luke
- G-General
- Posts: 9899
- Joined: Fri May 09, 2003 7:56 am
- Location: Oklahoma
- Contact:
Re: floor drain holes
Everything I've read says that the square head plugs were used in the tank, but you are saying slotted? I'm glad I still have my square head drain plugs so I can quit paying attention to that half of the conversation. I guess I will be looking for some slotted plugs for the floor though.Ben Dover wrote:And that same slotted plug also is used on G-503 fuel tank drains.
Luke Sparks
MAJ (R), USA
GPW 12078 http://g503.com/forums/viewtopic.php?f=95&t=102532
https://www.homesteadersfinest.com/
MAJ (R), USA
GPW 12078 http://g503.com/forums/viewtopic.php?f=95&t=102532
https://www.homesteadersfinest.com/
-
- Jeep Heaven
- Posts: 49841
- Joined: Sun Mar 02, 2008 12:37 pm
- Location: Proving Ground
Re: floor drain holes
A-5120 Plug is in the TM10 and SNL's, some say just Pipe Plug, others describe it as "slotted", it's in the manuals, you have to hunt for them, group o300 and 1800 will list them. It also is used a bung in the fuel tank drain. The they have been popular with the MVCC members since the 70's. The ones I have are slotted brass.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO
- Mark Tombleson
- MZ Radio Operator
- Posts: 9836
- Joined: Wed Dec 11, 2002 7:58 pm
- Location: Selah, Washington
Re: floor drain holes

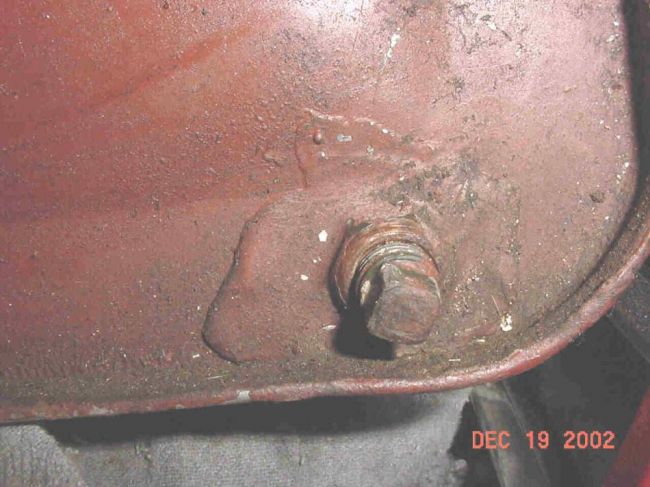

My jeep had a square head plug.
