Navy Willys colors

Post by Lt.Horne » Tue Jul 13, 2021 11:56 am

Hello,
Navy Willys 1945 was gray painted inside? Or was OD?
thanks for help
Robert
WILLYS MB192941 Dec.1942


pgcf
G-Second Lieutenant
G-Second Lieutenant
Posts: 505
Joined: Mon Oct 19, 2009 9:34 pm
Location: Texas

Re: Navy Willys colors

Post by pgcf » Tue Jul 13, 2021 6:07 pm

No Navy contract jeeps were painted grey from the factory. It was something done by the ship or unit. That being said it is up to you.

Most people paint the body grey (inside and out). The frame, body underside, and engine compartment would probably remain OD.

Check out this website, #10 is an original '43 GPW that came out of the Philadelphia Naval Yard. The body is grey inside and out but the wheels are OD along with the engine compartment and underside.

http://www.nsjp.biz

Hope this helps,
Peter

Miles Through Time
G-Sergeant
G-Sergeant
Posts: 33
Joined: Sat Jul 10, 2021 7:17 am
Location: Clarksville, GA

Re: Navy Willys colors

Post by Miles Through Time » Thu Jul 15, 2021 6:28 am

Our group is doing an M38A1 as a Navy jeep. Most research shows no real consensus on what was grey and what was left OD green, so we are doing our own thing, but here it is.

Frame, engine and all chassis parts like axles and springs are OD green.
We are painting the wheel hubs and forward frame horns Grey
Tub is grey inside and out
all sheet metal is grey, grill, genders, hood top and bottom, winshield, bows, mirror arms, pedals, gear shift canes, seats, etc.
Engine accessories are matte black like starter, generator, air cleaner
All markings will be in matte black on hood, front bumper and rear bumperettes.
Canvas is od green, seat cushions and top
wheels are grey
jerry can is grey, although this would have been left OD green, so we know this is not correct

Will try to post some pics when we get further along.

User avatar
Lt.Horne
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 377
Joined: Sun Jun 05, 2005 11:50 am
Location: Poland

Re: Navy Willys colors

Post by Lt.Horne » Thu Jul 15, 2021 1:50 pm

Thanks for replays, that was my idea - grey outside and OD inside
All the best
Robert
WILLYS MB192941 Dec.1942

blitz67
G-Captain
G-Captain
Posts: 777
Joined: Sun Mar 19, 2006 12:54 pm
Location: Citrus Heights, Ca.

Re: Navy Willys colors

Post by blitz67 » Fri Jul 16, 2021 6:59 am

WWII Navy colors ranged from the typical ugly battleship gray to blue and beyond, my personal opinion is that the darker blue is more typical of what a Navy Jeep would have looked like, but then I'm no squid.
Attachments

blitz67
G-Captain
G-Captain
Posts: 777
Joined: Sun Mar 19, 2006 12:54 pm
Location: Citrus Heights, Ca.

Re: Navy Willys colors

Post by blitz67 » Fri Jul 16, 2021 7:01 am

There is a website called shipcamouflage.com, they have tall of the WWII Navy color paint chips

Miles Through Time
G-Sergeant
G-Sergeant
Posts: 33
Joined: Sat Jul 10, 2021 7:17 am
Location: Clarksville, GA

Re: Navy Willys colors

Post by Miles Through Time » Sat Jul 17, 2021 6:08 am

Thanks for replays, that was my idea - grey outside and OD inside
All the best

I hope I'm reading this wrong. I have seen an original Navy WWII jeep with the top of the hood grey and the under side of the hood OD green as only what was visable or reachable with spray gun was overpainted grey. But the entire tub would be grey except for the underneath. But the inside of the tub would be grey. Now, I don't know if the military would remove the canvas from the seats, paint the seats grey and then reinstall the old canvas, or just leave seats OD green. Remove tires and paint wheels grey? Mask off tires and paint wheels grey? Mask off outside of tire and paint only the outside of the wheel grey and leave the inside green? Where does it end?

User avatar
Lt.Horne
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 377
Joined: Sun Jun 05, 2005 11:50 am
Location: Poland

Re: Navy Willys colors

Post by Lt.Horne » Sat Jul 17, 2021 8:59 am

I try to think about painting like USN sailor who have job to do - change color from OD to Navy gray,
outside gray, under hood OD, removed wheels and protected rubber, fenders inside gray, protected glass , inside - data plates, knobs and gauges protected, cushions of seats removed and screwed again when paint dry.
WILLYS MB192941 Dec.1942

User avatar
Mark Tombleson
MZ Radio Operator
Posts: 9719
Joined: Wed Dec 11, 2002 9:58 pm
Location: Selah, Washington

Re: Navy Willys colors

Post by Mark Tombleson » Mon Jul 19, 2021 10:32 am

MB-NAVY-MZ-1 352625 - 07/20/44 (DOD est.)
U.S.N. 133818
2nd place Restored Class 2008 Portland Convention
MVPA Hall of Fame - 2013

gpwmke
G-Colonel
G-Colonel
Posts: 1808
Joined: Thu Jul 10, 2003 5:13 pm
Location:

Re: Navy Willys colors

Post by gpwmke » Thu Jul 22, 2021 10:15 pm

Painted my Navy jeep grey in and outside body tub and wheels but OD under hood and the chassis.

User avatar
Mark Tombleson
MZ Radio Operator
Posts: 9719
Joined: Wed Dec 11, 2002 9:58 pm
Location: Selah, Washington

Re: Navy Willys colors

Post by Mark Tombleson » Tue Jul 27, 2021 11:14 am

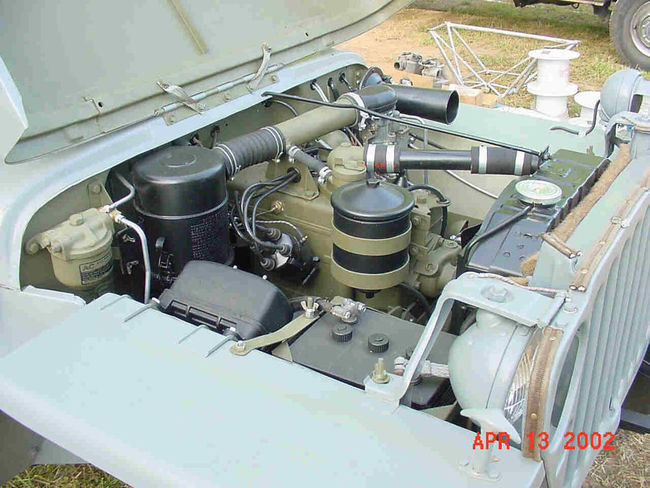

I forgot to include this photo!

MB-NAVY-MZ-1 352625 - 07/20/44 (DOD est.)
U.S.N. 133818
2nd place Restored Class 2008 Portland Convention
MVPA Hall of Fame - 2013
