armor pieces

Post by Action » Sat Nov 21, 2020 3:00 pm

I need the 3 armor pieces that are left in every m1152a1 and m1165a1 sold at GP.
The interior piece by driver's right shin.
the interior piece by commander's left shin
the piece behind the heater core.
the thick close out behind driver seat base from brace to floor. ( i have the thin pair for partial trade? )
the 2 LH underbody pieces in the rear (under and behind rear seat)
2-man roof overlay (these are left on trucks every week)
the square RH intake cover with 3 holes
the exterior RH cowl piece 1/2" thick. the one i have is only about 3/8" thick

the TCM wire cover from m1152
front roller door hinge blocks. I can get frag 5 cut down to stndrd threat size.
m1152 b-pillar pads and hold downs.

Thanks
Jason


Action
G-Lieutenant General
G-Lieutenant General
Posts: 4878
Joined: Mon Feb 06, 2006 5:19 pm
Location: East Tennessee
Contact:

Re: armor pieces

Post by Action » Sat Nov 21, 2020 6:17 pm

Also pair of wiper extensions for knock outs.

Jason

Action
G-Lieutenant General
G-Lieutenant General
Posts: 4878
Joined: Mon Feb 06, 2006 5:19 pm
Location: East Tennessee
Contact:

Re: armor pieces

Post by Action » Sun Nov 22, 2020 9:06 am

and the bracket in first aid kit location that holds trans relay and circuit breaker, for m1152. Not the one behind the batteries.

Jason

User avatar
Retired War Horses
G-Brigadier General
G-Brigadier General
Posts: 2370
Joined: Sun Jan 11, 2004 11:45 am
Location: Northern Calif
Contact:

Re: armor pieces

Post by Retired War Horses » Sun Nov 22, 2020 9:57 am

Action wrote:
Sun Nov 22, 2020 9:06 am
and the bracket in first aid kit location that holds trans relay and circuit breaker, for m1152. Not the one behind the batteries.

Jason

That bracket is for the A/C CB’s....the transmission relay and CB are always on the Trans panel behind the battery box.
Retired War Horses Restoration

Call us for all your HMMWV parts, service, upgrades and conversion needs.

Action
G-Lieutenant General
G-Lieutenant General
Posts: 4878
Joined: Mon Feb 06, 2006 5:19 pm
Location: East Tennessee
Contact:

Re: armor pieces

Post by Action » Sun Nov 22, 2020 11:38 am

Retired War Horses wrote:
Sun Nov 22, 2020 9:57 am
Action wrote:
Sun Nov 22, 2020 9:06 am
and the bracket in first aid kit location that holds trans relay and circuit breaker, for m1152. Not the one behind the batteries.

Jason

That bracket is for the A/C CB’s....the transmission relay and CB are always on the Trans panel behind the battery box.
You are correct. I meant the a/c parts. This site's update doesn't allow me to edit anything after an hour of posting..

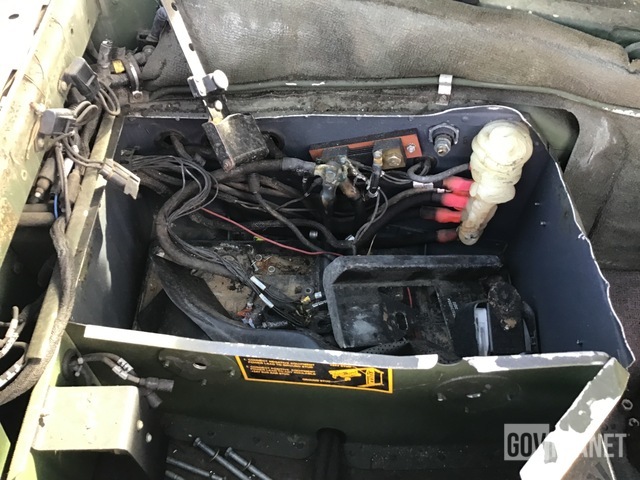

the bracket in bottom LH corner of this pic. I know it is in the manual, but I didn't see it yet today.

So, this armor plate just bolts over top of the trans panel in the rear footwell? It is hard for me to see this pic good, but it looks like the armor it tight to the b-pillar brace.

EDIT. Holding the armor over my relay panel, it looks like the bolt heads on the panel are the same distance as the holes in the armor. But I used a 4 man panel for toe clearance. The bolts are not in the same position. Maybe I need to get the proper 2 man panel that runs to the floor.

Jason
