Battery box Paint Black

Post by ltrpd » Mon Oct 29, 2018 6:47 am

What are the specs for the black paint that is painted in the battery box. My HMMWV is green and want it to be correct color of Black.
Attachments
battery box 92 hmmwv.jpg
battery box 92 hmmwv.jpg (109.28 KiB) Viewed 401 times

User avatar
Ted Gates
G-Brigadier General
G-Brigadier General
Posts: 2325
Joined: Sun Dec 15, 2002 2:13 pm
Location: Eaton Rapids, MI

Re: Battery box Paint Black

Post by Ted Gates » Mon Oct 29, 2018 7:57 am

I do not know the specs but it seems to be an enamel. It does get affected by acid so I don't know why they use it. Here is my new tub battery box.
Attachments
battery box.jpg
battery box.jpg (206.76 KiB) Viewed 398 times

User avatar
W. Winget
LTC, U.S. Army
LTC, U.S. Army
Posts: 2197
Joined: Mon Dec 16, 2002 12:37 pm
Location: USA, Virginia, Carrollton
Contact:

Re: Battery box Paint Black

Post by W. Winget » Mon Oct 29, 2018 8:34 am

It may just be that black is an easier paint to obtain in NON-CARC enamel application for motor-pools, so they ended up making the space black VS Green CARC which you would have to have a hazmat setup to touch up the paint.

Never seen a black area until your photos showed up in the above photo, but if painting black battery area I would recommend a bed liner type material for acid resistance.

Itrpd: Since yours was green from the factory/military, why paint it black :?:
W Winget
Looking for 1918 Standard B 'Liberty' truck parts

Action
G-Lieutenant General
G-Lieutenant General
Posts: 4443
Joined: Mon Feb 06, 2006 5:19 pm
Location: SW Florida
Contact:

Re: Battery box Paint Black

Post by Action » Mon Oct 29, 2018 9:35 am

I have never seen a black box before. ☹️
In person
Is it only n certain models? My new m1113 tub didnt have it. I dont think...
Jason

User avatar
Kurt Lesser
G-Major General
G-Major General
Posts: 3476
Joined: Sun May 16, 2004 4:08 pm
Location: San Jose, Ca
Contact:

Re: Battery box Paint Black

Post by Kurt Lesser » Mon Oct 29, 2018 5:39 pm

If you want a good, durable black finish in your battery box use Rhinoliner or one of the numerous bedliners out there. They're the correct black color and are acid resistant.
Kurt Lesser
US Navy, 1969-1975
M996A1 Ambulance w/M101A3 Trailer
M274A2 Mule
M151A1 Mutt w/M416B1 Trailer
M890 Crew cab


ltrpd
G-Staff Sergeant
G-Staff Sergeant
Posts: 52
Joined: Thu Apr 21, 2016 5:23 pm
Location: Ohio

Re: Battery box Paint Black

Post by ltrpd » Mon Oct 29, 2018 7:51 pm

W. Winget wrote:
Mon Oct 29, 2018 8:34 am
It may just be that black is an easier paint to obtain in NON-CARC enamel application for motor-pools, so they ended up making the space black VS Green CARC which you would have to have a hazmat setup to touch up the paint.

Never seen a black area until your photos showed up in the above photo, but if painting black battery area I would recommend a bed liner type material for acid resistance.

Itrpd: Since yours was green from the factory/military, why paint it black :?:
W Winget
The only reason I wanted to paint it black was that I thought that black was the correct paint for newer hmmwv, thanks, ralph

wooody1
G-Sergeant First Class
G-Sergeant First Class
Posts: 82
Joined: Thu Aug 29, 2013 9:24 am
Location: NEVADA LAS VEGAS

Re: Battery box Paint Black

Post by wooody1 » Tue Oct 30, 2018 6:17 am

Quick question

On the rh side of the box being the separation between battery and slave, what is the metal loop used for and the strap, have seen an fire ext in there, what usually goes in that space?

Thank you

Ben Dover
Gee Addict
Posts: 44449
Joined: Sun Mar 02, 2008 2:37 pm
Location: Proving Ground

Re: Battery box Paint Black

Post by Ben Dover » Tue Oct 30, 2018 6:54 am

The Rhino Liner Kurt suggested is probably as good as it gets and has the correct appearance. I used to use GI Issue Battery Box paint in my earlier M-Series Vehicles, it is not as durable.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO

User avatar
Ted Gates
G-Brigadier General
G-Brigadier General
Posts: 2325
Joined: Sun Dec 15, 2002 2:13 pm
Location: Eaton Rapids, MI

Re: Battery box Paint Black

Post by Ted Gates » Tue Oct 30, 2018 7:34 am

Wooody1
That is for M998 A0 trucks to hold first aid kit. They then removed them since first aid kits and battery acid do not mix well.

User avatar
Kurt Lesser
G-Major General
G-Major General
Posts: 3476
Joined: Sun May 16, 2004 4:08 pm
Location: San Jose, Ca
Contact:

Re: Battery box Paint Black

Post by Kurt Lesser » Tue Oct 30, 2018 3:33 pm

I keep a gallon of distilled water there for either the batteries or the cooling system. It's also a good place to mount your solargizer electronics box.
Kurt Lesser
US Navy, 1969-1975
M996A1 Ambulance w/M101A3 Trailer
M274A2 Mule
M151A1 Mutt w/M416B1 Trailer
M890 Crew cab

desmodromic
G-Staff Sergeant
G-Staff Sergeant
Posts: 72
Joined: Wed May 04, 2016 11:18 am
Location: New York, New York

Re: Battery box Paint Black

Post by desmodromic » Tue Oct 30, 2018 8:04 pm

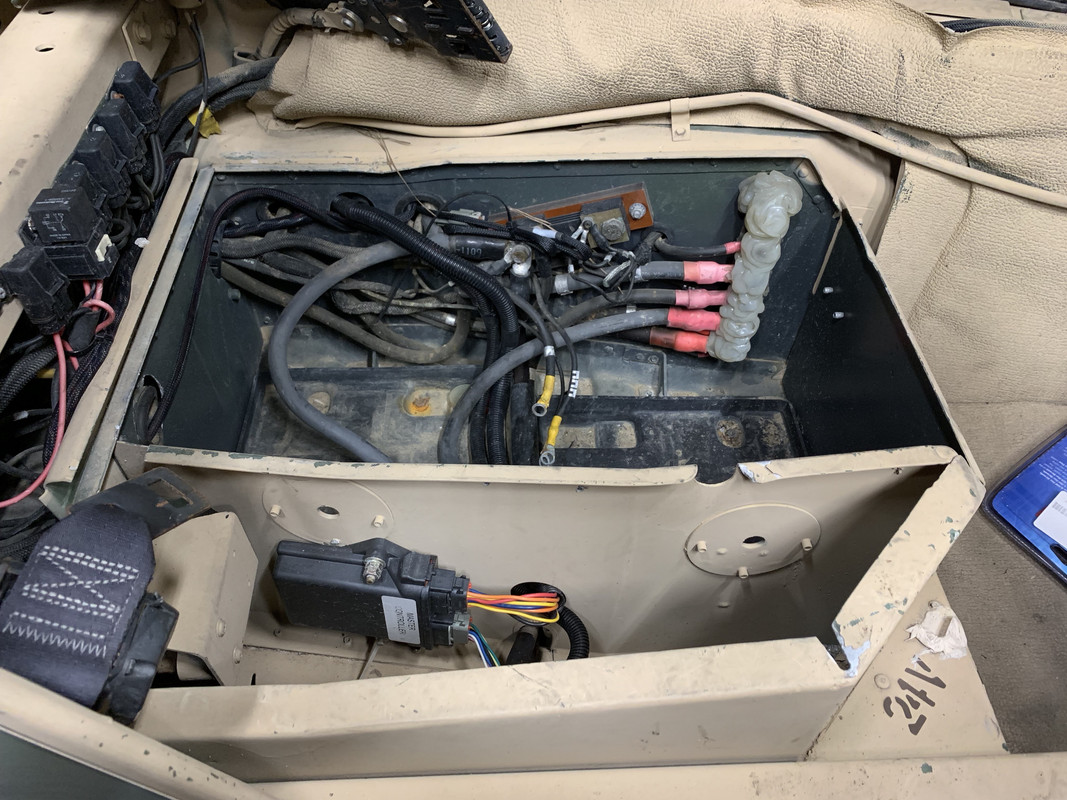

If you want it to be authentic, the battery box should be black, but with a touch of IDGAF 383 overspray, at least according to my 2011. :D


:D
86 M966 Tow
88 M998 Avenger
89 M998 4 Man
90 M998
93 M998 Seabee
95 M998A1 4 Man
99 M1045A2
99 M1123A2
10 M1102
11 M1165A1

ltrpd
G-Staff Sergeant
G-Staff Sergeant
Posts: 52
Joined: Thu Apr 21, 2016 5:23 pm
Location: Ohio

Re: Battery box Paint Black

Post by ltrpd » Wed Oct 31, 2018 3:08 am

did your 2011 m1165 buss bar come with silicone on the terminals or did you put it on.

desmodromic
G-Staff Sergeant
G-Staff Sergeant
Posts: 72
Joined: Wed May 04, 2016 11:18 am
Location: New York, New York

Re: Battery box Paint Black

Post by desmodromic » Wed Oct 31, 2018 5:31 am

ltrpd wrote:
Wed Oct 31, 2018 3:08 am
did your 2011 m1165 buss bar come with silicone on the terminals or did you put it on.
It came that way. At least half of my Humvees came with some sort of non-conductive material on the major power contacts.
86 M966 Tow
88 M998 Avenger
89 M998 4 Man
90 M998
93 M998 Seabee
95 M998A1 4 Man
99 M1045A2
99 M1123A2
10 M1102
11 M1165A1

ltrpd
G-Staff Sergeant
G-Staff Sergeant
Posts: 52
Joined: Thu Apr 21, 2016 5:23 pm
Location: Ohio

Re: Battery box Paint Black

Post by ltrpd » Wed Oct 31, 2018 8:35 am


was the silicone also globbed on the starter connection

desmodromic
G-Staff Sergeant
G-Staff Sergeant
Posts: 72
Joined: Wed May 04, 2016 11:18 am
Location: New York, New York

Re: Battery box Paint Black

Post by desmodromic » Wed Oct 31, 2018 10:46 am

Yes
86 M966 Tow
88 M998 Avenger
89 M998 4 Man
90 M998
93 M998 Seabee
95 M998A1 4 Man
99 M1045A2
99 M1123A2
10 M1102
11 M1165A1
