Here are some pics of the progress

Post by ChristianStar » Fri Apr 01, 2011 6:18 pm

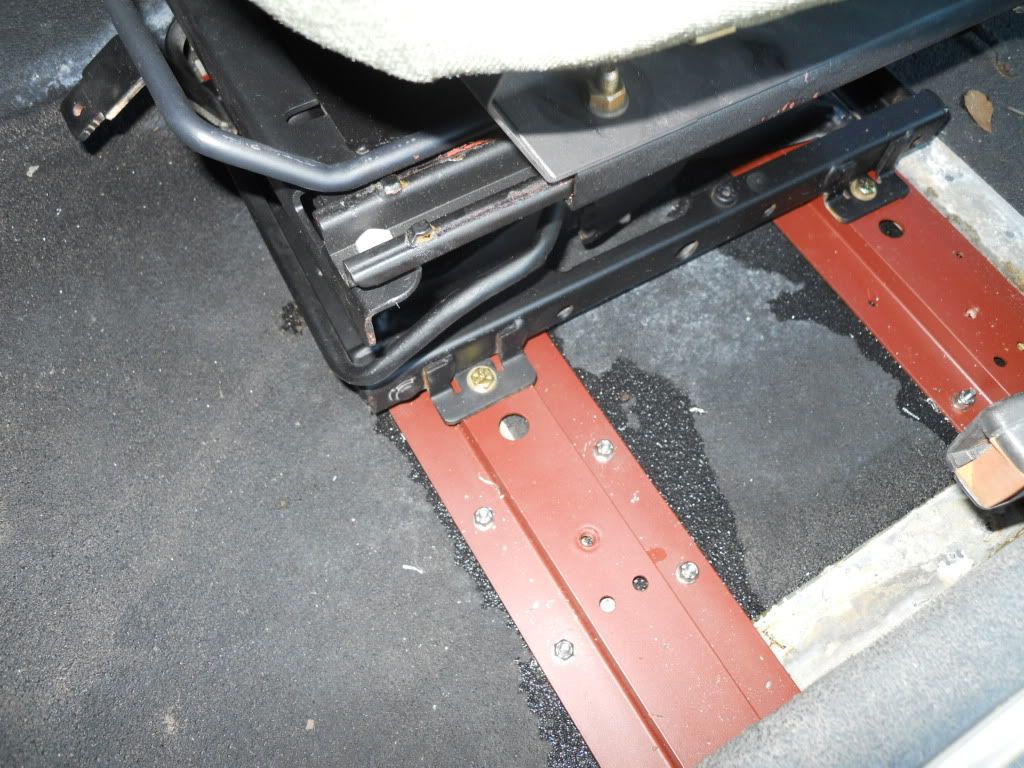

Ok here are the seats you guys were talking about buying from the guy off ebay in Scottsmoore, Fl. I bought 4. Hes a supoer nice guy, when you do get a hold of him. I mounted the rear right on the rear covers. I had to use a nutsert to set the nuts for the front seat riser as the adaptor plates I got wouldnt line up. I primed them for the mounting. My truck has bed liner sprayed in it so tomorrow I am going to remove the drivers seat and spray in rattle can bed liner and try to match it. I also have the can roll on stuff, if the rattle cans fail.
Morgan was busy today after daycare helping me!
Incase anybody needs to know, Surebond.com has the nut sert tools and nuts as well as rivets. Northern tools sells them. I got a large nut sert tool on order from Grainger for bigger ones. Im a tool junky!

By the way my tranny pan is so wet i cant see why. My new pan will be here tomorrow. I torqued the pan to 14 lbs. Maybe thats not tight enough??
1987 M998 HMMWV Tan Just got it!
1988 M1038 Hmmwv Slant Back Woodland Camo Shouldnt have sold it!
1996 Hummer H3 Green! I love this little truck!
1997 Hummer H2 White Its the most comfordable thing I have ever driven in!


libbster29
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1112
Joined: Sun Sep 20, 2009 6:04 am
Location: MARYLAND

Re: Here are some pics of the progress

Post by libbster29 » Fri Apr 01, 2011 6:26 pm

Looks good.... whats the x door for in the picture????

ChristianStar
G-Sergeant
G-Sergeant
Posts: 45
Joined: Wed Apr 22, 2009 5:41 am
Location: Merritt Island, Fl

Re: Here are some pics of the progress

Post by ChristianStar » Fri Apr 01, 2011 6:57 pm

I have a set of x doors I need to paint and install this week. Im going to keep the soft top for the summer then gor to hard top!
1987 M998 HMMWV Tan Just got it!
1988 M1038 Hmmwv Slant Back Woodland Camo Shouldnt have sold it!
1996 Hummer H3 Green! I love this little truck!
1997 Hummer H2 White Its the most comfordable thing I have ever driven in!

User avatar
Haasino
G-Master Sergeant
G-Master Sergeant
Posts: 113
Joined: Thu Mar 18, 2010 12:22 pm
Location: Pacific Northwest

Re: Here are some pics of the progress

Post by Haasino » Fri Apr 01, 2011 7:17 pm

Very nice! Where did you get that LVOSS launcher? Is that a replica, or the real deal?
"Gentlemen, you can't fight in here! This is the War Room!"

You can trust me. I'm a arecrooman...

aircroomen...

airecrewmen...

I fly on planes.

User avatar
dunsbr
G-Lieutenant General
G-Lieutenant General
Posts: 4098
Joined: Thu Dec 09, 2004 4:53 pm
Location: Melbourne, Australia
Contact:

Re: Here are some pics of the progress

Post by dunsbr » Sun Apr 03, 2011 12:55 am

Haasino wrote:Very nice! Where did you get that LVOSS launcher? Is that a replica, or the real deal?
From the white sticker with the sharpie pen number on it, it look like a Beltfed34 supplied part to me.

It'll be a nice addition to the rig Christian

Cheers
Brad Dunstan
RHD '87 M1026
(with 4L80E Trans, 242 T/case, 12K hubs, CTIS, A2 wiring, Air Con, A2 ebrake, 9k Winch,
Serpentine Belt Accessory Drive & Eaton e-lockers)

Mac101
G-Private
G-Private
Posts: 6
Joined: Tue Mar 22, 2022 12:46 pm
Location: Stanwood, Wa

Re: Here are some pics of the progress

Post by Mac101 » Fri Mar 10, 2023 10:02 am

Hi,
I’m mocking up a version of the LVOSS for my Australian Land Rover and was wondering if you could help me with the correct outside diameter of the launcher tube. I purchased the LVOSS caps on eBay and wanted to use the LVOSS tube size so caps fit.

Could you please put a caliper on the tube and also the turned out lip of tube?

Thank you,
Mac
