What do i stamp on a M31C pedestal mount data plate.

Post by acespast » Mon Jul 15, 2019 10:42 am

Hi,
I have a May 42 Willys script jeep and have fitted a repro M31C machine gun mount.I have attached a repro a M31C pedestal mount data plate, Stevens MFG, brass.What details do you think i need to stamp on the data plate for period 1942.Your help would be appreciated.
1942 Willys Script

acespast
G-Captain
G-Captain
Posts: 736
Joined: Tue Jul 21, 2009 11:38 am
Location: Hagley,England

Re: What do i stamp on a M31C pedestal mount data plate.

Post by acespast » Mon Jul 15, 2019 8:48 pm

Any ideas.
1942 Willys Script

acespast
G-Captain
G-Captain
Posts: 736
Joined: Tue Jul 21, 2009 11:38 am
Location: Hagley,England

Re: What do i stamp on a M31C pedestal mount data plate.

Post by acespast » Wed Jul 17, 2019 7:50 am

Still looking for any suggestions.
1942 Willys Script

acespast
G-Captain
G-Captain
Posts: 736
Joined: Tue Jul 21, 2009 11:38 am
Location: Hagley,England

Re: What do i stamp on a M31C pedestal mount data plate.

Post by acespast » Fri Jul 19, 2019 4:15 am

Any thoughts plz G503 memebers.
1942 Willys Script

User avatar
W. Winget
LTC, U.S. Army
LTC, U.S. Army
Posts: 3145
Joined: Mon Dec 16, 2002 12:37 pm
Location: USA, Virginia, Carrollton
Contact:

Re: What do i stamp on a M31C pedestal mount data plate.

Post by W. Winget » Fri Jul 19, 2019 6:35 am

Well since you asked 4 times and no one responded... :?:
I do not own one, but Google is my friend.

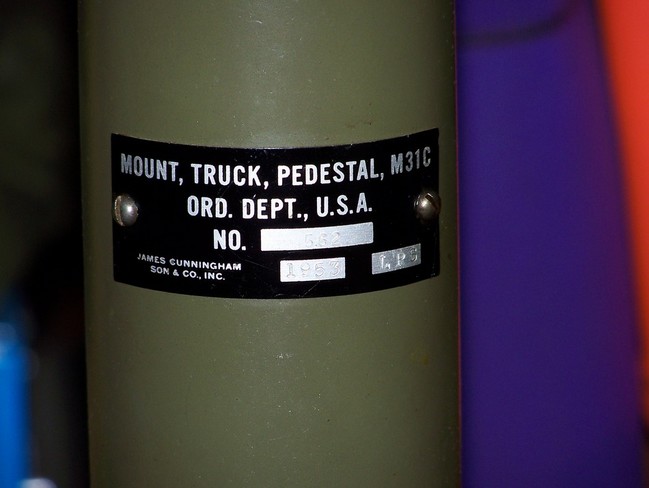

Here are a few originals to peruse and a drawing I did up just for you.
1st a good G503 recent topic link:
Topic: viewtopic.php?t=84892 and a photo from that link of an original unboxed.
Original Dataplate2.jpg
An original
Original Dataplate2.jpg (5.92 KiB) Viewed 1045 times
Original Dataplate1.jpg
another view
Original Dataplate1.jpg (5.52 KiB) Viewed 1045 times
Original Dataplate.jpg
final view
Original Dataplate.jpg (6.33 KiB) Viewed 1045 times
Original plate MVC-002S_2_.jpg
Original
Original plate MVC-002S_2_.jpg (39.12 KiB) Viewed 1045 times
M31C REPOP Dataplate marking.jpg
Repop
M31C REPOP Dataplate marking.jpg (138.36 KiB) Viewed 1045 times
Another sample
My SWAG at it:
M31C Dataplate.jpg
MY SWAG
M31C Dataplate.jpg (162.92 KiB) Viewed 1045 times
YOUR initials can be in the inspectors initials location, as it's a REPOP .... :D
I hope this answers the question.
V/R W Winget
Looking for 1918 Standard B 'Liberty' truck parts

acespast
G-Captain
G-Captain
Posts: 736
Joined: Tue Jul 21, 2009 11:38 am
Location: Hagley,England

Re: What do i stamp on a M31C pedestal mount data plate.

Post by acespast » Fri Jul 19, 2019 7:43 am

Thanks W.Winget,just what i was looking for.I shall stamp mine at the weekend,thanks
1942 Willys Script

User avatar
W. Winget
LTC, U.S. Army
LTC, U.S. Army
Posts: 3145
Joined: Mon Dec 16, 2002 12:37 pm
Location: USA, Virginia, Carrollton
Contact:

Re: What do i stamp on a M31C pedestal mount data plate.

Post by W. Winget » Fri Jul 19, 2019 6:44 pm

One 'minor' question is the date the "C" model came out, as you don't want to be stamping '42 on it if it came out in 43, 44, etc. So the 'Charlie' model date would be the next question before committing the numbers.
V/R W Winget
Looking for 1918 Standard B 'Liberty' truck parts

Joe Gopan
Gee Addict
Posts: 48817
Joined: Sun Mar 02, 2008 2:37 pm
Location: Proving Ground

Re: What do i stamp on a M31C pedestal mount data plate.

Post by Joe Gopan » Fri Jul 19, 2019 9:59 pm

The parts list does indicate screws to attach the data plate, but I prefer Rivets like the one in the pic.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO

acespast
G-Captain
G-Captain
Posts: 736
Joined: Tue Jul 21, 2009 11:38 am
Location: Hagley,England

Re: What do i stamp on a M31C pedestal mount data plate.

Post by acespast » Sat Jul 20, 2019 11:45 am

I used brass rivets.They look good and will tarnish with age.
1942 Willys Script

minniethejeep
G-Private First Class
G-Private First Class
Posts: 14
Joined: Sat Nov 18, 2017 5:24 am
Location: England

Re: What do i stamp on a M31C pedestal mount data plate.

Post by minniethejeep » Thu Feb 20, 2020 9:09 am

I wouldn't worry too much about the date the pedestal has, as an earlier one, say a '41, could be fitted to a '42 jeep as they would use the next one off the shelf, and a '42 jeep could easily be fitted with say a '44 pedestal if later on in its service it was required.
Eric Corfield, England.
GPW #239370
Body mid series Willys
British army lend lease

Joe Gopan
Gee Addict
Posts: 48817
Joined: Sun Mar 02, 2008 2:37 pm
Location: Proving Ground

Re: What do i stamp on a M31C pedestal mount data plate.

Post by Joe Gopan » Thu Feb 20, 2020 9:25 am

Are the brass M-31C Data Plates once offered by Garrick Smith still availible? They were made to perfection.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO

wmbrown
G-Private First Class
G-Private First Class
Posts: 14
Joined: Fri Feb 06, 2009 2:47 pm

Re: What do i stamp on a M31C pedestal mount data plate.

Post by wmbrown » Mon Jun 29, 2020 9:28 am

I recently purchased one of Garrick's m31c brass data plates from Army Jeep Parts. It looks like an original, beautiful. Once I stamp the date, inspected by and number on it....where does it mount on the pedestal? Front, back?? How high from the base?
Thanks, Jim

Joe Gopan
Gee Addict
Posts: 48817
Joined: Sun Mar 02, 2008 2:37 pm
Location: Proving Ground

Re: What do i stamp on a M31C pedestal mount data plate.

Post by Joe Gopan » Mon Jun 29, 2020 11:02 am

There are two holes for the Name plate and they were attached by round head thread cutting screws.
The ORD No. for the M-31C PLATE is 7069923
The Two Screws are;

SCREW, TAPPING, THREAD CUTTING:
RDH, SLTD-BLUNT-PT, STL, CD-OR ZN-PLD, NO.6-32NC, 5/16 LG

The two Screws are located half way between the bottom of the socket and the upper leg bracket.

I did not use Slotted Round Head Screws to attach the IDENTIFICATION PLATE, but used Drive Screws (drive rivets).

I believe the markings for the Identification Plate are in "JEEP" Bantam,Willys, Ford by Emile Becker on Page 230.
I have misplaced the original M-31C IDENTIFICATION PLATE from the M-31C I bought from L.NABHOLTZ . I left the excellent reproduction IDENTIFICATION PLATE by Garrick Smith blank. I have retired and stored the original M-31C away for the time being.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO

wmbrown
G-Private First Class
G-Private First Class
Posts: 14
Joined: Fri Feb 06, 2009 2:47 pm

Re: What do i stamp on a M31C pedestal mount data plate.

Post by wmbrown » Sun Jul 12, 2020 4:58 pm

Thank you for your guidance, much appreciated.
