my m10 ammunition trailer adventure!

Half-ton trailer series and larger, Wanted, For Sale(NO EBAY ITEMS), and Knowledge Base
User avatar
bigbadwolff
G-Master Sergeant
G-Master Sergeant
Posts: 115
Joined: Mon Oct 18, 2010 3:03 pm
Location:

Re: my m10 ammunition trailer adventure!

Post by bigbadwolff » Fri Apr 01, 2011 8:18 am

thanks for the reply. ill have to shoot on down to the hardware store and get some.

is there a way to figure out the usa #?
1944 Autocar M15A1 halftrack- (sold)
1944 Schlem Bros M10 ammunition trailer
1968 Chevy C10 Pickup
1970 Kaiser M818 5-Ton tractor- (sold)
1971 general products M35A2- (sold)
1995 CUCV-II clone- (sold)

1985 Wife <- 9/10/11
2010 Dachsund


User avatar
bigbadwolff
G-Master Sergeant
G-Master Sergeant
Posts: 115
Joined: Mon Oct 18, 2010 3:03 pm
Location:

Re: my m10 ammunition trailer adventure!

Post by bigbadwolff » Sun Apr 03, 2011 8:50 pm

I suppose I'll start with friday nights work 4/1/11

First I fixed the blob of paint stenciling

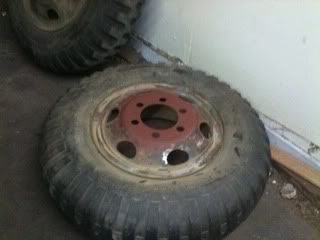

started cleaning up some wheels. im gonna have to find some combat wheels!


got out the mil-spec coating... hope it'll be ok since this is not a naval weapons system!


that will have to do for tonight. I will have sat and sunday up some time monday!

cheers!
1944 Autocar M15A1 halftrack- (sold)
1944 Schlem Bros M10 ammunition trailer
1968 Chevy C10 Pickup
1970 Kaiser M818 5-Ton tractor- (sold)
1971 general products M35A2- (sold)
1995 CUCV-II clone- (sold)

1985 Wife <- 9/10/11
2010 Dachsund

User avatar
bigbadwolff
G-Master Sergeant
G-Master Sergeant
Posts: 115
Joined: Mon Oct 18, 2010 3:03 pm
Location:

Re: my m10 ammunition trailer adventure!

Post by bigbadwolff » Sun Apr 03, 2011 8:52 pm

had to post this one real quick because it looks so good!

1944 Autocar M15A1 halftrack- (sold)
1944 Schlem Bros M10 ammunition trailer
1968 Chevy C10 Pickup
1970 Kaiser M818 5-Ton tractor- (sold)
1971 general products M35A2- (sold)
1995 CUCV-II clone- (sold)

1985 Wife <- 9/10/11
2010 Dachsund

User avatar
bigbadwolff
G-Master Sergeant
G-Master Sergeant
Posts: 115
Joined: Mon Oct 18, 2010 3:03 pm
Location:

Re: my m10 ammunition trailer adventure!

Post by bigbadwolff » Mon Apr 04, 2011 2:49 pm

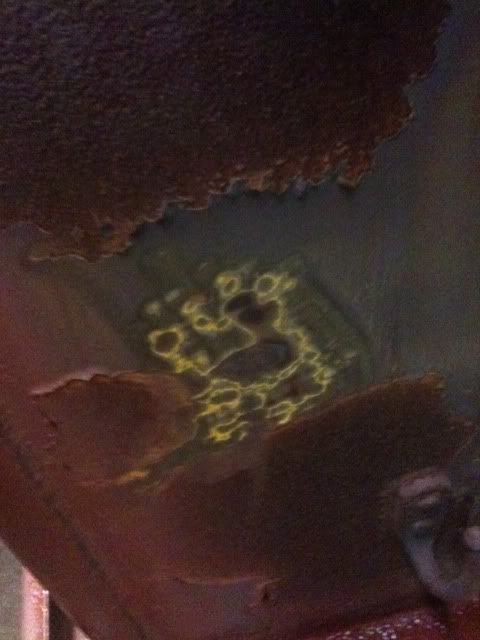

While I was sanding Sunday I found this spot of yellow. Would this had been a "bridge Plate" weight marking? it is on the front right of the body.


got her flipped over and started fabricating replacement patches for where the body was rusted through.

Here is a complete new corner

little tiny rail patch

big rail patch


some mud to even a few things out

fresh coat of primer


painted the data plate
1944 Autocar M15A1 halftrack- (sold)
1944 Schlem Bros M10 ammunition trailer
1968 Chevy C10 Pickup
1970 Kaiser M818 5-Ton tractor- (sold)
1971 general products M35A2- (sold)
1995 CUCV-II clone- (sold)

1985 Wife <- 9/10/11
2010 Dachsund

pintelhook11over
G-Major
G-Major
Posts: 870
Joined: Mon Feb 08, 2010 9:45 pm
Location: Southern California

Re: my m10 ammunition trailer adventure!

Post by pintelhook11over » Mon Apr 04, 2011 5:21 pm

Lookin" Good! I don't think there are enough frame cross members, It needs at least 3 or 4 more...just kidding! Before too long you'll be able to haul some heavy stuff! Oh, your old electric grinder is pretty cool too, it looks about the same age as the trailer. Keep the pictures coming!
1942 G7117 No. 389946
1945 G527 Serial no.9218
USN CM3 NMCB "4"
Cat Field SVC/GPS installer
Cat Main shop Mech

User avatar
bigbadwolff
G-Master Sergeant
G-Master Sergeant
Posts: 115
Joined: Mon Oct 18, 2010 3:03 pm
Location:

Re: my m10 ammunition trailer adventure!

Post by bigbadwolff » Mon Apr 04, 2011 6:09 pm

pintelhook11over wrote:Lookin" Good! I don't think there are enough frame cross members, It needs at least 3 or 4 more...just kidding! Before too long you'll be able to haul some heavy stuff! Oh, your old electric grinder is pretty cool too, it looks about the same age as the trailer. Keep the pictures coming!
LOL thanks! I asked my dad about that grinder. He said that he can remember my grandfather had that thing in the 50's and he's pretty sure grandad got it second hand from someone else! i will say ive gone through about 5-6 hand held angle grinders the past 10 years but that thing keeps on rolling. they just dont make things like they used to!!!
1944 Autocar M15A1 halftrack- (sold)
1944 Schlem Bros M10 ammunition trailer
1968 Chevy C10 Pickup
1970 Kaiser M818 5-Ton tractor- (sold)
1971 general products M35A2- (sold)
1995 CUCV-II clone- (sold)

1985 Wife <- 9/10/11
2010 Dachsund

User avatar
Tapper02
G-Captain
G-Captain
Posts: 778
Joined: Wed May 03, 2006 1:59 am
Location: San Diego, California
Contact:

Re: my m10 ammunition trailer adventure!

Post by Tapper02 » Tue Apr 05, 2011 7:50 am

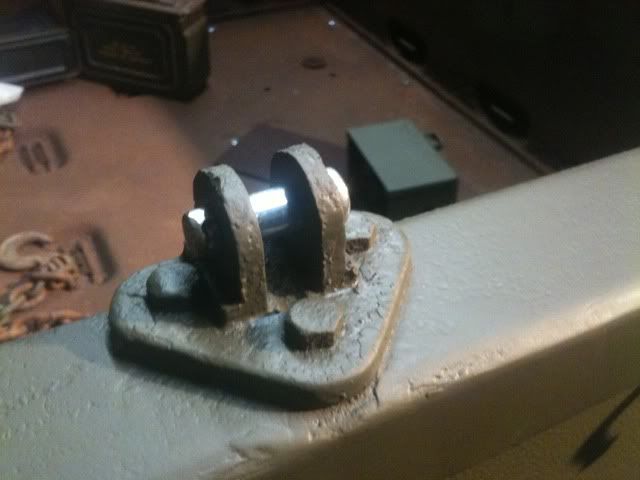

bigbadwolff wrote: found a hitch to fill the spot where the original is missing for the time being. hope to get a correct one in the future especially since only the top two bolt holes line up on this one. guess that means i wont be hauling any artillery behind it... lol


Here's a hitch that just popped up for sale:

http://www.g503.com/forums/viewtopic.php?f=51&t=181329" onclick="window.open(this.href);return false;

The trailer is looking good. I enjoy following any restoration as it progresses. Keep it up!

-Tom
1944 Autocar M3A1 halftrack
1944 Schelm Bros. M10 Ammunition Trailer

MVPA # 30507

User avatar
bigbadwolff
G-Master Sergeant
G-Master Sergeant
Posts: 115
Joined: Mon Oct 18, 2010 3:03 pm
Location:

Re: my m10 ammunition trailer adventure!

Post by bigbadwolff » Thu Apr 07, 2011 1:52 pm

well last night we let a cloud of olive drab fly out of the paint gun. i must say it looks good for a 67 year old trailerespecially with as much pitting that is in the metal.

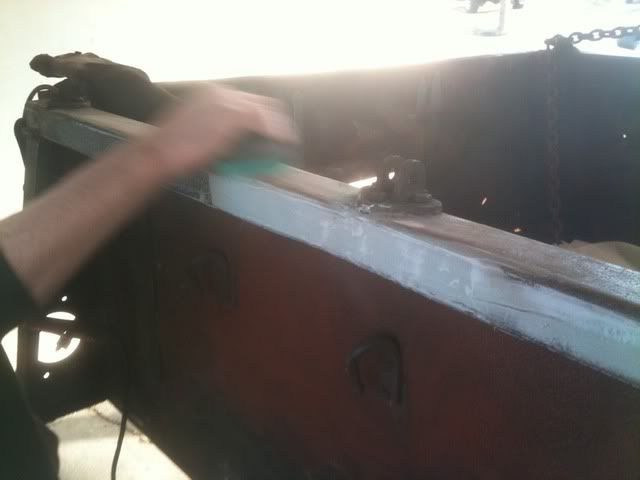

Scuffed it down


also did a few gerry cans while i had the paint out


mixed 4:1 ratio with xylene

1944 Autocar M15A1 halftrack- (sold)
1944 Schlem Bros M10 ammunition trailer
1968 Chevy C10 Pickup
1970 Kaiser M818 5-Ton tractor- (sold)
1971 general products M35A2- (sold)
1995 CUCV-II clone- (sold)

1985 Wife <- 9/10/11
2010 Dachsund

User avatar
bigbadwolff
G-Master Sergeant
G-Master Sergeant
Posts: 115
Joined: Mon Oct 18, 2010 3:03 pm
Location:

Re: my m10 ammunition trailer adventure!

Post by bigbadwolff » Thu Apr 07, 2011 2:01 pm

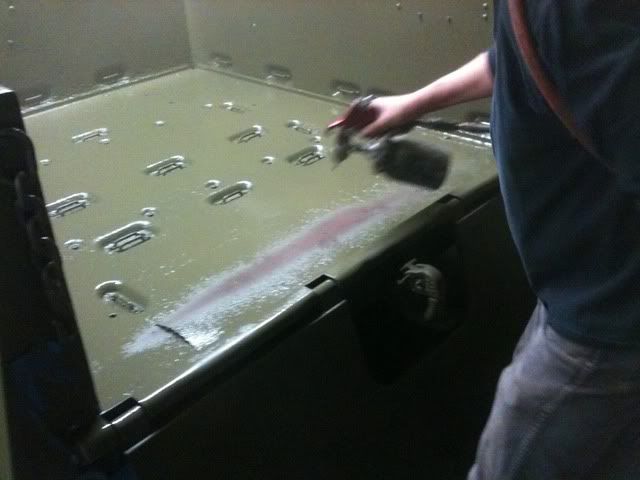

dad running a lil thinner through the gun to make sure it will spray ok.


here comes the color!!!




looking good

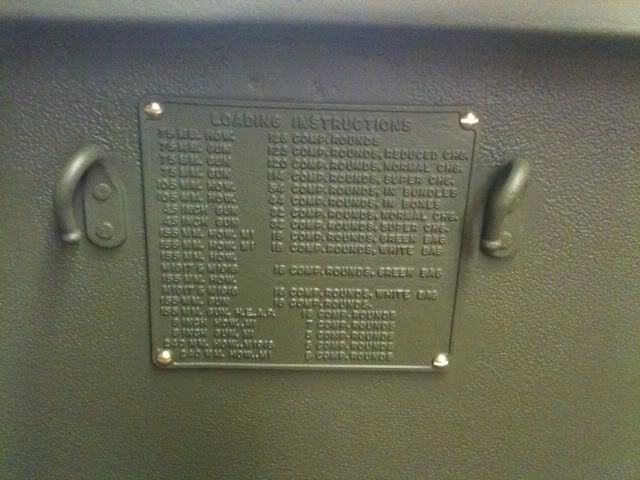

decided to put the loading plate on while everything was tacky so that it would seal itself to the tub


1944 Autocar M15A1 halftrack- (sold)
1944 Schlem Bros M10 ammunition trailer
1968 Chevy C10 Pickup
1970 Kaiser M818 5-Ton tractor- (sold)
1971 general products M35A2- (sold)
1995 CUCV-II clone- (sold)

1985 Wife <- 9/10/11
2010 Dachsund

User avatar
mkoloc
LTC, U.S. Army
LTC, U.S. Army
Posts: 835
Joined: Tue May 29, 2007 10:52 pm
Location: 1631 Bitter Creek Lane, Batavia OH 45103
Contact:

Re: my m10 ammunition trailer adventure!

Post by mkoloc » Fri Apr 08, 2011 4:54 am

Looking Good!

These trailers were really built .. have recovered 4 of them this year and have been more than impressed with how well they have held up. Frames, tubs, axles, brakes, bearings etc .... just as good as the day they were manufactured in-spite of sitting in the elements for 60+ years.

Pulled my restored M10 behind my HT this year at the Touch A Truck event .. the wow factor was very cool.
LTC Mark Koloc USA (RET)
MVPA Member # 31144
1631 Bitter Creek Lane
Batavia, OH 45103
Cell: 1.715.821.9426
mkoloc44@yahoo.com

User avatar
bigbadwolff
G-Master Sergeant
G-Master Sergeant
Posts: 115
Joined: Mon Oct 18, 2010 3:03 pm
Location:

Re: my m10 ammunition trailer adventure!

Post by bigbadwolff » Tue Apr 12, 2011 2:56 pm

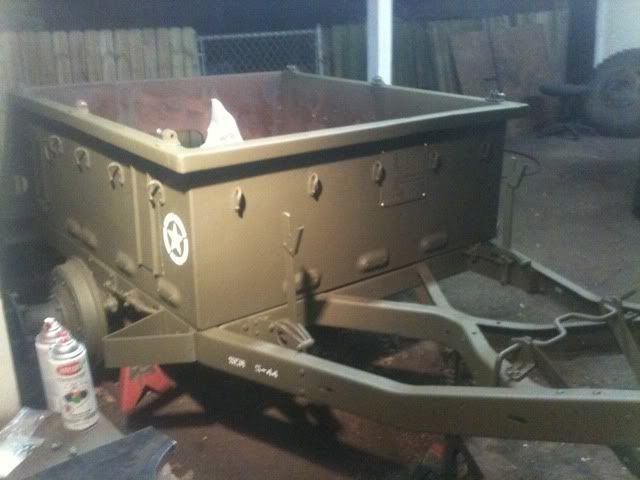

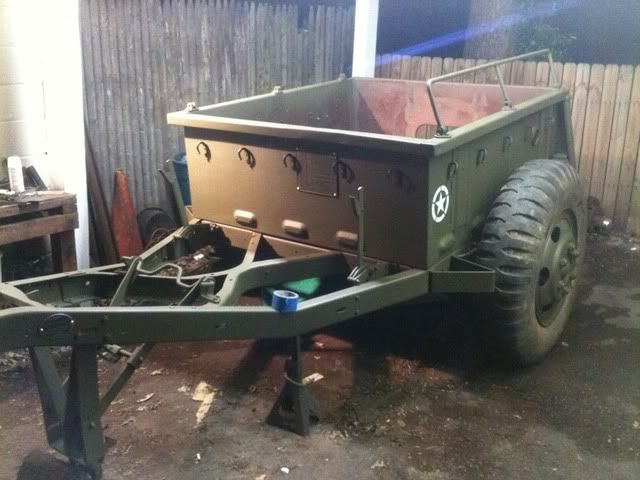

well Thursday night i had a few guys come over after our local mvpa meeting and help me lift the tub onto the frame.





some times you forget how much little tedious work is involved on a project... :roll: such as priming machine screws.


and cleaning threads for new lugnuts


decided to stencil the #'s of my grandfathers unit from WW2 3rd Army 257th field artillery battalion

1944 Autocar M15A1 halftrack- (sold)
1944 Schlem Bros M10 ammunition trailer
1968 Chevy C10 Pickup
1970 Kaiser M818 5-Ton tractor- (sold)
1971 general products M35A2- (sold)
1995 CUCV-II clone- (sold)

1985 Wife <- 9/10/11
2010 Dachsund

User avatar
bigbadwolff
G-Master Sergeant
G-Master Sergeant
Posts: 115
Joined: Mon Oct 18, 2010 3:03 pm
Location:

Re: my m10 ammunition trailer adventure!

Post by bigbadwolff » Tue Apr 12, 2011 3:05 pm

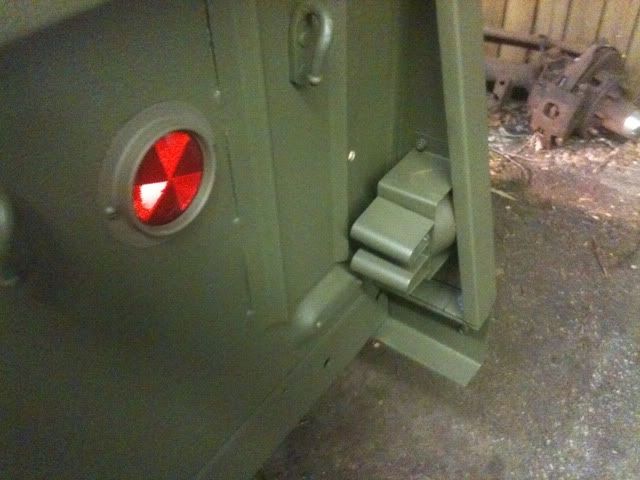

got the reflectors and lights in over the weekend.


couldn't find correct length pins so i had to take 3" pins and cut them down.


lots of work to get the wheels that nice.



new wiring harness waiting for its new home.

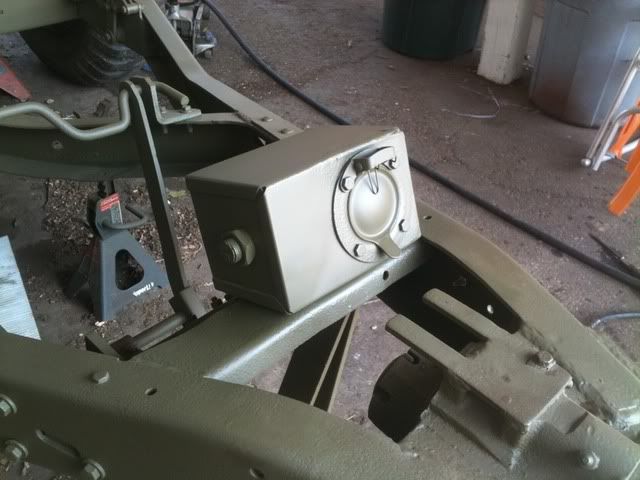

got the front cross member straightened and electrical box mounted. the box was pretty smashed and straightened up quite well.


finally got the wheels back on!!!

1944 Autocar M15A1 halftrack- (sold)
1944 Schlem Bros M10 ammunition trailer
1968 Chevy C10 Pickup
1970 Kaiser M818 5-Ton tractor- (sold)
1971 general products M35A2- (sold)
1995 CUCV-II clone- (sold)

1985 Wife <- 9/10/11
2010 Dachsund

User avatar
bigbadwolff
G-Master Sergeant
G-Master Sergeant
Posts: 115
Joined: Mon Oct 18, 2010 3:03 pm
Location:

Re: my m10 ammunition trailer adventure!

Post by bigbadwolff » Thu Apr 14, 2011 2:59 pm

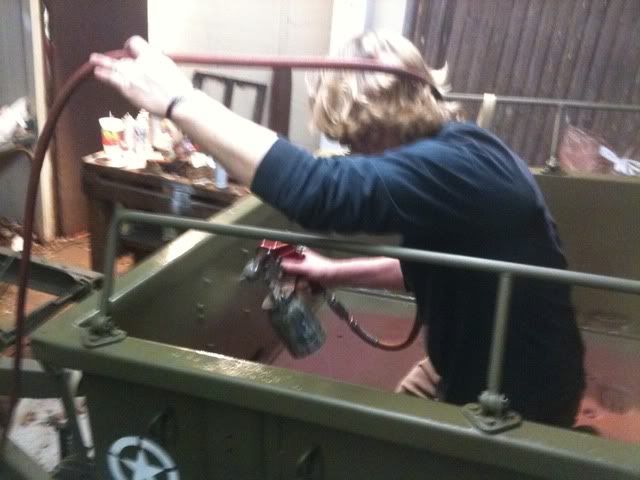

tuesday night we put the finishing touches on the trailer. started off with dad painting the inside of the bed



like new!

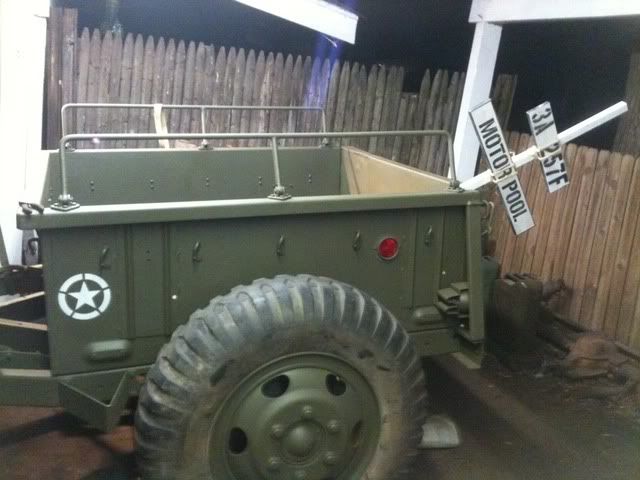

got all the little details on and i proclaim it done! well for now anyway...


started loading things in it for ww2 weekend at Jefferson Barracks, Saint Louis , Mo this weekend. will have pics from the event monday or tuesday.


1944 Autocar M15A1 halftrack- (sold)
1944 Schlem Bros M10 ammunition trailer
1968 Chevy C10 Pickup
1970 Kaiser M818 5-Ton tractor- (sold)
1971 general products M35A2- (sold)
1995 CUCV-II clone- (sold)

1985 Wife <- 9/10/11
2010 Dachsund

neil halliday
G-Master Sergeant
G-Master Sergeant
Posts: 112
Joined: Thu Sep 11, 2008 9:55 am
Location: north-east ohio

Re: my m10 ammunition trailer adventure!

Post by neil halliday » Fri Apr 15, 2011 9:24 am

Your m10 looks great. I'm trying to find one that's complete and unrestored for a reasonable price but, so far the ones I've found are too far away when you add shipping costs, etc. Did you get your wiring harness from Vintage wiring of Maine? Thanks, for posting all the photos too, it was fun to watch the restoration process. I guess I'll have to be content to keep working on my halftrack for now. Good luck at the show. Neil
evil men prevail when good men do nothing! 194? m2a1 white halftrack

User avatar
bigbadwolff
G-Master Sergeant
G-Master Sergeant
Posts: 115
Joined: Mon Oct 18, 2010 3:03 pm
Location:

Re: my m10 ammunition trailer adventure!

Post by bigbadwolff » Wed Apr 20, 2011 2:47 pm

i would try sending mkoloc a message on here he was able to find me a harness. thanks for the comments. the next project is a m15 halftrack.
1944 Autocar M15A1 halftrack- (sold)
1944 Schlem Bros M10 ammunition trailer
1968 Chevy C10 Pickup
1970 Kaiser M818 5-Ton tractor- (sold)
1971 general products M35A2- (sold)
1995 CUCV-II clone- (sold)

1985 Wife <- 9/10/11
2010 Dachsund
