1941 Chevy G-4112 restoration

Military Trucks 1/2 ton thru 2 ton, Wanted, For Sale (NO AUCTION or EBAY), and Knowledge Base
forestry4evr
G-Colonel
G-Colonel
Posts: 1603
Joined: Sat Mar 03, 2012 11:09 am
Location: Western North Carolina

Re: 1941 G-4112 restoration

Post by forestry4evr » Sun Jan 24, 2016 6:29 am

retro-roco wrote:That is an amazing photo! That could be any forest road in Europe, and brings the Bulge to mind... appropriate, given the weather back east.
Hey Kirk,

Perhaps this version looks a little more like the Ardennes region in January 1945.


Paul
1941 G4112 Chevrolet with Hercules dump bed
1942 G506 Chevrolet with Hercules dump bed

42cargo
G-Colonel
G-Colonel
Posts: 1685
Joined: Sat Feb 24, 2007 10:14 am
Location: Washington, DC

Re: 1941 G-4112 restoration

Post by 42cargo » Sun Jan 24, 2016 7:01 am

It does give you a firm appreciation for how hard the conditions were. I can't imagine spending weeks sleeping out in that type of weather, let alone being shelled and shot at.
G503 GPW Parts Wanted
Original F-marked bracket to hold battery in place and one J-bolt
Original F-marked front bumper

Ben Dover
Gee Addict
Posts: 44248
Joined: Sun Mar 02, 2008 2:37 pm
Location: Proving Ground

Re: 1941 G-4112 restoration

Post by Ben Dover » Sun Jan 24, 2016 7:06 am

Sleeping?????
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO

pintelhook11over
G-Major
G-Major
Posts: 844
Joined: Mon Feb 08, 2010 9:45 pm
Location: Southern California

Re: 1941 G-4112 restoration

Post by pintelhook11over » Tue Jan 10, 2017 11:25 pm

Hello, I was searching for steering box seals on the internet and ran across you pictures of your steering box.

Do you recall where you got that cork seal for the sector shaft on the steering box? (on page 13)
1942 G7117 No. 389946
1945 G527 Serial no.9218
USN CM3 NMCB "4"
Cat Field SVC/GPS installer
Cat Main shop Mech

User avatar
40 Chevy
G-First Lieutenant
G-First Lieutenant
Posts: 628
Joined: Sat Dec 23, 2006 4:57 pm
Location: Kent Island, Md.

Re: 1941 G-4112 restoration

Post by 40 Chevy » Wed Jan 11, 2017 4:50 am

Paul;

Your using 120 wt. oil???
Coastal oil Products in Pa., sell a 90 wt GL4 soft metal compatible gear oil, I use there product in my trucks and Redline MT-90 in the transfer case, Redline would get pricey in the tranny thou, as the big trucks take 3 gallons.

Great picture/

John G
1940 G4112
1942 G509 969A
1942 G116 series 2
1944 G116 series 5
1942 Sterling HC 165 tractor
1944 Autocar U7144T


forestry4evr
G-Colonel
G-Colonel
Posts: 1603
Joined: Sat Mar 03, 2012 11:09 am
Location: Western North Carolina

Re: 1941 Chevy G-4112 restoration

Post by forestry4evr » Sat Aug 05, 2017 5:49 am

It has been quite a while since I have posted on this build thread. My old 1941 tipper "Audra" just gets driven for the most part, she is a pretty reliable and durable machine. Not much work has been warranted or required other than routine maintenance. However, the hydraulic ram seals have been leaking so recently I decided to delve into replacing the packing on the ram and control valve. The process was relatively straight forward and reminded me of replacing the faucet packing on old house plumbing than anything else. The pump runs so smooth it is hard to hear it is engaged, pretty cool for 76 year old iron.

Quick method of ejecting malingering troops huh?
1941 G4112 Chevrolet with Hercules dump bed
1942 G506 Chevrolet with Hercules dump bed

Tonywan Kanobby
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 414
Joined: Sun Feb 24, 2013 4:25 pm
Location: Northern Cal.

Re: 1941 G-4112 restoration

Post by Tonywan Kanobby » Sat Aug 05, 2017 11:30 am

Always a pleasure to see her.

Tony

User avatar
retro-roco
G-Colonel
G-Colonel
Posts: 1943
Joined: Thu Mar 27, 2003 12:54 pm
Location: Bloomington, IL, USA

Re: 1941 G-4112 restoration

Post by retro-roco » Sat Aug 05, 2017 5:48 pm

Love that truck! What a beauty!!
Kirk Gustafson
359th Infantry Regt. 90th Div. WWII HRS

1942 Chevy G506 1-1/2 ton 4x4 Cargo
1943 Ben Hur water trailer

forestry4evr
G-Colonel
G-Colonel
Posts: 1603
Joined: Sat Mar 03, 2012 11:09 am
Location: Western North Carolina

Re: 1941 G-4112 restoration

Post by forestry4evr » Sun Aug 06, 2017 6:27 am

Thanks Tony and Kirk. Hope you both are doing well, and I hope you are enjoying your project trucks.

This morning is cool with a fantastic Carolina blue sky...think I will take a ride on one of my favorite circuits, over the river and through the woods.

Paul
1941 G4112 Chevrolet with Hercules dump bed
1942 G506 Chevrolet with Hercules dump bed

forestry4evr
G-Colonel
G-Colonel
Posts: 1603
Joined: Sat Mar 03, 2012 11:09 am
Location: Western North Carolina

Re: 1941 Chevy G-4112 restoration

Post by forestry4evr » Sun Apr 01, 2018 6:38 am

Hey all,

Winters grip has relaxed in the last few weeks, and a couple of good rains have washed the Chevy eating salt off of the roadways. Took Audra on a gruelling steep/curvy run with many switchbacks. She was up to the task but I had to go down to 2nd gear and keep the engine revving high enough to continue pulling the top third of the grade. Can you all imagine when these trucks were used as primary carriers and the they were traversing steep slopes fully loaded?! Gears will get you anywhere but necassarily fast, which is fine as I enjoy hearing the gears anyway.

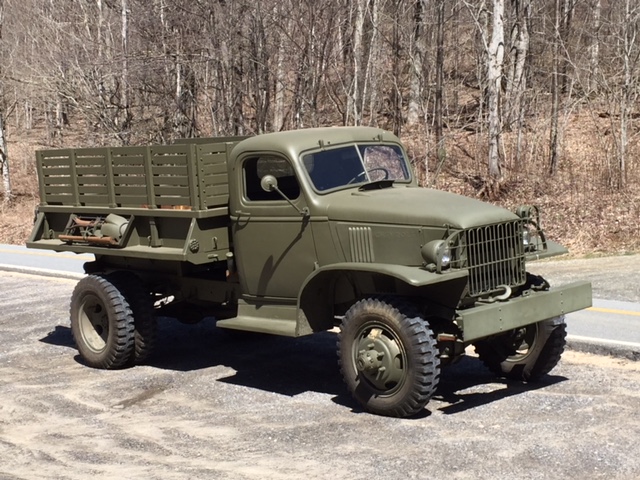

At the top of the gap, stopping to check brake temperature before making the descent.

Over the winter, I made a anti-freeze expansion tank to catch the occasional "puke" markings the truck makes when driven hard or in hot weather. There is a true GM produced expansion tank for these trucks, but it is quite rare and expensive when they do appear. Instead, I decided to make a collection device that could have been made from local items by an idle mechanic/fabricator back in the WW2 wartime period somewhere on the Alcan Highway or in Europe.

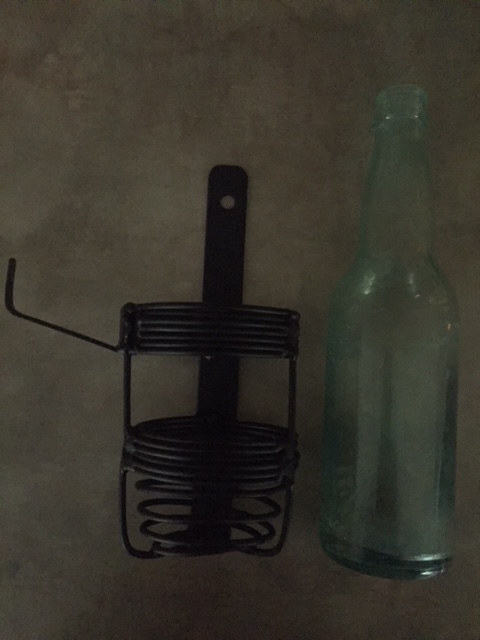

Process began with sourcing an appropriate era bottle. This 1939 12 ounce beer bottle was a good fit. The metal bracket was constructed with common 1/8 inch wire coiled around a spray paint can and then welded. The tabs were random flat stock items that could have been found in any shop.

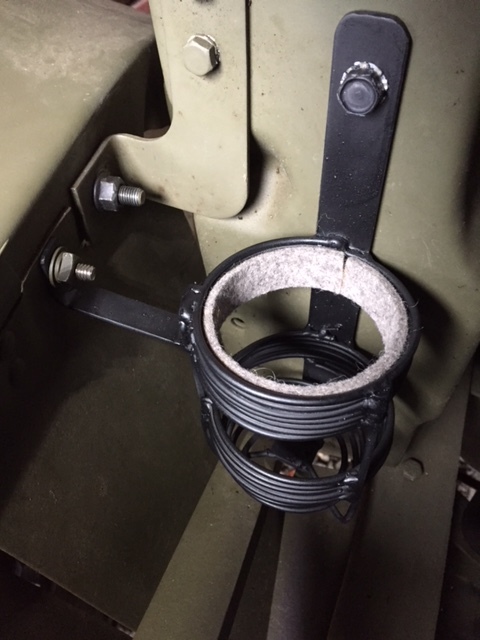

Bracket was installed using existing holes or fastener mounting points. No alterations were made to the truck. A little felt glued to the bracket rim eliminates abrasion/rattling.

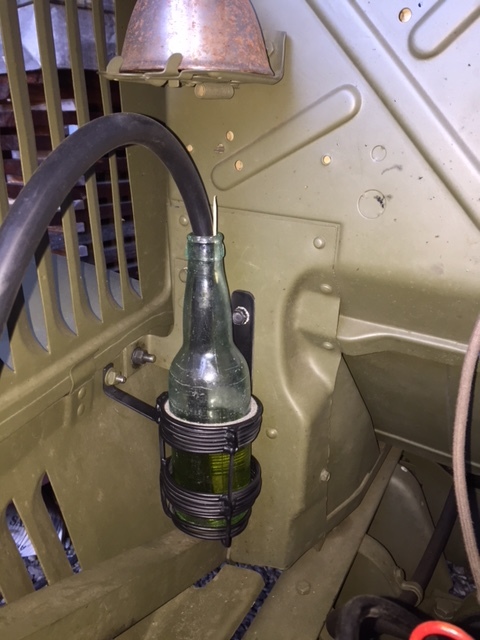

Here is my invention after the long drive. It looks like about half of the bottle is filled so hopefully it can catch the total expansion volume range.

Yeah I know I am writing about an alteration to an otherwise quite original truck, but this one is perfectly harmless as nothing on the truck is altered and it solves a "drippage" issue of expanded anti-freeze. So far I have noticed that non-automotive type people often focus on the bottle and start asking questions as I suppose it looks out of place. The attention is good as it opens the door to talk about history to someone that may not have great interest...yet. Anyway, I had some fun and my "bubbafication" seems to be solving those sometimes embarrassing moments when your truck marks its spot.

Hope you all are enjoying the hobby and are getting out soon.

Paul
1941 G4112 Chevrolet with Hercules dump bed
1942 G506 Chevrolet with Hercules dump bed

kelley
G-Colonel
G-Colonel
Posts: 1367
Joined: Tue Aug 28, 2012 5:17 pm
Location: Massachusetts (The Pay state)

Re: 1941 Chevy G-4112 restoration

Post by kelley » Sun Apr 01, 2018 4:19 pm

Cleaver repair to a nice problem to have. I never thought to keep my open beer under the hood.
Kelley

42cargo
G-Colonel
G-Colonel
Posts: 1685
Joined: Sat Feb 24, 2007 10:14 am
Location: Washington, DC

Re: 1941 Chevy G-4112 restoration

Post by 42cargo » Tue Apr 03, 2018 8:37 am

Nice field mod, Paul.
G503 GPW Parts Wanted
Original F-marked bracket to hold battery in place and one J-bolt
Original F-marked front bumper

D.R.H.
G-Brigadier General
G-Brigadier General
Posts: 2441
Joined: Sat Jun 05, 2010 3:51 pm
Location: Evergreen State

Re: 1941 Chevy G-4112 restoration

Post by D.R.H. » Wed Apr 04, 2018 12:48 am

Hi Paul, I like your field mod. it looks really good. I made a surge tank for my first Chevy using a one gallon lawn edger fuel tank. I plumbed the overflow hose to a petcock at the bottom of the tank and kept it half full of coolant. As the temp. in the engine rose, the coolant would expand and flow into the tank. When it cooled and contracted, the coolant would be drawn back into the radiator. Before the overflow tank, coolant loss. After installation, ZERO coolant loss.
I still like looking at the photo of your truck coming up the road in snowfall. It's just great!! :)
In Loving Memoriam: George R. Hancock. 20 Mar. 1938 - 11 Jan. 2017. U.S.A.F. 1956 - 1962. R.I.P. Dad.

forestry4evr
G-Colonel
G-Colonel
Posts: 1603
Joined: Sat Mar 03, 2012 11:09 am
Location: Western North Carolina

Re: 1941 Chevy G-4112 restoration

Post by forestry4evr » Sun Apr 08, 2018 4:35 am

kelley wrote:
Sun Apr 01, 2018 4:19 pm
I never thought to keep my open beer under the hood.
"Honest officer, I wasnt drinking and driving". Its kind of hot in the engine compartment, I guess my "cup holder" would only be good for porters or ales...hot lagers would taste rather skunky.

Thanks to those that replied, the hobby is more fun with some interaction versus the hundreds of silent unidentified lurkers.

Hope you all have some time to play with your trucks.

Paul
1941 G4112 Chevrolet with Hercules dump bed
1942 G506 Chevrolet with Hercules dump bed

forestry4evr
G-Colonel
G-Colonel
Posts: 1603
Joined: Sat Mar 03, 2012 11:09 am
Location: Western North Carolina

Re: 1941 Chevy G-4112 restoration

Post by forestry4evr » Sun May 13, 2018 4:28 am

Took Audra out for a nice 50 mile spring drive yesterday. Other than some guy at the gas station saying "nice Dodge", everything was good. Looked at my log book and realized that I have already racked up nearly 3,000 miles, time flies when your having fun.
1941 G4112 Chevrolet with Hercules dump bed
1942 G506 Chevrolet with Hercules dump bed
