Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by pintelhook11over » Mon Apr 16, 2018 8:47 pm

You Betcha!!!

How goes your projects Gentry?
1942 G7117 No. 389946
1945 G527 Serial no.9218
USN CM3 NMCB "4"
Cat Field SVC/GPS installer
Cat Main shop Mech

pintelhook11over
G-Major
G-Major
Posts: 831
Joined: Mon Feb 08, 2010 9:45 pm
Location: Southern California

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by pintelhook11over » Mon May 21, 2018 9:43 pm

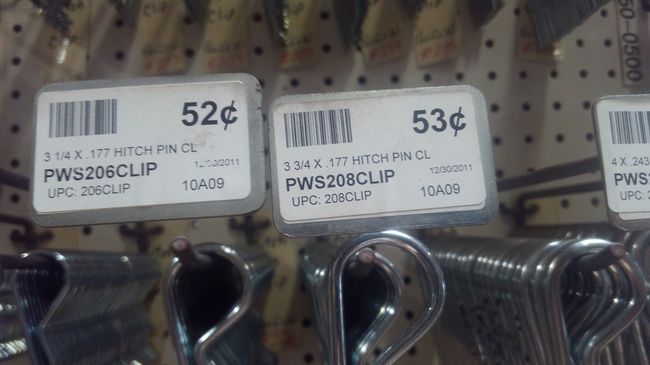

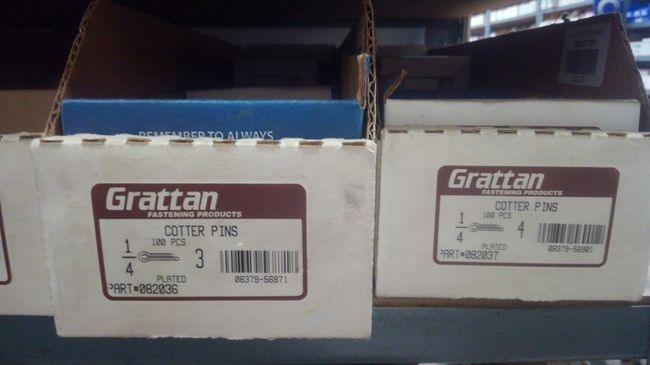

Here are a couple pic's of the Pintle Hook re-chaining. I got to poking around on the internet about Pintle lock pins and found some of the guys here had a thread on CCKW pins. I ended up selecting a 3 inch x 1/4 inch (7.62 cm x 6.35 mm) cotter pin. got the other 2 styles to see which one seemed right and I went with the short cotter with a slight opening of the tip to provide tension in the bore.

Here is the reference:
viewtopic.php?t=281492

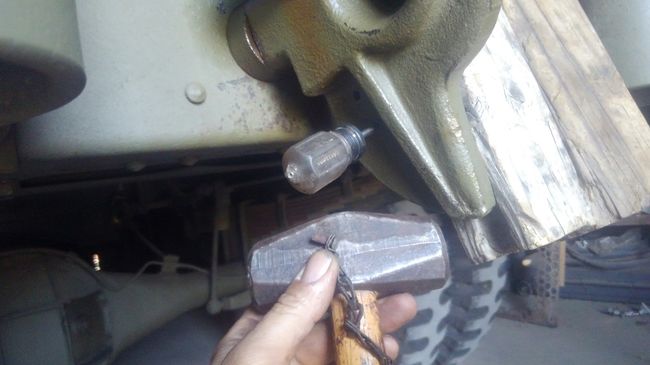

I had remnants of the old chain sill on my Pintle, so I smacked out the old splined rivet and installed the new chain from a local hardware store and smacked the old rivet back in. I used 1 foot (.304 M) of chain and it seems to be a good length. It still seems easy to loose the cotter pin off the chain tho...

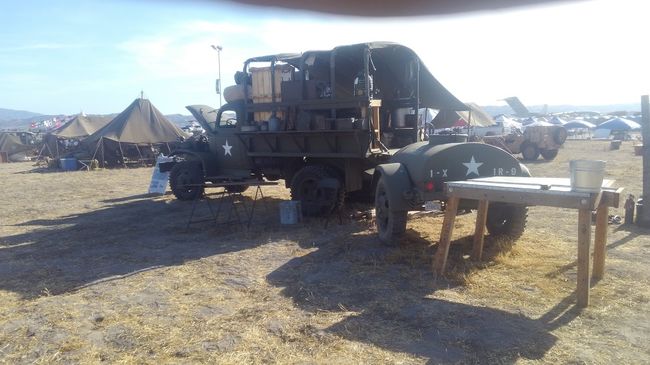

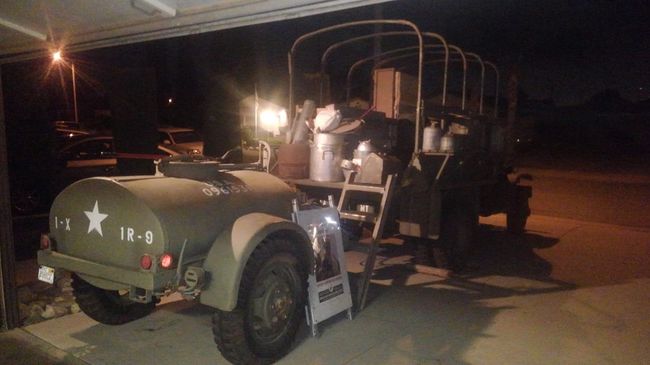

I got the old War Horse Loaded up and rolled out at O'dark thirty to the Chino air show and that was the first time I had pulled a "Rated Load" of 3500 Lbs (1587 Kilos), not to mention the gear I had in the truck which was about 1000-ish pounds (453 Kilos). I had to actually take off in 1st gear!!! The set up worked fine and no issues were observed.

I got back on Sunday to re-stow the gear at home and reached down and felt the rear axle hub flanges and they were warm to the touch, maybe 100-ish degrees F (37 degrees C) I thought to my self, "Wow, I was actually working the old Girl!!!"

She took it like a Champ!

1942 G7117 No. 389946
1945 G527 Serial no.9218
USN CM3 NMCB "4"
Cat Field SVC/GPS installer
Cat Main shop Mech

forestry4evr
G-Colonel
G-Colonel
Posts: 1602
Joined: Sat Mar 03, 2012 11:09 am
Location: Western North Carolina

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by forestry4evr » Mon May 28, 2018 5:39 am

Great to see you and your Chevy getting out. How was the top end speed and torque while pulling a load? Any long steep hills?
1941 G4112 Chevrolet with Hercules dump bed
1942 G506 Chevrolet with Hercules dump bed

User avatar
tfscobie
G-Sergeant Major
G-Sergeant Major
Posts: 165
Joined: Wed Jun 18, 2003 8:36 am
Location: St. Paul, MN

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by tfscobie » Mon May 28, 2018 8:05 pm

If it’s anything like my G506, you can never be in a hurry.
T.F. Scobie
B/1/117/30

pintelhook11over
G-Major
G-Major
Posts: 831
Joined: Mon Feb 08, 2010 9:45 pm
Location: Southern California

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by pintelhook11over » Fri Jun 01, 2018 7:51 pm

It is mostly "flat-ish" around this neck of the woods.

It was a short 8 miles to the air field and back, I traveled to/from with water, I didn't drain the water at the airfield. The elevation change is only 100 feet in that distance from the Chino air field to my house. My house is the higher elevation.

I was rollin' about 30 Mph-ish (48 Kph) @ 1/2 -3/4 throttle through surface streets, I'll have to get into the throttle more next time I have her loaded up. I didn't have anybody riding shotgun, so there was nobody to show off for. Torque and shifting felt normal other than having to short shift from 1st to 2nd gears.

Rapid movement is not one of the G506's better attributes... :lol:
1942 G7117 No. 389946
1945 G527 Serial no.9218
USN CM3 NMCB "4"
Cat Field SVC/GPS installer
Cat Main shop Mech


Tonywan Kanobby
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 405
Joined: Sun Feb 24, 2013 4:25 pm
Location: Northern Cal.

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by Tonywan Kanobby » Sat Jun 02, 2018 8:30 am

Rapid movement is not one of the G506's better attributes... :lol: ??

Say what ?!? I suggest a review of my vid in the suffix below. Must be touching 37-38 MPH ! :lol: Just gotta press harder !

Really dig your setup there, btw.

Tony

kelley
G-Colonel
G-Colonel
Posts: 1359
Joined: Tue Aug 28, 2012 5:17 pm
Location: Massachusetts (The Pay state)

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by kelley » Sun Jun 03, 2018 6:10 am

Hey Cody,
Great looking camper, are those troop seats mounted on the outside of the body?
Kelley

pintelhook11over
G-Major
G-Major
Posts: 831
Joined: Mon Feb 08, 2010 9:45 pm
Location: Southern California

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by pintelhook11over » Mon Jun 04, 2018 7:32 pm

Thanks, She is amazing to drive...it is kinda surreal to me to drive an old War Horse like that after wrenching on it for so long.

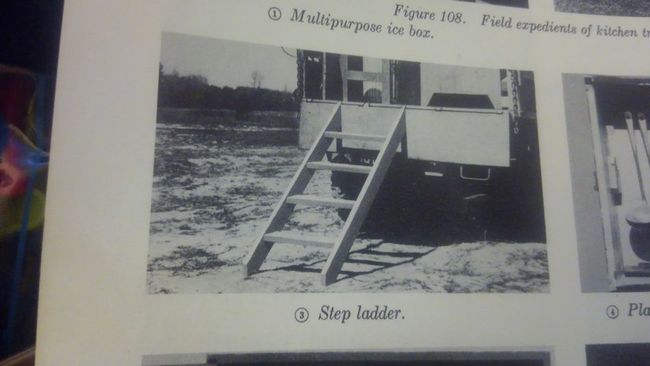

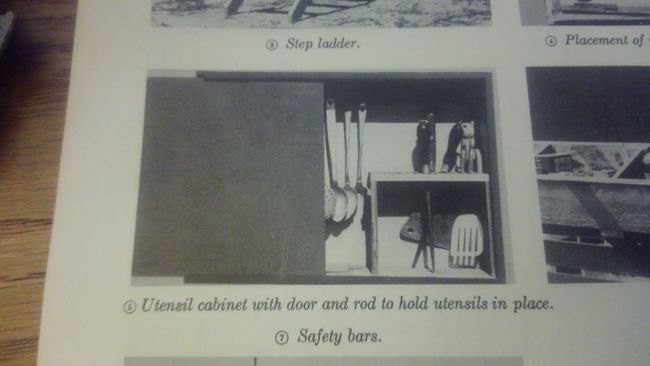

Yes, If you look at old WWII and pre-war documents/photos there are examples of them flipping the troop seats "Outboard" to use them as shelving. It is done mostly with 2 1/2 ton trucks, but it does say 1 1/2 truck too.

It works great! The seat legs rest on the outside of the bed running board, it is nice because you can stand on it too, but the rear most leg area is a bit flexy because the rear leg wont rest because of the diagonal brace on the rear of the bed...notice the big 26 inch door stars, the book is dated 1946.

Check these out

1942 G7117 No. 389946
1945 G527 Serial no.9218
USN CM3 NMCB "4"
Cat Field SVC/GPS installer
Cat Main shop Mech

pintelhook11over
G-Major
G-Major
Posts: 831
Joined: Mon Feb 08, 2010 9:45 pm
Location: Southern California

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by pintelhook11over » Thu Aug 09, 2018 10:07 pm

Here is some motivational film for those with projects pending.

Still trying to learn the use of my new film equipment, Never did much filming. The new filming is better that using a cell phone, a lot less wind noise and vibration, still need to put a wind sock on the microphone. Gonna have to document some off road operation for reference and training.

I sure do like driving with the windshield up, "G.I." air conditioning, 20 degrees cooler at 20+ MPH!

https://www.youtube.com/watch?v=lEqbhYIZ2D0
https://www.youtube.com/watch?v=sY8r4Eh3OJM
1942 G7117 No. 389946
1945 G527 Serial no.9218
USN CM3 NMCB "4"
Cat Field SVC/GPS installer
Cat Main shop Mech

pintelhook11over
G-Major
G-Major
Posts: 831
Joined: Mon Feb 08, 2010 9:45 pm
Location: Southern California

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by pintelhook11over » Thu Aug 09, 2018 10:14 pm

Tonywan Kanobby, that G7105 Carry-All was Zooming in the film! Outstanding!!!
1942 G7117 No. 389946
1945 G527 Serial no.9218
USN CM3 NMCB "4"
Cat Field SVC/GPS installer
Cat Main shop Mech

D.R.H.
G-Brigadier General
G-Brigadier General
Posts: 2416
Joined: Sat Jun 05, 2010 3:51 pm
Location: Evergreen State

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by D.R.H. » Fri Aug 10, 2018 5:28 pm

Great videos Cody, thanks for the upload. Hey, I noticed something about your truck because of them. You should have a scabbard on the port side of your dash, there is a hole there just to the right of your glove box for the mounting bolt. :o
In Loving Memoriam: George R. Hancock. 20 Mar. 1938 - 11 Jan. 2017. U.S.A.F. 1956 - 1962. R.I.P. Dad.

pintelhook11over
G-Major
G-Major
Posts: 831
Joined: Mon Feb 08, 2010 9:45 pm
Location: Southern California

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by pintelhook11over » Fri Aug 10, 2018 7:10 pm

Thats affirmative, but I need to make or find the little bracket that goes to the end of the M1 rifle holder. Plus I need to find a rifle holder to put on the starboard side.
1942 G7117 No. 389946
1945 G527 Serial no.9218
USN CM3 NMCB "4"
Cat Field SVC/GPS installer
Cat Main shop Mech

D.R.H.
G-Brigadier General
G-Brigadier General
Posts: 2416
Joined: Sat Jun 05, 2010 3:51 pm
Location: Evergreen State

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by D.R.H. » Fri Aug 10, 2018 8:21 pm

I have the foot bracket, only one though. It is very simple to make. I was thinking about having a shop build some, then offer them up on here on the "G". What do you think?. Finding a good scabbard shouldn't be too hard, finding one at the right price may be the challenge though.
In Loving Memoriam: George R. Hancock. 20 Mar. 1938 - 11 Jan. 2017. U.S.A.F. 1956 - 1962. R.I.P. Dad.

User avatar
tfscobie
G-Sergeant Major
G-Sergeant Major
Posts: 165
Joined: Wed Jun 18, 2003 8:36 am
Location: St. Paul, MN

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by tfscobie » Sat Aug 11, 2018 1:00 pm

Does anyone have any good close-up photos of inside cab rifle scabbard attachment?
T.F. Scobie
B/1/117/30

User avatar
retro-roco
G-Colonel
G-Colonel
Posts: 1926
Joined: Thu Mar 27, 2003 12:54 pm
Location: Bloomington, IL, USA

Re: SNL G506, Truck 1.5 Ton 4x4, unit 389946, 1 ea.

Post by retro-roco » Sat Aug 11, 2018 1:18 pm

Kirk Gustafson
359th Infantry Regt. 90th Div. WWII HRS

1942 Chevy G506 1-1/2 ton 4x4 Cargo
1943 Ben Hur water trailer
