Half-track seat backs - dimensions?

Tracked, Halftrack, etc... Military Vehicles, Wanted, For Sale (NO AUCTION or EBAY), and Knowledge Base

Moderator: Kevin Lockwood

Post Reply
Thundercat97
G-Second Lieutenant
G-Second Lieutenant
Posts: 596
Joined: Thu Sep 11, 2003 1:20 pm
Location: Coopersburg, PA

Half-track seat backs - dimensions?

Post by Thundercat97 » Thu Oct 01, 2009 11:00 am

Guys,

I have a M3 Half-track that I need to install all the seat backs (the plywood canvas covered ones) but I need some help with measurements, etc

1. What is the dimension of the plywood used for the back rest on the Driver and Passenger seats? Plywood thickness?
2. What is the dimension of the plywood used for the back rest that attaches to the fuel tank covers? Plywood thickness?
3. What is the dimension of the plywood used for the back rest that attaches to the upper troop seat back rest (behind the 3 man troop seat lid)? Plywood thickness?

Also, any photos, etc... would be appreciated. please email me at rs_ross@hotmail.com

Thanks
Rob

41 WLA Type II
42 Open Cab CCKW 353
43 Diamond T M3 Half-Track
57mm M1A2 Anti Tank Gun
1 Ton Ben Hur Trailer


HALFWITT
G-Sergeant Major
G-Sergeant Major
Posts: 152
Joined: Mon Aug 04, 2008 7:13 pm
Location: INDIANA

Re: Half-track seat backs - dimensions?

Post by HALFWITT » Thu Oct 01, 2009 4:09 pm

THUNDERCAT97

I CAN GET THE DIMENSION FOR THE SEAT BACKS WHEN I VISIT MY HT TOMORROW.WE HAD METAL BACKS WITH TURNED UP AND WELDED EDGES MADE AT A LOCAL METAL SHOP. I THINK THEY CHARGED ABOUT $60 EACH FOR THEM. THE PLYWOOD WAS 1/4" CUT TO FIT INSIDE THE BACK PLATES WITH 1/4" CLEARANCE FOR THE CANVAS TO ROLL OVER THE EDGE.BOLTS FROM THE INSIDE OF THE PLYWOOD THROUGH THE METAL PLATES TO MATCH THE HOLES IN THE SEAT BACK UPRIGHTS. I WILL GET MEASURMENTS AND POST THEM LATER TOMORROW,MAYBE SOME PICTURES IF POSSIBLE.
WE COPIED THIS FROM AN OLD RUSTY SEAT.
HOPE THIS HELPS
HALFWITT

Thundercat97
G-Second Lieutenant
G-Second Lieutenant
Posts: 596
Joined: Thu Sep 11, 2003 1:20 pm
Location: Coopersburg, PA

Re: Half-track seat backs - dimensions?

Post by Thundercat97 » Mon Oct 05, 2009 5:16 am

Thanks, much appreciated.
Rob

41 WLA Type II
42 Open Cab CCKW 353
43 Diamond T M3 Half-Track
57mm M1A2 Anti Tank Gun
1 Ton Ben Hur Trailer

HALFWITT
G-Sergeant Major
G-Sergeant Major
Posts: 152
Joined: Mon Aug 04, 2008 7:13 pm
Location: INDIANA

Re: Half-track seat backs - dimensions?

Post by HALFWITT » Mon Oct 05, 2009 1:34 pm

THUNDERCAT 97
THE PLYWOOD BACK FOR THE M-3 FRONT SEAT BACK MEASURES 13 9/16" X 15 1/2". THE BOTOM BOLT HOLES ARE 3" UP FROM THE BOTTOM AND 1 1/2" FROM THE SIDES. THE TOP HOLES ARE 3 11/16 DOWN FROM THE TOP AND 1 1/2 " FROM THE SIDE. WE REDUCED ALL SIDES BY 1/4" TO ALLOW CLEARENCE FOR THE CANVAS WHEN INSTALLED IN THE METAL BACKS. IF YOU DON'T USE THE METAL THAT WOULDN'T BE NESSARY. IF YOU NEED THE METAL BACKS I CAN GET THEM MADE FOR YOU.
I DON'T HAVE THE MEASURMENTS FOR THE BACK RESTS HANDY, THEY ARE IN THE TRUCK. I'LL GET THEM FOR YOU NEXT TIME I'M THERE. THEY WERE TAKEN FROM A M-3 IN THE PATTOM MUSEUM A FEW WEEKS AGO. MANY THANKS TO THE MUSEUM FOR THEIR HELP!
HALFWITT

Desertdog
G-First Sergeant
G-First Sergeant
Posts: 147
Joined: Mon May 07, 2007 1:52 pm
Location: Rockhampton, Gloucestershire ,UK

Re: Half-track seat backs - dimensions?

Post by Desertdog » Tue Oct 06, 2009 6:07 pm

Hi TC97,
here are the sizes of the seat backs we make for the Halftrack,
front single size 13 1/2" x 16"
rear double 34" x 10"
rear triple 52" x 10"

We have sold quite a few sets and have had no problems,we also make up the cushions to original pattern with the stencil markings on as found on my original M3 HT .

I will try and post some pics tomorrow of some I am making at the moment for customers on the continent.

Jim.
44 Ford GPW
42 Diamond T 968
44 Mack NO2
42 White M3 Halftrack
42 M4A4 Sherman
44 M4 High Speed Tractor
43 Caterpillar D4 2T
43 Fruehauf 8 ton Engineers trailer
43 M9 Rogers trailer
41 International TD18 dozer
41 GMC352 hard cab
4? M10 Ammunition Trailer

"A Sherman can give you a very nice.......Edge"

Thundercat97
G-Second Lieutenant
G-Second Lieutenant
Posts: 596
Joined: Thu Sep 11, 2003 1:20 pm
Location: Coopersburg, PA

Re: Half-track seat backs - dimensions?

Post by Thundercat97 » Wed Oct 07, 2009 3:18 am

Thanks Jim, I look forward to seeing them
Rob

41 WLA Type II
42 Open Cab CCKW 353
43 Diamond T M3 Half-Track
57mm M1A2 Anti Tank Gun
1 Ton Ben Hur Trailer

Desertdog
G-First Sergeant
G-First Sergeant
Posts: 147
Joined: Mon May 07, 2007 1:52 pm
Location: Rockhampton, Gloucestershire ,UK

Re: Half-track seat backs - dimensions?

Post by Desertdog » Thu Oct 15, 2009 5:32 pm

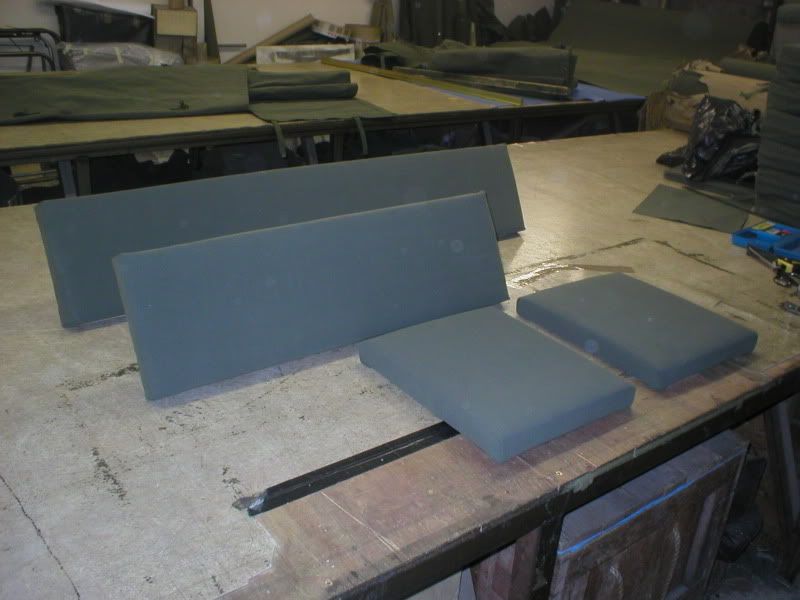

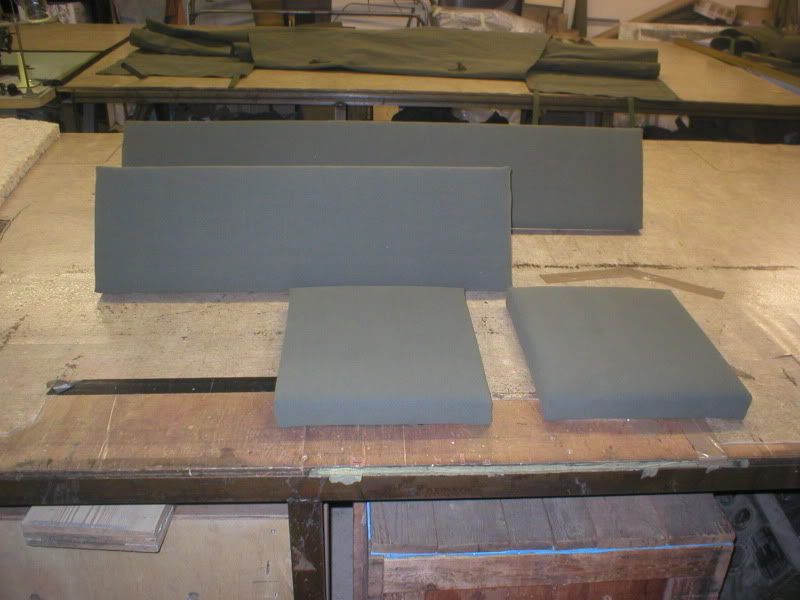

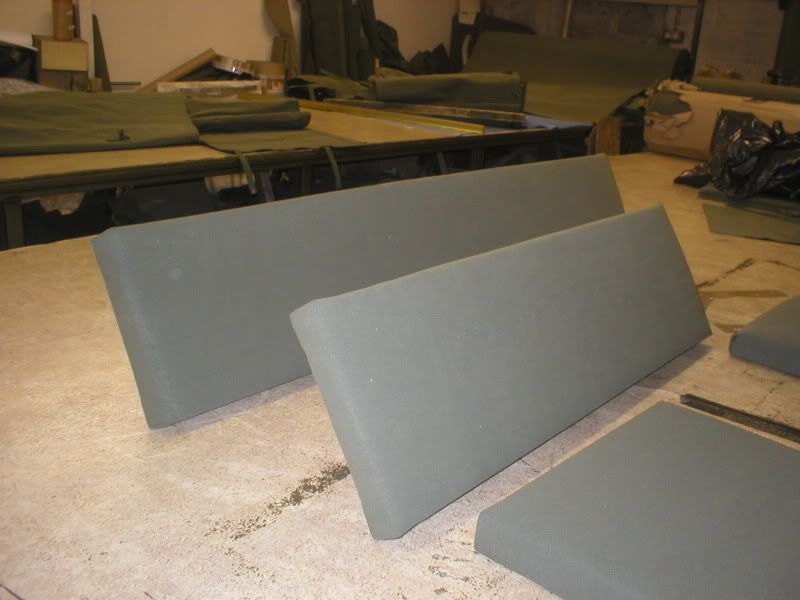

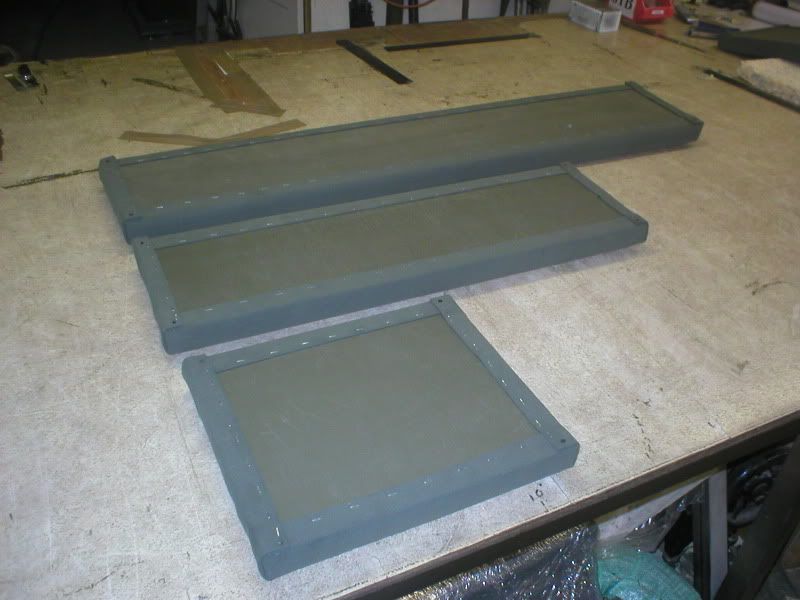

Hi TC, sorry for the delay in posting the pictures of the HT seat backrests, the pictures dont do the seats justice sat on my work bench. They are actually for Willy63 who is a G member so maybe he will take some pictures of them in his M3A1 when they are fitted.





Jim.
44 Ford GPW
42 Diamond T 968
44 Mack NO2
42 White M3 Halftrack
42 M4A4 Sherman
44 M4 High Speed Tractor
43 Caterpillar D4 2T
43 Fruehauf 8 ton Engineers trailer
43 M9 Rogers trailer
41 International TD18 dozer
41 GMC352 hard cab
4? M10 Ammunition Trailer

"A Sherman can give you a very nice.......Edge"

Desertdog
G-First Sergeant
G-First Sergeant
Posts: 147
Joined: Mon May 07, 2007 1:52 pm
Location: Rockhampton, Gloucestershire ,UK

Re: Half-track seat backs - dimensions?

Post by Desertdog » Thu Oct 15, 2009 5:48 pm

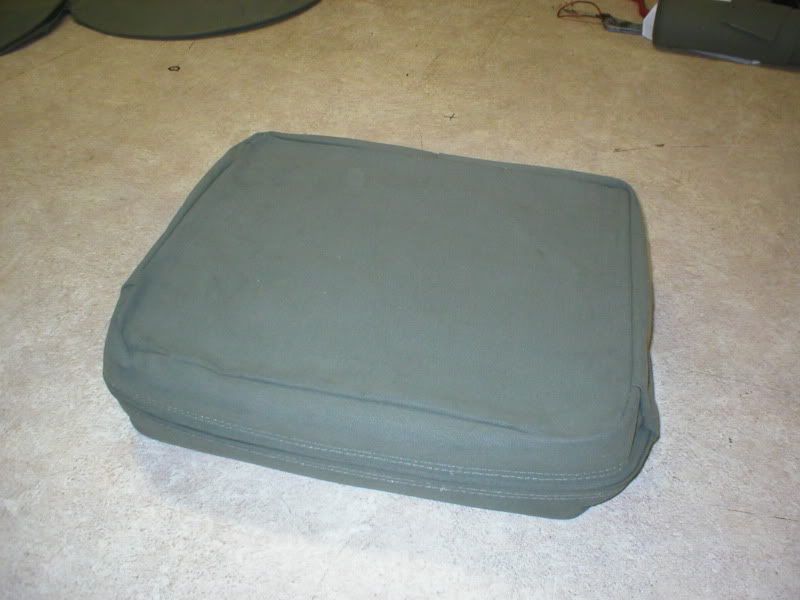

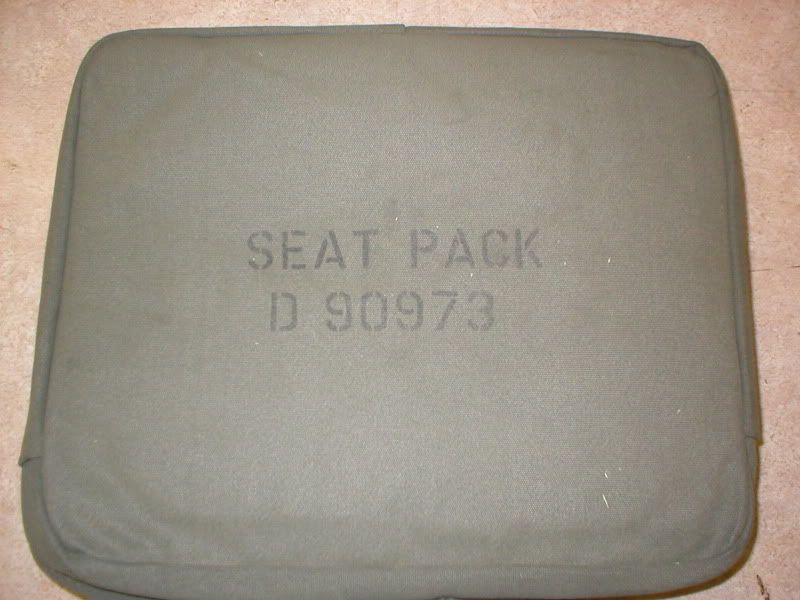

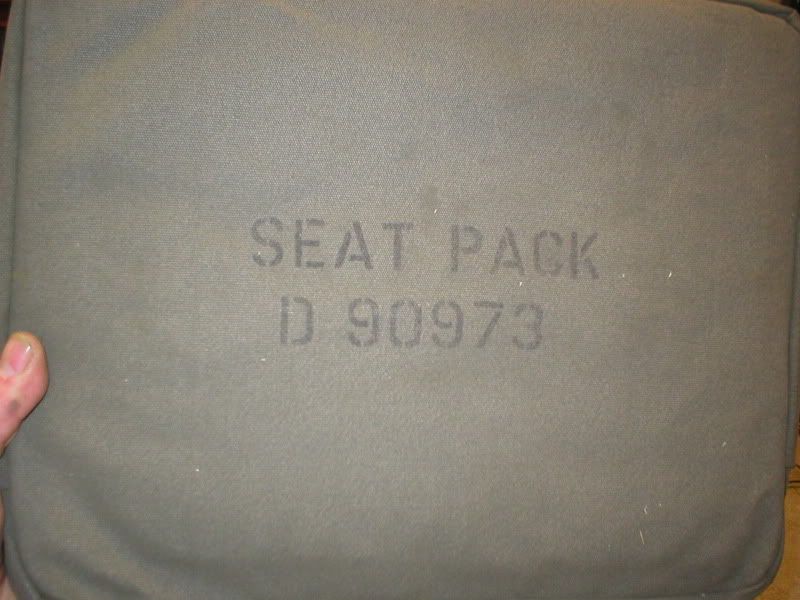

Here is a couple of pics of the HT cushions.
