64 CJ3B restoration
I have purchased a 1964 cj3b from blackdog and starting to do a complete restoration on it. The jeep belonged to the army and the markings represent that it belonged to a transportation motor pool, what unit it was has not yet been determined. I will keep pictures coming as I progress. If you have any knowledge regarding what unit it may of belonged to I will appreciate it and any other comments.
Thank you,
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
-
- G-Lieutenant General
- Posts: 6670
- Joined: Fri Feb 23, 2007 12:26 pm
- Location: Northwestern Wisconsin
- Contact:
Re: 64 CJ3B restoration
The military version of the CJ3B was the M606. Both regular civvy CJ3B's and M606's found their way into regular military service. Our web site addresses issues specific to the post WWII Willys and Kaiser built military jeeps. You are welcome to visit us and explore what we have on the M606.
http://www.willysmjeeps.com" onclick="window.open(this.href);return false;

M606

M606 spec sheet
Full size photo at: http://img.mypicgallery.com/m606series/m606c.jpg" onclick="window.open(this.href);return false;
http://www.willysmjeeps.com" onclick="window.open(this.href);return false;

M606

M606 spec sheet
Full size photo at: http://img.mypicgallery.com/m606series/m606c.jpg" onclick="window.open(this.href);return false;
Cuz (AKA Wes K)
45 MB, 51 M38, 54 M37, 6? M101A1, 60 CJ5, 76 DJ5D & 47 T3-C
45 MB, 51 M38, 54 M37, 6? M101A1, 60 CJ5, 76 DJ5D & 47 T3-C
- usmc20c
- G-Sergeant First Class
- Posts: 88
- Joined: Fri Jun 29, 2007 12:14 pm
- Location: San Diego, Ca
- Contact:
Re: 64 CJ3B restoration
Thank you,
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
- usmc20c
- G-Sergeant First Class
- Posts: 88
- Joined: Fri Jun 29, 2007 12:14 pm
- Location: San Diego, Ca
- Contact:
Re: 64 CJ3B restoration
March 21, 2010.

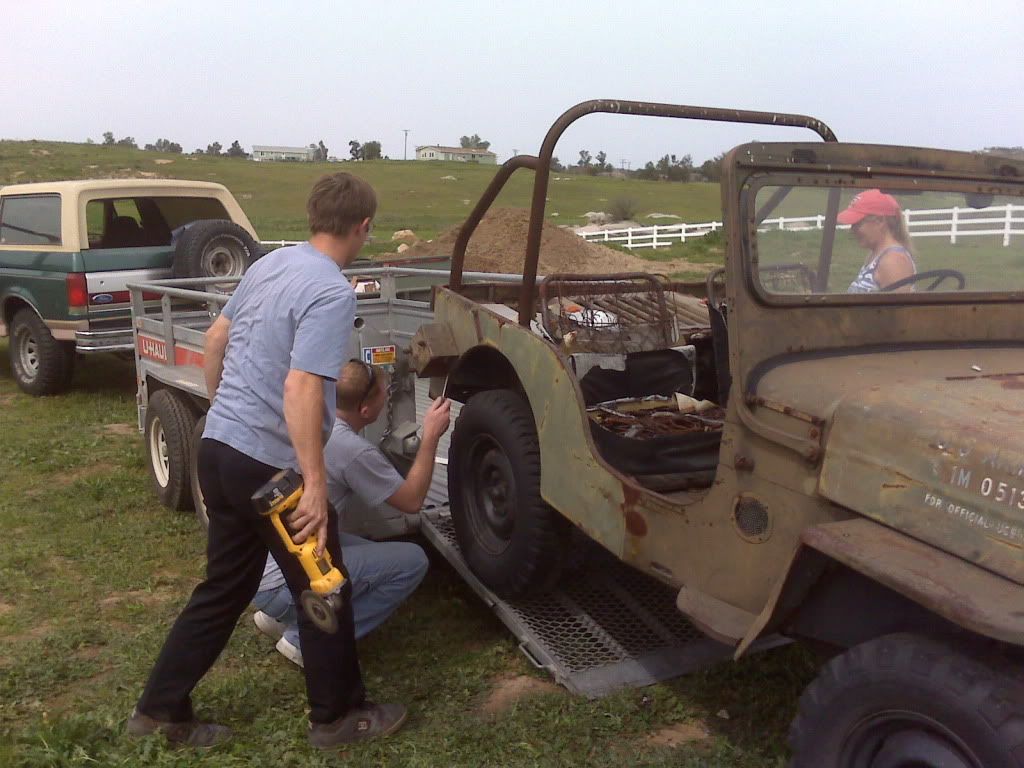

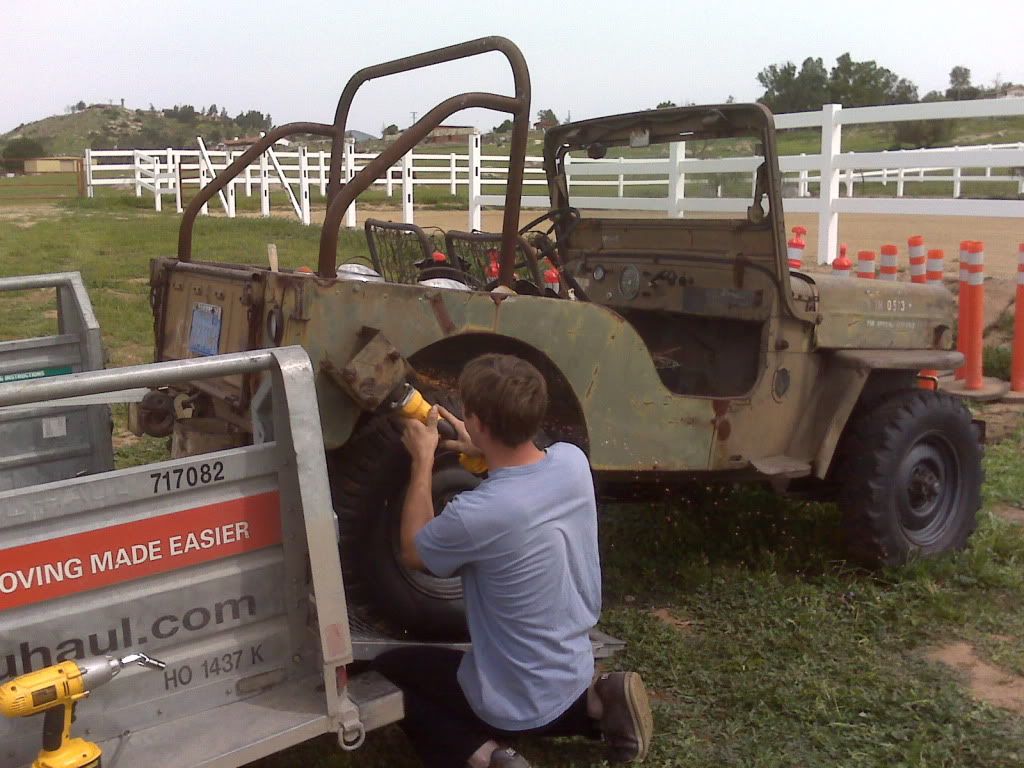

Went to U-Haul and got a 6x12 trailer only to find out its not really 6' wide at the ramp - instead its only 57". So if you ever plan on picking up a vehicle NEVER EVER get a 6x12 to do it... I think the pictures will show you why you shouldn't... lol


Went to U-Haul and got a 6x12 trailer only to find out its not really 6' wide at the ramp - instead its only 57". So if you ever plan on picking up a vehicle NEVER EVER get a 6x12 to do it... I think the pictures will show you why you shouldn't... lol


Thank you,
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
-
- Gee Addict
- Posts: 49835
- Joined: Sun Mar 02, 2008 2:37 pm
- Location: Proving Ground
Re: 64 CJ3B restoration
The Army bought a few hundred CJ-3B Jeeps in 1964 with Koenig Steel Cabs. Many were for administrative use such as Post Engineers and MP units. They startef showing up surplus as late as 1966 in various states of disrepair and cannibalization. All of the ones I witnessed were gloss O.D. with 600X16 Goodyear NDT tires. and Warn Hubs.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO
- usmc20c
- G-Sergeant First Class
- Posts: 88
- Joined: Fri Jun 29, 2007 12:14 pm
- Location: San Diego, Ca
- Contact:
Re: 64 CJ3B restoration
MARCH 27, 2010
Well a week later and I went ahead and got a car hauler from U-Haul rather than a trailer. Worked much better than that 6x12.

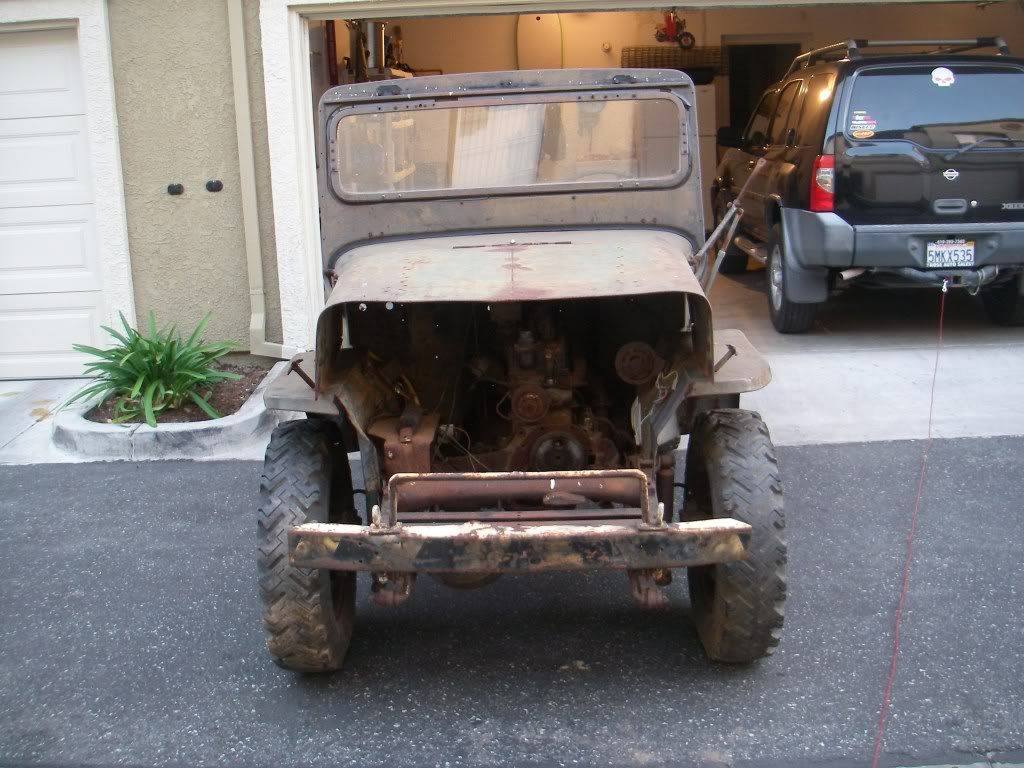

First day of having my Jeep in the garage. Day 1 of many!

Blackdog was kind enough to throw in another engine with jeep that is in real good condition. It is a 134 F head as well and has a governor on it - was used as an APU.


Didn't have a cherry picker handy so I turned the roll bar backwards bolted it back down and used cargo straps to lower it onto the engine stand. Very redneck I know...

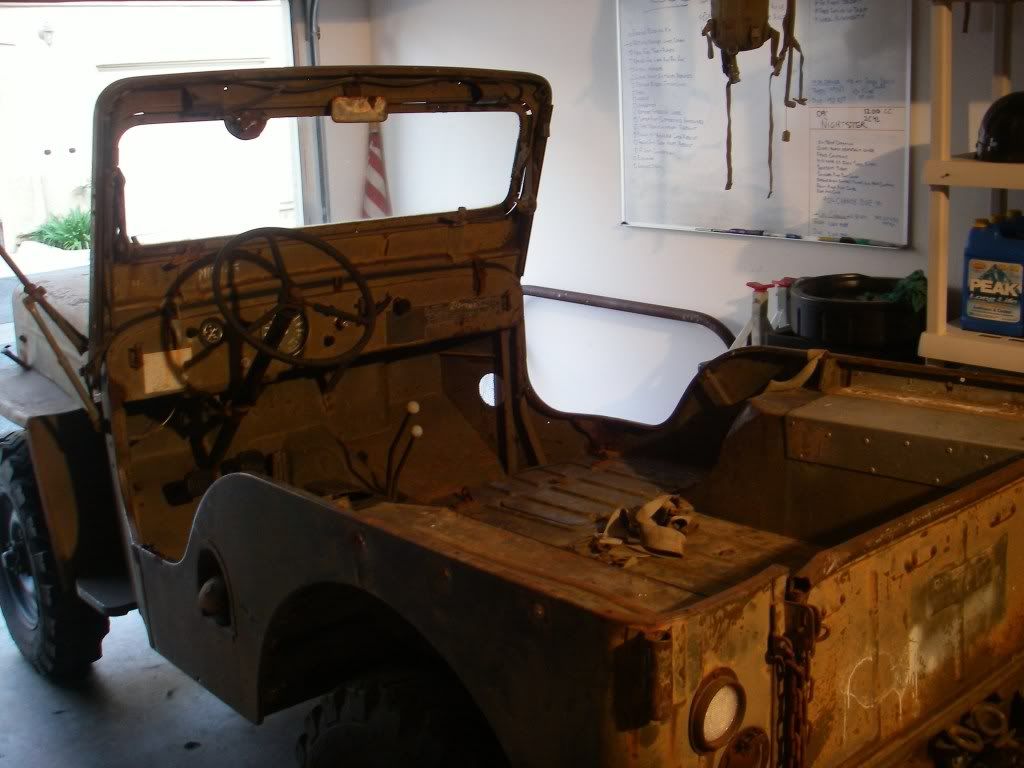

The start of disassembly... woohoo














Well a week later and I went ahead and got a car hauler from U-Haul rather than a trailer. Worked much better than that 6x12.

First day of having my Jeep in the garage. Day 1 of many!

Blackdog was kind enough to throw in another engine with jeep that is in real good condition. It is a 134 F head as well and has a governor on it - was used as an APU.


Didn't have a cherry picker handy so I turned the roll bar backwards bolted it back down and used cargo straps to lower it onto the engine stand. Very redneck I know...

The start of disassembly... woohoo














Thank you,
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
- usmc20c
- G-Sergeant First Class
- Posts: 88
- Joined: Fri Jun 29, 2007 12:14 pm
- Location: San Diego, Ca
- Contact:
Re: 64 CJ3B restoration
MARCH 28, 2010

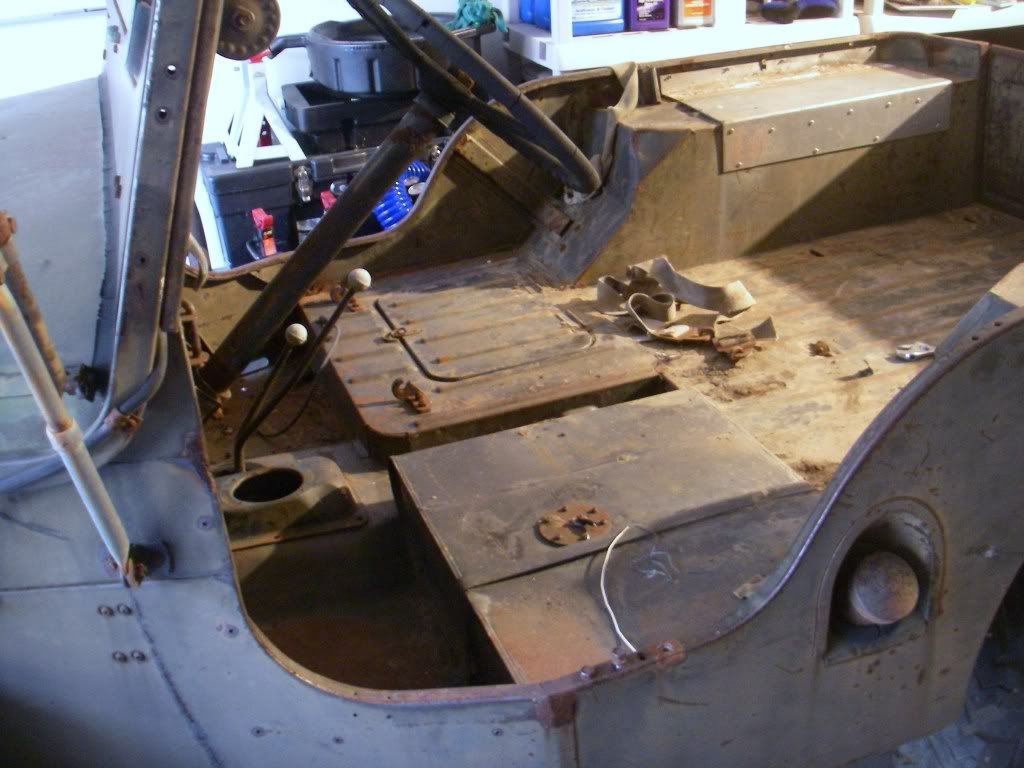

Another day of disassembly...
















Another day of disassembly...
















Thank you,
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
- usmc20c
- G-Sergeant First Class
- Posts: 88
- Joined: Fri Jun 29, 2007 12:14 pm
- Location: San Diego, Ca
- Contact:
Re: 64 CJ3B restoration
March 28, 2010

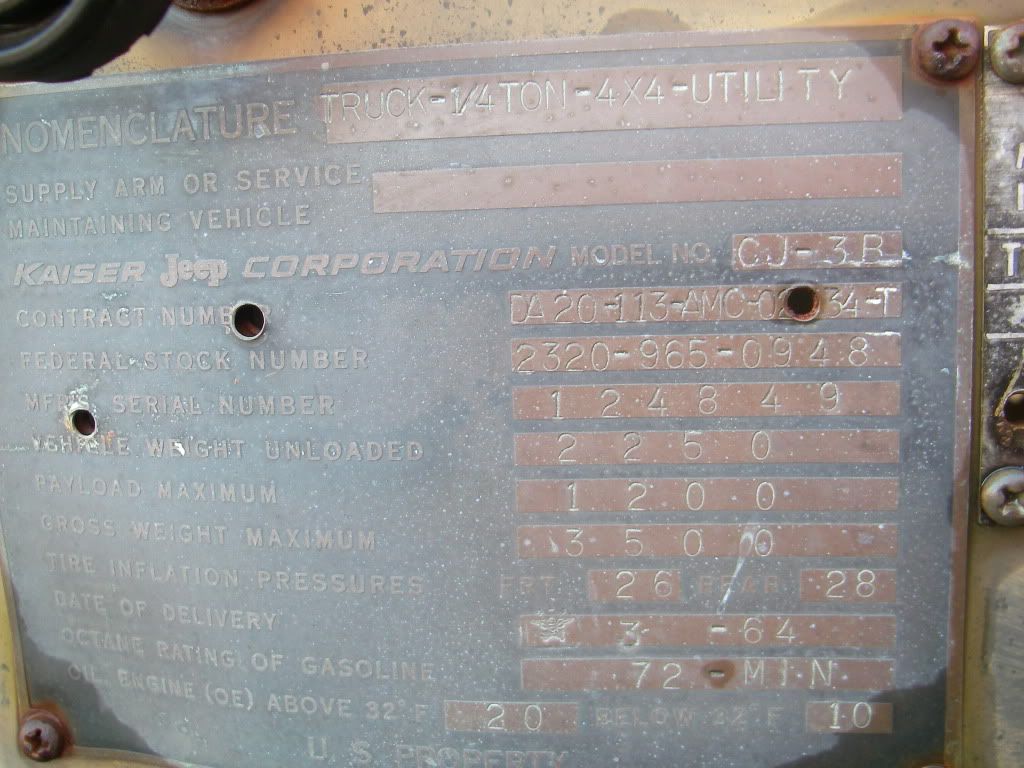

Vehicle Markings


Left Bumperette

Right Bumperette

CJ3B not an M606.


Vehicle Markings


Left Bumperette

Right Bumperette

CJ3B not an M606.


Thank you,
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
- usmc20c
- G-Sergeant First Class
- Posts: 88
- Joined: Fri Jun 29, 2007 12:14 pm
- Location: San Diego, Ca
- Contact:
Re: 64 CJ3B restoration
Under the tool box lid and some other things where the weather didn't get to it are Gloss O.D.
Ben Dover wrote:The Army bought a few hundred CJ-3B Jeeps in 1964 with Koenig Steel Cabs. Many were for administrative use such as Post Engineers and MP units. They startef showing up surplus as late as 1966 in various states of disrepair and cannibalization. All of the ones I witnessed were gloss O.D. with 600X16 Goodyear NDT tires. and Warn Hubs.
Thank you,
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
-
- Gee Addict
- Posts: 49835
- Joined: Sun Mar 02, 2008 2:37 pm
- Location: Proving Ground
Re: 64 CJ3B restoration
Note the Liggett Springs (grooved), and later type CJ-3B Axles and Brakes.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO
-
- G-Lieutenant General
- Posts: 6670
- Joined: Fri Feb 23, 2007 12:26 pm
- Location: Northwestern Wisconsin
- Contact:
Re: 64 CJ3B restoration
Don't let that ventilating windshield get out of your sight!!!
Cuz (AKA Wes K)
45 MB, 51 M38, 54 M37, 6? M101A1, 60 CJ5, 76 DJ5D & 47 T3-C
45 MB, 51 M38, 54 M37, 6? M101A1, 60 CJ5, 76 DJ5D & 47 T3-C
- usmc20c
- G-Sergeant First Class
- Posts: 88
- Joined: Fri Jun 29, 2007 12:14 pm
- Location: San Diego, Ca
- Contact:
Re: 64 CJ3B restoration
Why's that? Are they rare to come by? Also, what do you think the unit number is on the right bumpreette is? I think on the left it reads TMP... Let me know what you think.
Cuz wrote:Don't let that ventilating windshield get out of your sight!!!
Thank you,
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
- usmc20c
- G-Sergeant First Class
- Posts: 88
- Joined: Fri Jun 29, 2007 12:14 pm
- Location: San Diego, Ca
- Contact:
Re: 64 CJ3B restoration

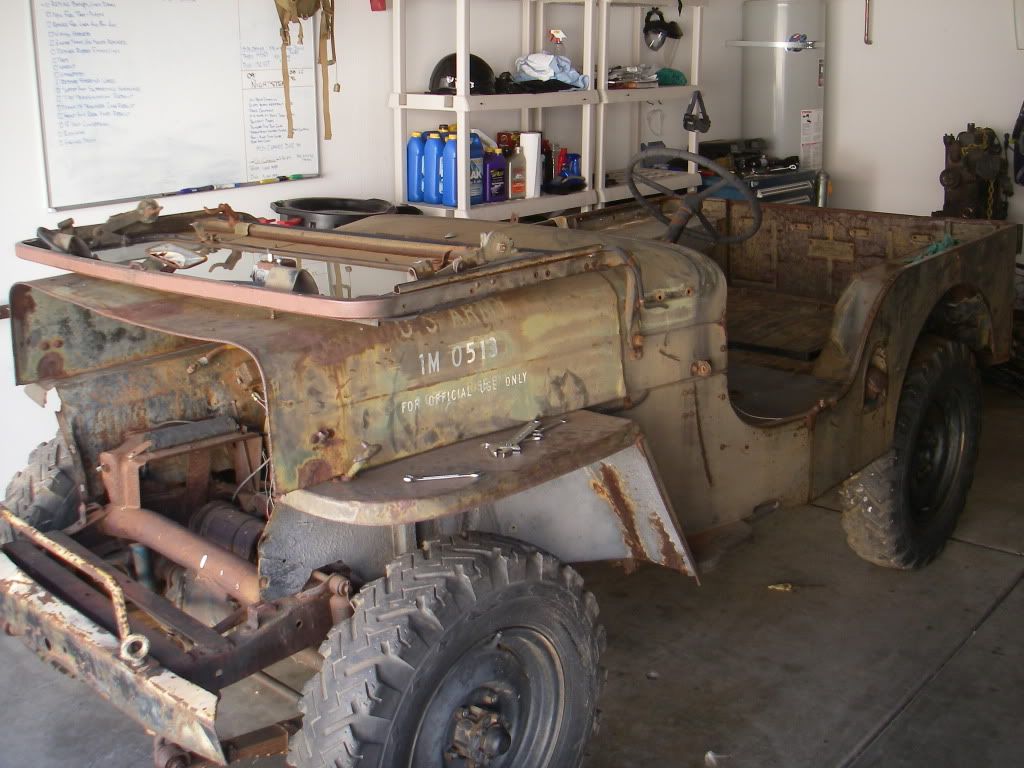

Thanks Ben Dover. Btw, what do you think the numbers read on the right bumperette and do you know what the markings on the hood mean?
Ben Dover wrote:Note the Liggett Springs (grooved), and later type CJ-3B Axles and Brakes.
Thank you,
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
Sgt Carlile, Craig
USMC - ACTIVE
San Diego, CA
MCAS MIRAMAR
-
- G-Lieutenant General
- Posts: 6670
- Joined: Fri Feb 23, 2007 12:26 pm
- Location: Northwestern Wisconsin
- Contact:
Re: 64 CJ3B restoration
The hood markings look correct for an Army unit in the 60's.
Since this would make the jeep a Non-tactical loaner vehicle it probably had a license plate ID'g the post or unit.
Cuz (AKA Wes K)
45 MB, 51 M38, 54 M37, 6? M101A1, 60 CJ5, 76 DJ5D & 47 T3-C
45 MB, 51 M38, 54 M37, 6? M101A1, 60 CJ5, 76 DJ5D & 47 T3-C
-
- Gee Addict
- Posts: 49835
- Joined: Sun Mar 02, 2008 2:37 pm
- Location: Proving Ground
Re: 64 CJ3B restoration
The USA Registration reflects the system used for commercial vehicles of the time. The 1964 CJ-3B Jeeps I have seen when new and the other 1964 CJ-3B Jeeps that have showen up surplus from that period all had the 1M-XXXX registrations, I still encounter catalogs from DRMO that have an occasional CJ-3B listing USA and Chassis numbers from your batch, they are stashed away with the excess TM's and SNL's that I lack shelf space for. All you gotta do now is save some bucks for the new Goodyear 600X16 NDT's that are in the planning stage. The missing fres air heater components are hard to come by in useable shape, especially in the CL-3B configuration. The familiar under dash Harrison heater will fit just fine.
