Re: Shipping data

Post by REG » Mon Jan 23, 2012 4:15 pm

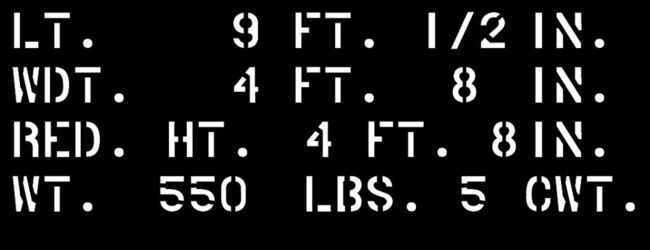

One question - is LBS a familiar expression in the states? Or CWT for Hundred Weight?

I'm mindful of the fact that they are meant for British shipping crews/logistics rather than US.

What do you think?
REG
________________
GPW 7448I: DoD 10/42
Engine 11/89
Bantam trailer DOD: 12/44

"Million-to-one chances crop up nine times out of ten."


User avatar
Chuck Lutz
banned
Posts: 26831
Joined: Wed Jun 28, 2006 8:00 am
Location: Novato, CA

Re: Shipping data

Post by Chuck Lutz » Mon Jan 23, 2012 8:04 pm

HEIGHT:.........40" (Loaded)

The manual uses "lbs." for all weights. An American Army outfit would not use "cwt." A trailer being prepped for shipping in either an American crewed vessel or a British crewed vessel in the UK would probably also add the "cwt." info however.
Chuck Lutz

GPW 17963 4/24/42 Chester, PA. USA 20113473 (USA est./Tom W.)
Bantam T3-C 1947

User avatar
REG
G-Lieutenant General
G-Lieutenant General
Posts: 3985
Joined: Sat Nov 26, 2005 1:34 pm
Location: South Wales, UK

Re: Shipping data

Post by REG » Sun Jan 29, 2012 1:04 pm

I met the proprietors of the following today - nice young lady: http://axholmesigns.co.uk/Products/103- ... tails.aspx


Just to add into the mix and to give them a bit of publicity for their courtesy when I met tham at the Stoneleigh show
REG
________________
GPW 7448I: DoD 10/42
Engine 11/89
Bantam trailer DOD: 12/44

"Million-to-one chances crop up nine times out of ten."

User avatar
REG
G-Lieutenant General
G-Lieutenant General
Posts: 3985
Joined: Sat Nov 26, 2005 1:34 pm
Location: South Wales, UK

Re: Shipping data

Post by REG » Thu Feb 09, 2012 1:03 pm

Well, first try done.

The following shot is of the inspiration for my original paint/numbering scheme, the french shop markings and then my own interpretation.

Not perfect by a long chalk but, considering some of those I came across, not wholly unrealistic - I may leave it like that.


Last edited by REG on Thu Feb 09, 2012 1:19 pm, edited 1 time in total.
REG
________________
GPW 7448I: DoD 10/42
Engine 11/89
Bantam trailer DOD: 12/44

"Million-to-one chances crop up nine times out of ten."

User avatar
Goranwc51
G-Major
G-Major
Posts: 821
Joined: Thu Jun 24, 2004 6:56 am
Location: Stockholm, Sweden

Re: Shipping data

Post by Goranwc51 » Thu Feb 09, 2012 1:16 pm

Chuck,


"FYI....the trailer above is a Willys MB-T circa Jul/Aug 1943 with a serial number around 37500 +/-"

Does that tie in with my trailer, by any chance?:

Willys MBT
ACM no 57482
Manufactured: July 1943

Goran Noren

User avatar
Chuck Lutz
banned
Posts: 26831
Joined: Wed Jun 28, 2006 8:00 am
Location: Novato, CA

Re: Shipping data

Post by Chuck Lutz » Thu Feb 09, 2012 1:33 pm

Not really Goren...when comparing the ACM numbers between the Willys MB-Ts for instance, you have to check the Bantam list to see if you can tell if ACM was sending them in small batches or not. While the Serial Numbers on trailers were sequential, with ACM sending assemblies to BOTH Willys and Bantam at the same time and in smaller batches, it is not possible to estimate missing info based strictly on sequential ACM numbers unless you can prove none were sent to the OTHER company during the same time frame...

Now, when I get a trailer with an ACM very CLOSE to one in the data base that DOES have a data plate on it, the first thing I check is to see if the OTHER company had ACM numbers in between both examples....if not then the estimate is better...if they did ship to both, then a sequential estimate of the info on the trailer with the missing data plate is not possible based on a sequential ACM.

I hope that is not too confusing!
Chuck Lutz

GPW 17963 4/24/42 Chester, PA. USA 20113473 (USA est./Tom W.)
Bantam T3-C 1947

User avatar
lucakiki
G-General
G-General
Posts: 17578
Joined: Sat Feb 15, 2003 9:18 am
Location: Torino, ITALY

Re: Shipping data stencil

Post by lucakiki » Fri Feb 10, 2012 3:24 am

Quite a while ago, someone from down under did post a picture of his trailer with unmolested original shipping data stenciled on the side.
I had downloaded the picture, but cannot find it right now.
Maybe someone remembers it.
Luca

WillysMB#344142 6-19-44 Navy N.S.Blue Grey
45 Bantam T-3 #57248 1-10-45
42 Willys MB-T #13560 11-42
43 Willys MB-T # 25417 4-43
Way too many WWII military tools,hopefully thinning down,and way too many posts...

__________________________________________
_____________________________________________
__________________________________________

User avatar
REG
G-Lieutenant General
G-Lieutenant General
Posts: 3985
Joined: Sat Nov 26, 2005 1:34 pm
Location: South Wales, UK

Re: Shipping data stencil

Post by REG » Fri Feb 10, 2012 7:00 am

lucakiki wrote:Quite a while ago, someone from down under did post a picture of his trailer with unmolested original shipping data stenciled on the side.
I had downloaded the picture, but cannot find it right now.
Maybe someone remembers it.
Luca, does it appear on page one of this thread?
REG
________________
GPW 7448I: DoD 10/42
Engine 11/89
Bantam trailer DOD: 12/44

"Million-to-one chances crop up nine times out of ten."

sprprops
G-Staff Sergeant
G-Staff Sergeant
Posts: 66
Joined: Thu Jun 16, 2011 10:22 pm
Location: Virginia

Re: Shipping data

Post by sprprops » Sat Jul 30, 2022 9:30 pm

Note the hand painted shipping info.

Rustman
G-Major
G-Major
Posts: 850
Joined: Sun Jun 20, 2010 6:04 am
Location: Charles Town, WV
Contact:

Re: Shipping data

Post by Rustman » Wed Aug 10, 2022 4:46 pm

sprprops wrote:
Sat Jul 30, 2022 9:30 pm
Note the hand painted shipping info.

This trailer is still in my driveway. It's being picked up by it's new owner early September. I can try to get better photos of the shipping stencil before it goes.

Matt
1970 Kaiser Jeep DJ-5A Left Hand Drive
1967 Ford M-151A1
M-416 Trailer
194* G518 "Ben Hur" Trailer Steel Body
194* G518 "Ben Hur" Trailer Composite Body
http://g518parts.com/

sprprops
G-Staff Sergeant
G-Staff Sergeant
Posts: 66
Joined: Thu Jun 16, 2011 10:22 pm
Location: Virginia

Re: Shipping data

Post by sprprops » Wed Aug 10, 2022 9:21 pm

Rustman wrote:
Wed Aug 10, 2022 4:46 pm
sprprops wrote:
Sat Jul 30, 2022 9:30 pm
Note the hand painted shipping info.

This trailer is still in my driveway. It's being picked up by it's new owner early September. I can try to get better photos of the shipping stencil before it goes.

Matt
Yes absolutely! Can you lay a tape measure up against it and the stars too?

Rustman
G-Major
G-Major
Posts: 850
Joined: Sun Jun 20, 2010 6:04 am
Location: Charles Town, WV
Contact:

Re: Shipping data

Post by Rustman » Thu Aug 11, 2022 11:23 pm

Hope these help. Stars look to be about 5.5" tip to tip. I tried wetting down the lettering with some water so we could see it better, but as you can see the lighting was against me. Stark shadow or brilliant sun.

Matt
1970 Kaiser Jeep DJ-5A Left Hand Drive
1967 Ford M-151A1
M-416 Trailer
194* G518 "Ben Hur" Trailer Steel Body
194* G518 "Ben Hur" Trailer Composite Body
http://g518parts.com/

sprprops
G-Staff Sergeant
G-Staff Sergeant
Posts: 66
Joined: Thu Jun 16, 2011 10:22 pm
Location: Virginia

Re: Shipping data

Post by sprprops » Fri Aug 12, 2022 8:28 am

Excellent Thank you.
It looks like it says

LENGTH 9.1
WIDTH 4.9
HEIGHT 3.6
IT WT. 550
