Tow Bar Options

Post by ndnile » Wed Mar 31, 2021 9:07 pm

I think within the last two years I stumbled upon a thread here where the poster described modifying an off the shelf folding tow bar to install on the front shackle brackets on an M38A1. I did a search here, but could not find it. Any pointers?
Doug
Sacramento Area
1943 Willys MB
1943 GPW-125334 (Sold)
1962 M170
1959 Willys Wagon


User avatar
199th MP
G-Major General
G-Major General
Posts: 2780
Joined: Mon May 04, 1998 9:00 pm
Location: Centralia, WA

Re: Tow Bar Options

Post by 199th MP » Thu Apr 01, 2021 7:56 am

i had a welder make one for me from square stock. you might consider that idea.
Attachments

Ken Perkins
G-Major
G-Major
Posts: 808
Joined: Fri Dec 13, 2002 10:26 pm
Location: LIVERMORE, CALIFORNIA

Re: Tow Bar Options

Post by Ken Perkins » Thu Apr 01, 2021 10:52 am

Doug, pm me your cell # and I'll send you some pics of mine....
1951 M38 #22936
1951 M100 DUNBAR
1953 m100 Dunbar
M416B1
2- M762
MVPA #11788
MVCC

ndnile
G-Second Lieutenant
G-Second Lieutenant
Posts: 530
Joined: Wed Sep 17, 2014 9:09 pm
Location:

Re: Tow Bar Options

Post by ndnile » Thu Apr 01, 2021 10:54 am

Done
Doug
Sacramento Area
1943 Willys MB
1943 GPW-125334 (Sold)
1962 M170
1959 Willys Wagon

ndnile
G-Second Lieutenant
G-Second Lieutenant
Posts: 530
Joined: Wed Sep 17, 2014 9:09 pm
Location:

Re: Tow Bar Options

Post by ndnile » Thu Apr 01, 2021 10:56 am

199th MP wrote:
Thu Apr 01, 2021 7:56 am
i had a welder make one for me from square stock. you might consider that idea.
Looks pretty good, but I'm really wanting something I can fold up and get out of the way when I don't need it. I have an M170 and will tend to store it in the back instead of keeping it mounted on the bumper all the time.
Doug
Sacramento Area
1943 Willys MB
1943 GPW-125334 (Sold)
1962 M170
1959 Willys Wagon

Cabin Fever
G-Sergeant First Class
G-Sergeant First Class
Posts: 88
Joined: Fri Mar 29, 2013 11:04 am
Location: Between Emily and Crosslake, Minnesota

Re: Tow Bar Options

Post by Cabin Fever » Tue Apr 06, 2021 12:37 pm

Yes, I have done this.

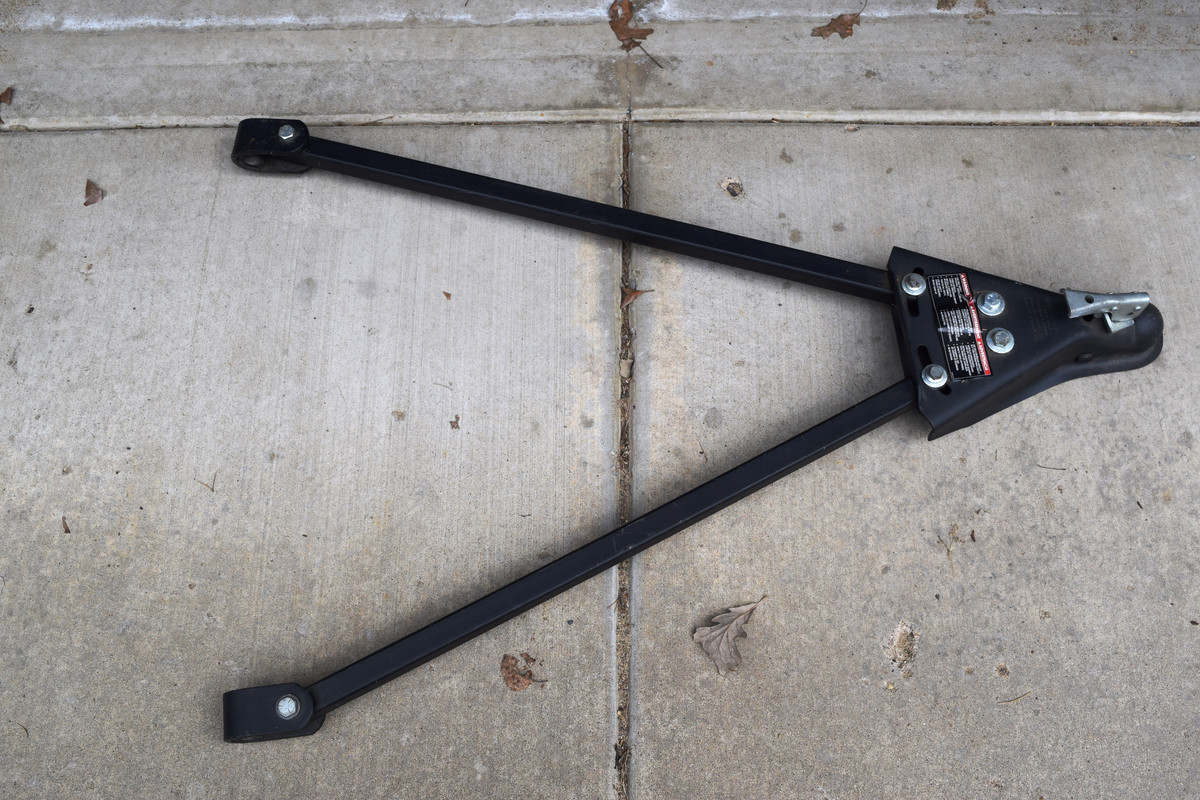

I purchased an off-the-shelf tow bar for towing my M38A1. I believe it is a Curt Manufacturing tow bar....not sure as there is no manufacturers information on the bar.

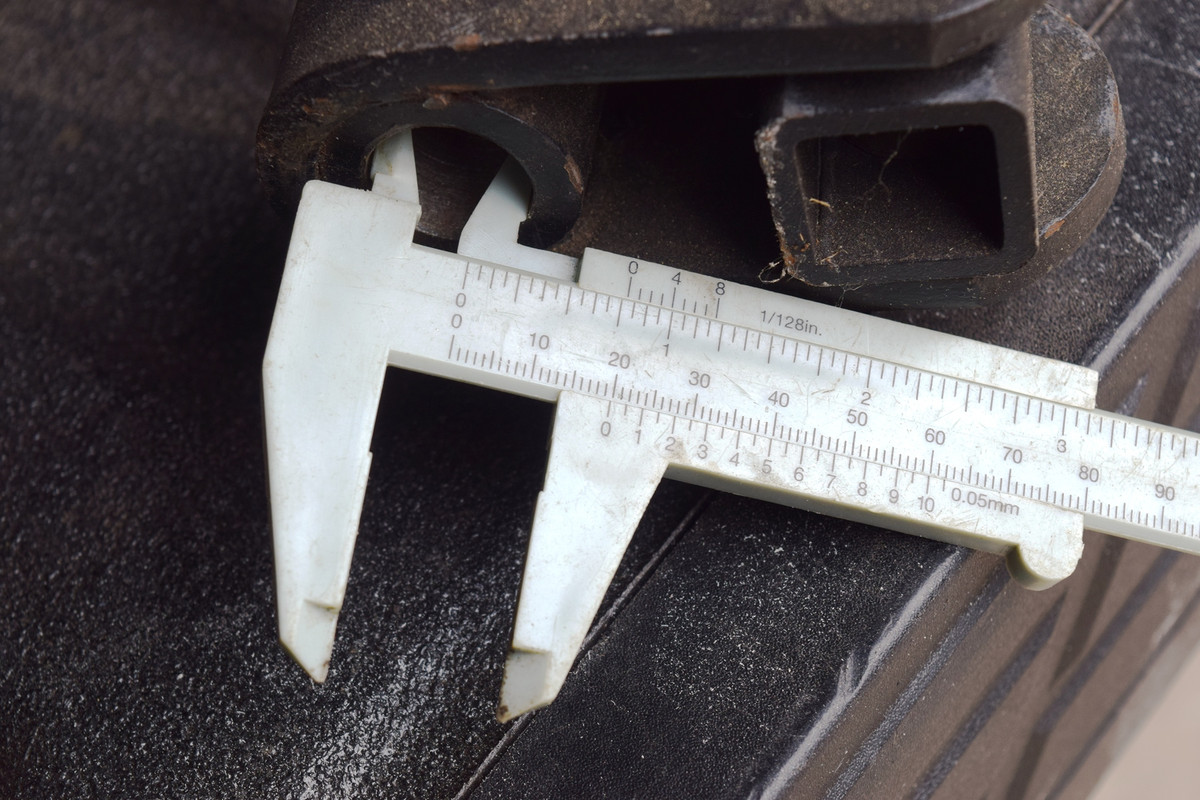

The width of the connector (below) is 2" wide. It fits perfectly into the front lifting shackle bracket of the jeep with no slop.

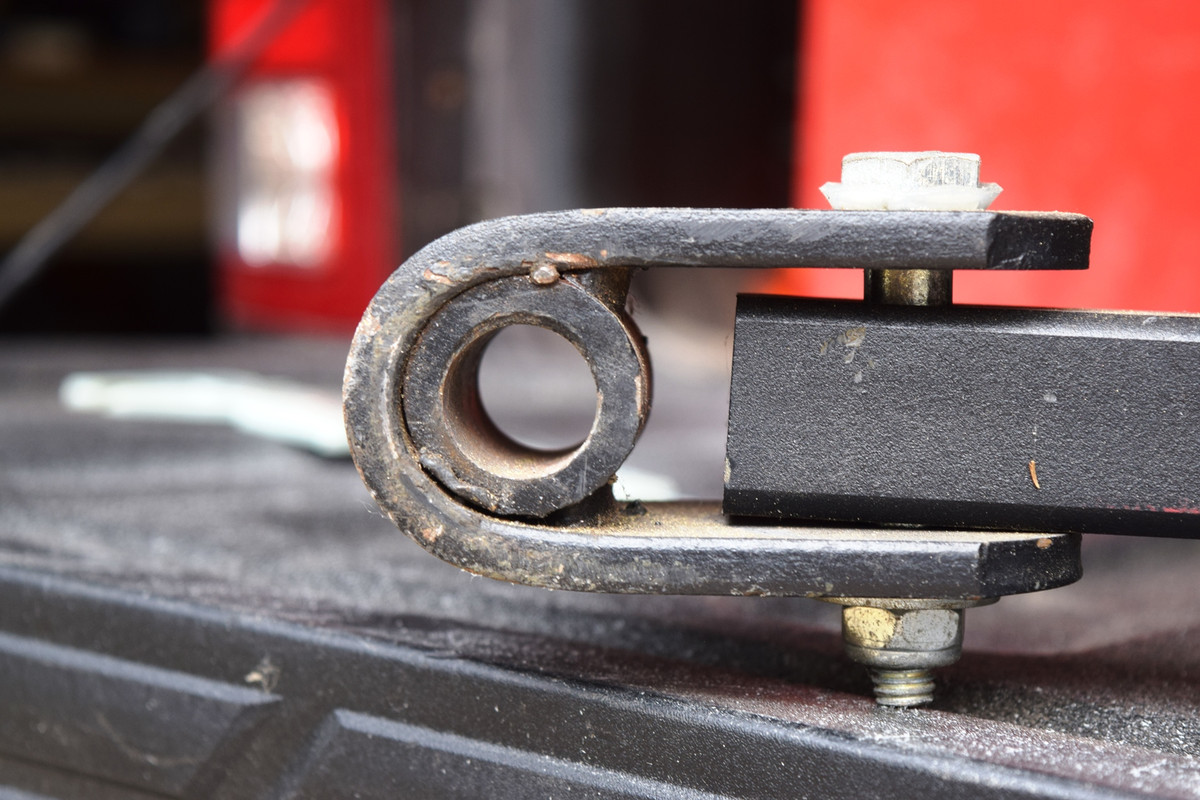

Out of the box, the connector hole was too narrow to accept the 3/4" diameter of the shackle pin. So, I drilled it out to 3/4" diameter,

Now it all fits perfectly and hook up is fast and efficient. When I get to the parade I remove the shackle pins, pull off the tow bar, and replace the shackle rings and pins. I am ready to go!

Let me know if you have any questions.
1955 M38A1 MD 85388

MVPA Member #35153
Member - Red Bull Historic Military Vehicle Association

ndnile
G-Second Lieutenant
G-Second Lieutenant
Posts: 530
Joined: Wed Sep 17, 2014 9:09 pm
Location:

Re: Tow Bar Options

Post by ndnile » Wed Apr 07, 2021 9:54 pm

Cabin Fever,

Perfect, thanks!

Cheers, Doug
