Post by Rickf » Mon Aug 17, 2020 2:16 pm

If it was running good before you ran the fuel out then I doubt timing is the issue. Does it have electronic ignition? If it does then once the timing is set it does not move. As far as seeing the mark, you need to clean off the pulley and find the notch and mark it with chalk of with paint. Then you will be able to see it. Other than that there is really no other way to set the timing.
1964 M151A1
1984 M1008
1967 M416
04/1952 M100
12/1952 M100- Departed
AN/TSQ-114A Trailblazer- Gone


User avatar
W. Winget
LTC, U.S. Army
LTC, U.S. Army
Posts: 3406
Joined: Mon Dec 16, 2002 12:37 pm
Location: USA, Virginia, Carrollton
Contact:

Re: M151A1 begining of new project

Post by W. Winget » Tue Aug 18, 2020 12:30 pm

You might need an adapter to run the timing light.
The military made a set of adapters to work on the waterproof ignition systems, one for dwell measurement is insulated and screws down the hole atop the distributor (currently covered by a cap nut)
timing light screwed into the #1 plug wire (from memory) then onto the plug
A -20 TM will cover the diagnosis and how the tools are set up, there's nothing you cannot fabricate to make a non-mil timing light work on the system, but remember to hook it up to the grounded battery or you will run 24V through it and let the smoke out...
V/R W. Winget

PS: The distributor is basically close to being correct timing when you can place two fingers (index and middle) between the input lead connector side of the cap and the firewall (again from memory) WAW

PPS: you could run an old STE-ICE (Simplified Test Equipment for Internal Combustion Engines) box on it (early military diagnostic set) but it was generally more trouble than it was worth. WAW
Looking for 1918 Standard B 'Liberty' truck parts

markrdje
USMC Sergeant
USMC Sergeant
Posts: 731
Joined: Sat Jun 13, 2009 1:44 pm
Location:

Re: M151A1 begining of new project

Post by markrdje » Tue Aug 18, 2020 12:45 pm

I thought it the oil filter?
change user name to mark

Rickf
G-Lieutenant General
G-Lieutenant General
Posts: 5242
Joined: Sun Mar 19, 2006 12:04 pm
Location: Pemberton, New Jersey

Re: M151A1 begining of new project

Post by Rickf » Tue Aug 18, 2020 3:01 pm

It is the oil filter.
1964 M151A1
1984 M1008
1967 M416
04/1952 M100
12/1952 M100- Departed
AN/TSQ-114A Trailblazer- Gone

User avatar
W. Winget
LTC, U.S. Army
LTC, U.S. Army
Posts: 3406
Joined: Mon Dec 16, 2002 12:37 pm
Location: USA, Virginia, Carrollton
Contact:

Re: M151A1 begining of new project

Post by W. Winget » Tue Aug 18, 2020 7:08 pm

See, memory... Oil filter would be correct, need to pop my hoods more often, too many other vehicles to work on.
Sorry about that, but at least the two finger check isn't argued against :D Just trying to help.
V/R W Winget
Looking for 1918 Standard B 'Liberty' truck parts

User avatar
Hell On Wheels
G-Colonel
G-Colonel
Posts: 1239
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: M151A1 begining of new project

Post by Hell On Wheels » Thu Sep 24, 2020 4:44 pm

I need to figure that out about the timing. I just thought about something, would low oil in the filter housing cause the idle jumping? I need to check that. :?:

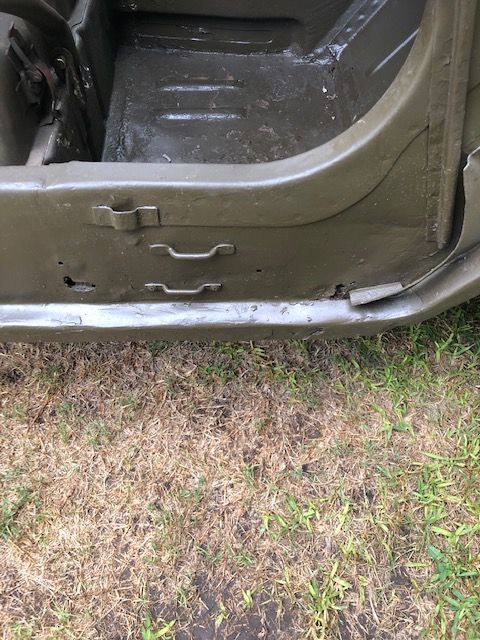

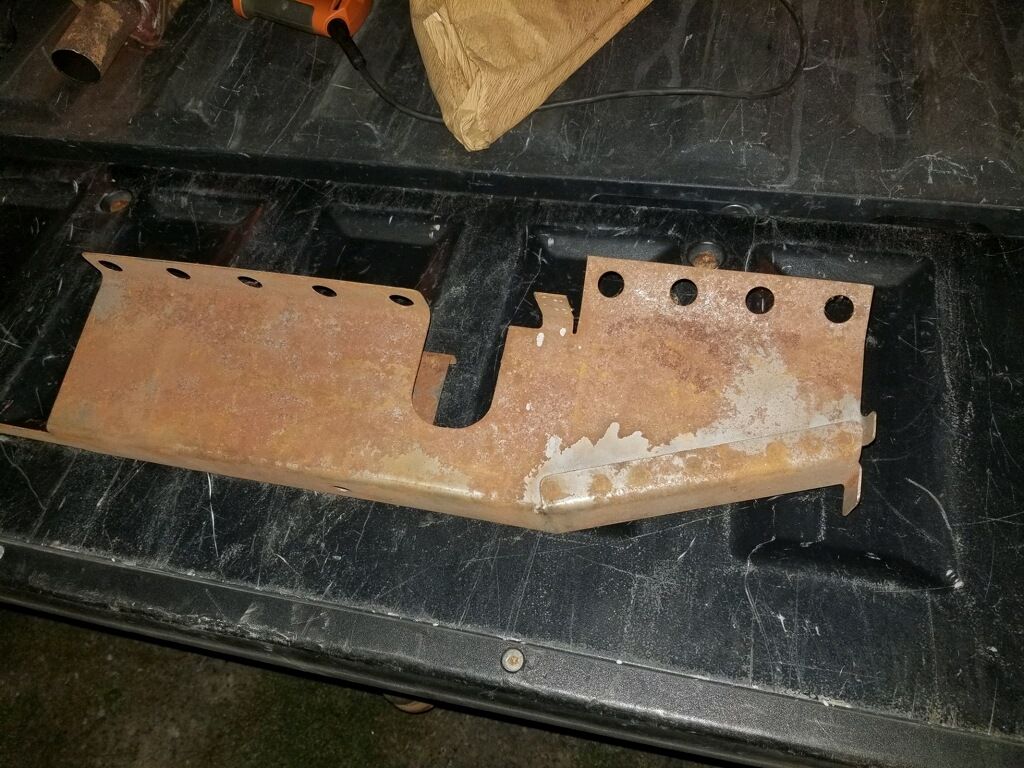

I also just picked up some parts from Guy (CMD Body Panels) last week. It's the two rear fender tops, side panel to replace some rust spots created when they pieced the MUTT together that over the years was just covered up with bondo that has started to really bubble and rust. Purchased also the two rear a-frame support brackets underneath. So I hope to get to putting them on in the fall. I've been busy on my HMMWV electric turret motor upgrade. Need to give the old MUTT some attention.



Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

Hell on Wheels https://www.youtube.com/channel/UCi_blL ... z7Ukw8gbHg

User avatar
Hell On Wheels
G-Colonel
G-Colonel
Posts: 1239
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: M151A1 begining of new project

Post by Hell On Wheels » Mon Jan 25, 2021 9:05 am

Ok I figured I would install an alarm system / anti thief in my MUTT.

Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

Hell on Wheels https://www.youtube.com/channel/UCi_blL ... z7Ukw8gbHg

User avatar
Hell On Wheels
G-Colonel
G-Colonel
Posts: 1239
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: M151A1 begining of new project

Post by Hell On Wheels » Mon Feb 01, 2021 5:25 pm

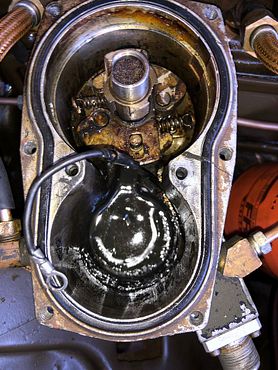

Ok I been having a loping/erratic idle issue and thought to look inside my distributor to see if I had a weight issue as Rick mentioned. Load and behold it looked like a mess:

What the hell is all this crud and goop all over the weights, in the housing and on the coil.

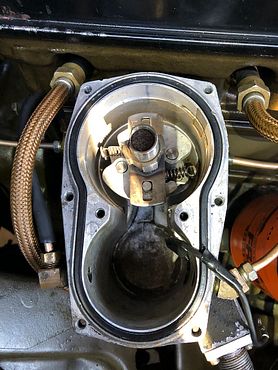

So I cleaned it up and had to disassemble everything. I took this picture but forgot to take the after when I installed some heat shrink.

I noticed after I installed the springs and weights on the trigger wheel and shaft one of the springs was kind of stretched and had no recoil. I think that is my issue causing the loping?

After reinstalling and started up it idles better but still a little loping. I think I need to replace the springs. Does anyone have any?
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

Hell on Wheels https://www.youtube.com/channel/UCi_blL ... z7Ukw8gbHg

Rickf
G-Lieutenant General
G-Lieutenant General
Posts: 5242
Joined: Sun Mar 19, 2006 12:04 pm
Location: Pemberton, New Jersey

Re: M151A1 begining of new project

Post by Rickf » Mon Feb 01, 2021 6:00 pm

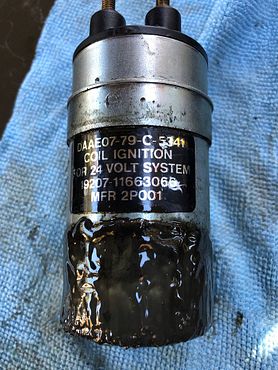

I hope you did not get any of that stuff on your bare skin!!! That is some really nasty stuff. Dioxin oils from the coil. That coil will be toast. And is that wire going to a resistor in the bottom of the cavity for the coil? That was not a remote resistor coil so someone had a mismatch in there. Only the very early coils had the remote resistor under them. The goo on the weights is usually from the potting material melting out of the Prestolite electronic ignition modules. That is not hazardous that I know of but the stuff in the coils is real bad news. Set that coil on a paper towel and see if anything weeps out of it, If it is coming out of there do not use it.
And oil level in the air cleaner will not affect the idle unless the fuel pump went bad and the air cleaner is full of gasoline.
1964 M151A1
1984 M1008
1967 M416
04/1952 M100
12/1952 M100- Departed
AN/TSQ-114A Trailblazer- Gone

User avatar
Hell On Wheels
G-Colonel
G-Colonel
Posts: 1239
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: M151A1 begining of new project

Post by Hell On Wheels » Mon Feb 01, 2021 6:24 pm

oh really it started back up with no issue. Is the coil still bad? The air cleaner is the proper level of oil and no fuel. This is a A1 configuration the pump is in the fuel tank. The wire in the housing is coming off the supply lead from the wire harness. The springs on the weights one seems to be at a good tension the other is loose. Would that make the idle loping?

What was odd was the trigger wheel was secured with a snap ring on the shaft rather than a screw. The trigger wheel looked like it was fabricated or repaired.
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

Hell on Wheels https://www.youtube.com/channel/UCi_blL ... z7Ukw8gbHg

Rickf
G-Lieutenant General
G-Lieutenant General
Posts: 5242
Joined: Sun Mar 19, 2006 12:04 pm
Location: Pemberton, New Jersey

Re: M151A1 begining of new project

Post by Rickf » Mon Feb 01, 2021 6:42 pm

On my other computer now and I can see the wire coming in from the inlet cap. Yes, it will start with a coil dry of oil, Will eventually burn up the coil since the oil is the coolant. One light spring and one heavy spring is the correct setup and one is normally loose, yes. I usually put a dab of white grease on all the moving parts in there, prevents rust and keep things moving.
1964 M151A1
1984 M1008
1967 M416
04/1952 M100
12/1952 M100- Departed
AN/TSQ-114A Trailblazer- Gone

User avatar
Hell On Wheels
G-Colonel
G-Colonel
Posts: 1239
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: M151A1 begining of new project

Post by Hell On Wheels » Mon Feb 01, 2021 6:59 pm

So what do you think is causing the loping? Is it possible the coil is going out causing the loping?
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

Hell on Wheels https://www.youtube.com/channel/UCi_blL ... z7Ukw8gbHg

User avatar
Hell On Wheels
G-Colonel
G-Colonel
Posts: 1239
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: M151A1 begining of new project

Post by Hell On Wheels » Tue Mar 30, 2021 8:10 am

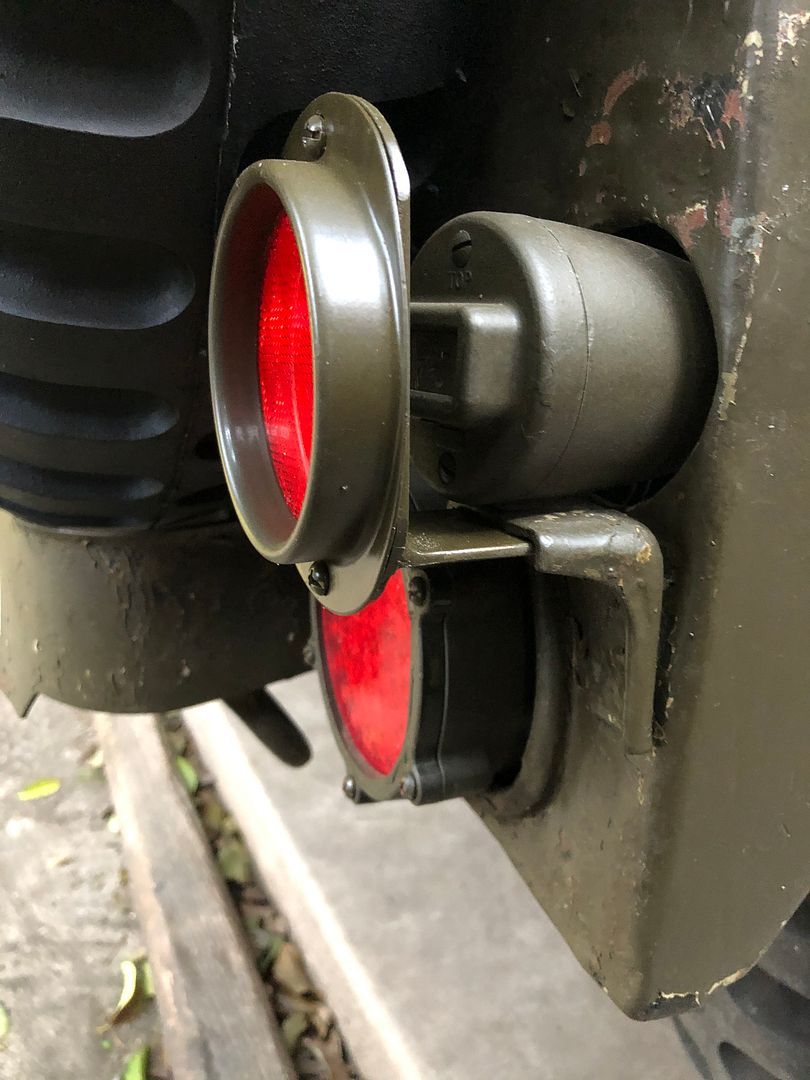

Well just wanted to post a simple modification for daily driving. I never liked the look of having one reflector from the rear. Having a license plate I still didn't like the look of the reflector in the spare tire area. So without getting away from the original mil/spec look I made a angle bracket without haing to remove the BO marker for daily driving and can be easily taken off for shows or what ever.

The look from the rear

side view bracket mounting.
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

Hell on Wheels https://www.youtube.com/channel/UCi_blL ... z7Ukw8gbHg

User avatar
Hell On Wheels
G-Colonel
G-Colonel
Posts: 1239
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: M151A1 begining of new project

Post by Hell On Wheels » Sun Apr 04, 2021 8:05 am

went for a drive and couldn't pass the opportunity to take this picture.


Short video on my return
https://youtu.be/77_2o1AFmPU
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

Hell on Wheels https://www.youtube.com/channel/UCi_blL ... z7Ukw8gbHg
