Re: My evolution of my M998

Post by Retired War Horses » Fri Sep 11, 2020 8:53 am

I have plenty of the m1151 trays, hatches and slam hatch mechanisms.
Retired War Horses Restoration

Call us for all your HMMWV parts, service, upgrades and conversion needs.


User avatar
Hell On Wheels
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1190
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: My evolution of my M998

Post by Hell On Wheels » Fri Sep 11, 2020 10:11 am

Retired War Horses wrote:
Fri Sep 11, 2020 8:52 am
If you use that turret tray, you need to raise the try up With the thick adapter...while it may work, your brush lengths will need to be trimmed. How did you bolt up the motor? Your bracket on this green motor is for m1114 and in order to use the motor, you generally have to use use the m1151 motor bracket.

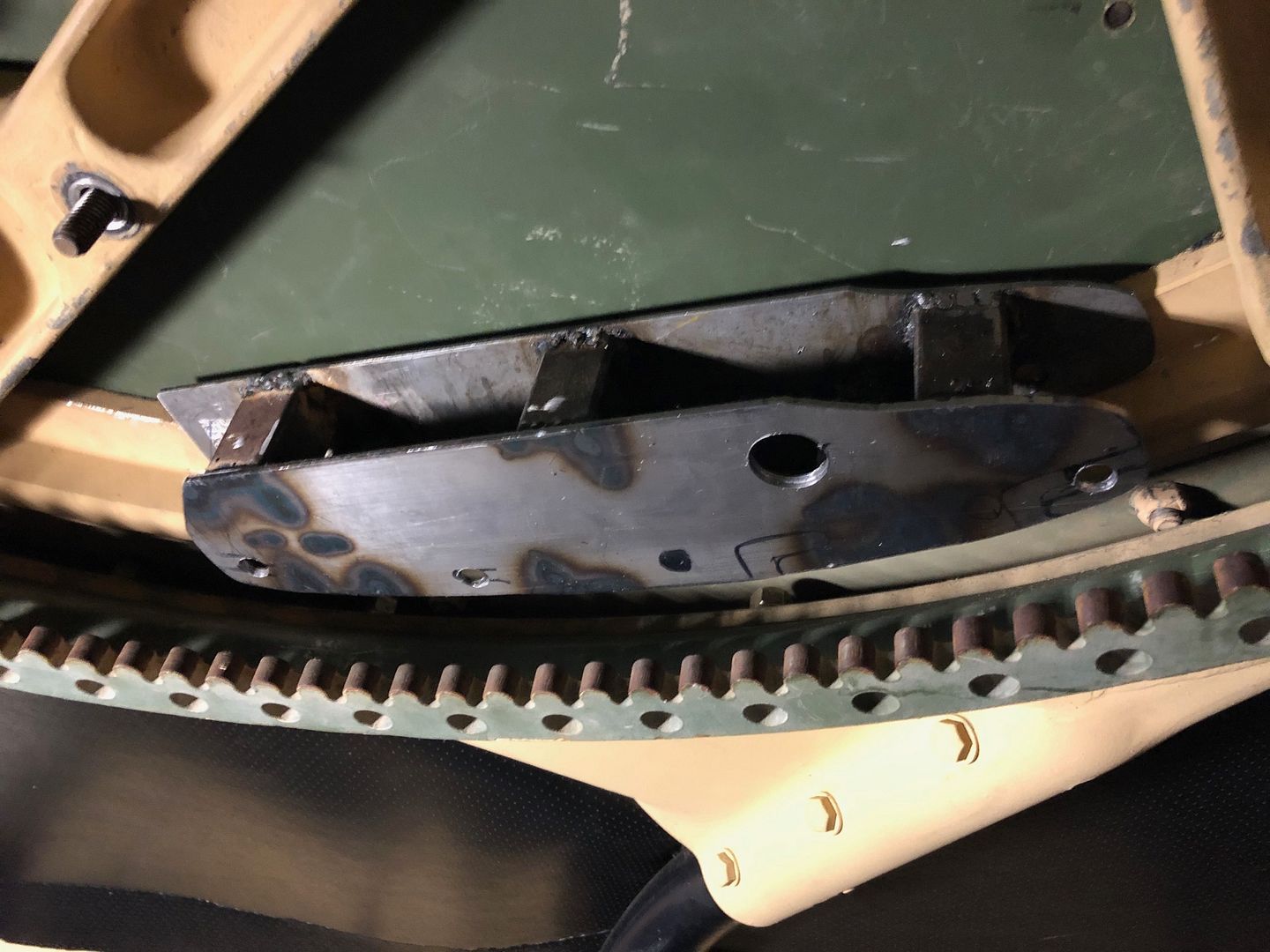

Funny you ask, I made a sample bracket out of wood and transferred to flat steel to make the final version bracket. Im not expert on welding but it will hold.





Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

User avatar
Retired War Horses
G-Brigadier General
G-Brigadier General
Posts: 2363
Joined: Sun Jan 11, 2004 11:45 am
Location: Northern Calif
Contact:

Re: My evolution of my M998

Post by Retired War Horses » Fri Sep 11, 2020 11:34 am

86humv had or has some repros
Retired War Horses Restoration

Call us for all your HMMWV parts, service, upgrades and conversion needs.

User avatar
Hell On Wheels
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1190
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: My evolution of my M998

Post by Hell On Wheels » Wed Sep 16, 2020 7:50 am

I have a question on the turret system, can it operate just off vehicles batteries (power charging cables to batteries bottom of controller) or does it require power supplied to the top of the controller to battery power (turret batteries) cable at the same time?
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

User avatar
Retired War Horses
G-Brigadier General
G-Brigadier General
Posts: 2363
Joined: Sun Jan 11, 2004 11:45 am
Location: Northern Calif
Contact:

Re: My evolution of my M998

Post by Retired War Horses » Wed Sep 16, 2020 7:52 am

The connection to the truck batteries is just to charge the turret batteries...
Retired War Horses Restoration

Call us for all your HMMWV parts, service, upgrades and conversion needs.

User avatar
Hell On Wheels
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1190
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: My evolution of my M998

Post by Hell On Wheels » Wed Sep 16, 2020 8:02 am

Yes, but will it supply power to run the system or does it require Power to the top connector to run the system. I’m getting both cables Friday but it’s just a question I have should I bother with connecting turret batteries or not can I just run the system with the power charging cables
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

User avatar
Retired War Horses
G-Brigadier General
G-Brigadier General
Posts: 2363
Joined: Sun Jan 11, 2004 11:45 am
Location: Northern Calif
Contact:

Re: My evolution of my M998

Post by Retired War Horses » Wed Sep 16, 2020 8:14 am

I don’t use the battery’s from the truck, I remove the connector from the box, it’s only for charging the turret batteries.
Once the turret turns, it disconnects from the truck to truck batteries and runs direct from the batteries on turret.
I was told the truck battery setup causes all kind of issues.
You can’t rotate the turret when connected from below...
Retired War Horses Restoration

Call us for all your HMMWV parts, service, upgrades and conversion needs.

User avatar
Hell On Wheels
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1190
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: My evolution of my M998

Post by Hell On Wheels » Wed Sep 16, 2020 8:33 am

OK so I can use the power charging cables because I still need to build the battery box on the turret to run it constant but yes I did actually remove those two charging cables because I didn’t plan on using that connection plus I was always hitting my head when I climbed inside the turret with those darn cables but for the sake of testing it I put them back on
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

User avatar
Retired War Horses
G-Brigadier General
G-Brigadier General
Posts: 2363
Joined: Sun Jan 11, 2004 11:45 am
Location: Northern Calif
Contact:

Re: My evolution of my M998

Post by Retired War Horses » Wed Sep 16, 2020 8:36 am

Same here, it’s just to obtrusive....but I never tried to power it on just the quick disconnect cable from the truck batteries.
I never installed it...just used the batteries on the turret.
Retired War Horses Restoration

Call us for all your HMMWV parts, service, upgrades and conversion needs.

User avatar
Hell On Wheels
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1190
Joined: Fri May 04, 2007 2:19 pm
Location: San Antonio, TX
Contact:

Re: My evolution of my M998

Post by Hell On Wheels » Wed Sep 16, 2020 9:37 am

Can you send me a picture of the compartment and dimensions so I can make one. A picture of the top view side view of it I would really appreciate it thank you
Robert

1966 - M151A1
1986 - M998
2007 - M1102
2009 - H3T

User avatar
86humv
G-Major General
G-Major General
Posts: 2660
Joined: Sat Aug 20, 2005 12:54 pm
Location: Texas

Re: My evolution of my M998

Post by 86humv » Thu Sep 17, 2020 6:42 pm

M1151 motor bracket...Available
86 Hmmwv
Lots A parts
M101A2 trailer
M1102 trailer
