in the interest of safety

1941 - 1945, MB, GPW modifications, sugestions, and ideas, official MWO's and unofficial WWII field mods NO EBAY or COMMERCIAL SALES.
Chuck Lutz
Gee Addict
Posts: 25396
Joined: Wed Jun 28, 2006 8:00 am
Location: Novato, CA

Re: in the interest of safety

Post by Chuck Lutz » Mon Aug 27, 2018 11:31 am

It's true; the standard jeep taillight is just not going to cut it when you are doing 45 MPH on a road and traffic is going 65 MPH+. The best Idea is to avoid night driving especially in fog or drizzle, but not only were the taillight assemblies not designed for the vehicle to be overtaken on the roads by other vehicles going 20 MPH or more, the wimpy red "lozenge" tail light is too dim and gets lost in a following drivers' field of vision with oncoming traffic and other vehicles in adjoining lanes that overtake you at that speed differential.

Aside from just not driving at night, the solutions are few:
1) have TWO tail/brake lights on the rear
2) change to LEDs
3) add an additional one or two tail/brake lights at the height of the top of the rear tub rail on a removable light bar
4) add some reflective red/white tape to the light bar for #3 added lights (the stuff semi trailers have across the rear bumpers)

If you have a trailer socket on the rear panel of the jeep, wiring in additional tail/brake lamps is easy, just up to your imagination where to put them and how many!
Chuck Lutz

GPW 17963 4/24/42 Chester, PA. USA 20113473 (USA est./Tom W.)
GPW 108552 4/17/43 Louisville, KY. USA 20371278 (DOD est./Tom W.)
Bantam T3 4582 10/29/42 USA 0173499 (est.)

Rod Rushton
G-Captain
G-Captain
Posts: 731
Joined: Thu Sep 01, 2011 9:40 am
Location: South West England

Re: in the interest of safety

Post by Rod Rushton » Wed Aug 29, 2018 12:55 pm

I also use the front Black - out Marker lights as indicators, but paint the inside of the casings white or silver and remove the masks/flags and bead blast the inside of the lens.
As I have converted to 12v, My headlight units incorporate a little bulb I use for the side (marker ) lights, and these lens units have double filament Quartz Halogen bulbs. All the lights are powered trough relays, which are controlled by the switches thus reducing the amount of power they need to handle.
I do have a pair of large magnetic rear lights which plug into the rear socket which has been converted to UK 7 pin s, but kept the spring loaded cover to hide the socket - which I also use when towing my caravan.
Rod Rushton - Winner 2013 MVT Wilkinson Sword Trophy
Exeter Devon UK
FORD GPW 202055 DoD 5 - 22 - 44 Serial# 20534360
MBT # 25553 DoD 4 - 43
Piper Cub 1944 L4H 480015 G-AKIB

1942 CHEVROLET G506 CARGO. #2NM 213219
1943 AUSTIN LIGHT UTILITY M6448770

Bentley11b
G-Corporal
G-Corporal
Posts: 17
Joined: Thu Jun 30, 2016 8:31 pm
Location: Charlotte, NC

Re: in the interest of safety

Post by Bentley11b » Wed Oct 03, 2018 3:52 am

Going thru this dilemma now. What is the best way to get into the lens? Tried using a screw driver to pry it open. Also, what kind of LEDs? Where do you find them? Thanks!
1945 GPW Serial# GPW246427
Command Sergeant Major, USA

Ben Dover
Gee Addict
Posts: 46115
Joined: Sun Mar 02, 2008 2:37 pm
Location: Proving Ground

Re: in the interest of safety

Post by Ben Dover » Wed Oct 03, 2018 4:56 am

If I were to make a practice of frequent in big city traffic, I would wire up a set of those $20.00 Magnetic tail lights such as U Haul offers and have the security of visible tail lights. The public is not impressed with little O.D. color vehicles with no signals from taillights they cannot see.

Malachi Springer, might still be with us had his MB been more visible.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO

Bentley11b
G-Corporal
G-Corporal
Posts: 17
Joined: Thu Jun 30, 2016 8:31 pm
Location: Charlotte, NC

Re: in the interest of safety

Post by Bentley11b » Wed Oct 03, 2018 6:04 am

Thought of wiring up some temp/removable lights for that purpose. Still, would like to switch out the standard bulbs for some LEDs.

Agreed, so sad about Malachi.
1945 GPW Serial# GPW246427
Command Sergeant Major, USA


User avatar
tamnalan
G-Lieutenant General
G-Lieutenant General
Posts: 6124
Joined: Sat Feb 02, 2008 11:58 am
Location: SW Oregon
Contact:

Re: in the interest of safety

Post by tamnalan » Wed Oct 24, 2018 5:36 pm

I use my MB a lot and got tired of hearing the squealing brakes behind me... I made up some 6v LED tail/brake lights from reflector assemblies and some 4" PVC pipe. I agree with Ernie -- nobody knows what hand signals are anymore. People would just wave back at me.



Alan W. Johnson
_______________
MB, 201453, "Lt Bob"
M-100, Sep 1951
MB-TD, Mar 2012
Ford 91C, 1939

cjv-35
G-Colonel
G-Colonel
Posts: 1932
Joined: Mon Dec 18, 2006 7:06 pm
Location: San Mateo, Ca

Re: in the interest of safety

Post by cjv-35 » Thu Oct 25, 2018 12:45 pm

I switched out the dangerous OEM military lights and went with repop CJ-2A Naco lights. Jeep is daily driver, weather permitting. Made my own harness so both operate as turn signals also. Can change back if needed, but I want people to see me both day and night. Original style 6-volt OEM system and lights are easily visible to other motorists. Not original, but safe in my opinion.

Chuck Lutz
Gee Addict
Posts: 25396
Joined: Wed Jun 28, 2006 8:00 am
Location: Novato, CA

Re: in the interest of safety

Post by Chuck Lutz » Fri Oct 26, 2018 5:15 pm

Paul Fitzgerald makes the best, brightest 6-volt or 12-volt taillights for WWII jeeps. Look in the For Sale section or SEARCH him by name on the gee.
Chuck Lutz

GPW 17963 4/24/42 Chester, PA. USA 20113473 (USA est./Tom W.)
GPW 108552 4/17/43 Louisville, KY. USA 20371278 (DOD est./Tom W.)
Bantam T3 4582 10/29/42 USA 0173499 (est.)

User avatar
tamnalan
G-Lieutenant General
G-Lieutenant General
Posts: 6124
Joined: Sat Feb 02, 2008 11:58 am
Location: SW Oregon
Contact:

Re: in the interest of safety

Post by tamnalan » Fri Oct 26, 2018 9:00 pm

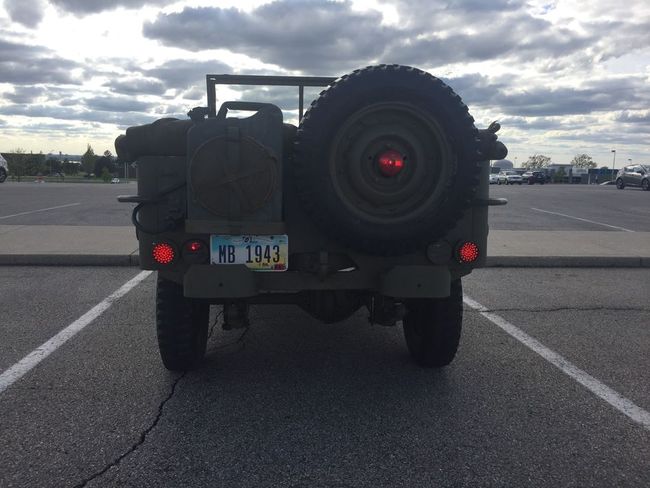

That’s one of Paul’s LED bulbs in the stock housing on my MB. It is much brighter than the stock bulb, but you can see how it compares to my homemade lights.
Alan W. Johnson
_______________
MB, 201453, "Lt Bob"
M-100, Sep 1951
MB-TD, Mar 2012
Ford 91C, 1939

northcoastsailor
G-Sergeant
G-Sergeant
Posts: 48
Joined: Wed Jan 10, 2018 7:35 pm

Re: in the interest of safety

Post by northcoastsailor » Wed Feb 20, 2019 7:31 pm

Will the gama goat lights mount in the same holes as the normal MB lights? I drive my jeep all over the SF Bay Area and desperately need to be seen.
GP-MB-2A "Old Crow" (Mostly MB 432554)

User avatar
tamnalan
G-Lieutenant General
G-Lieutenant General
Posts: 6124
Joined: Sat Feb 02, 2008 11:58 am
Location: SW Oregon
Contact:

Re: in the interest of safety

Post by tamnalan » Wed Feb 20, 2019 9:34 pm

The Gama Goat lenses fit M-series housings which are different than the WWII taillights but I believe the housing bolt patterns (for mounting to the Jeep tub) are the same.

My recommendation is to source an intervehicular cable - plug one end into your trailer socket and wire an aftermarket light assembly to the other end, and mount the light in the center of your spare tire. I felt much safer with this.

Brent Mullins in Texas should have the cables if Ron doesn’t.
Alan W. Johnson
_______________
MB, 201453, "Lt Bob"
M-100, Sep 1951
MB-TD, Mar 2012
Ford 91C, 1939

OldPappy
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 340
Joined: Wed Mar 28, 2018 5:22 pm
Location: USA - East Tennessee

Re: in the interest of safety

Post by OldPappy » Wed Mar 13, 2019 7:49 am

Of course this would not appeal to anyone who shows their Jeep, but for a road Jeep that will be driven on public roads it only makes sense to upgrade the lighting on the rear.

I thought about the reproduction CJ-2A Naco lights, but I like another look better. I am considering the reproduction Model A Ford taillights (often used on hot rods and motorcycles too). These are available with LED bulbs.

I think they would be an easy fit, and look a little more "period correct". They come with glass lenses instead of the plastic used on most of the Naco reproductions I have seen.
A.C.Fults
East Tennessee
Shade Tree Mechanic more than 50 years.
None of us are as smart as we pretend to be.

Ben Dover
Gee Addict
Posts: 46115
Joined: Sun Mar 02, 2008 2:37 pm
Location: Proving Ground

Re: in the interest of safety

Post by Ben Dover » Wed Mar 13, 2019 7:57 am

M-Series tail Light housungs will fit the MB/GPW Brackets, but require a larger hole in the body. They are too big.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO

Ben Dover
Gee Addict
Posts: 46115
Joined: Sun Mar 02, 2008 2:37 pm
Location: Proving Ground

Re: in the interest of safety

Post by Ben Dover » Wed Mar 13, 2019 8:39 am

Paulie advertised his LED conversions of WWII Service bulbs on here, I can't find it now. It's worth a look.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO

timsresort
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 318
Joined: Sun Dec 12, 2010 12:05 pm
Location: South Lake Tahoe CA

Re: in the interest of safety

Post by timsresort » Wed Mar 20, 2019 7:23 pm

I am searching for Paul's post also, now can't find it. I would really like to get some lights before Plymouth. Chuck, you have his info?
41 WC-16
41 Lavine Gear !-ton trailer
51 M37
53 CJ3B
65 CJ5A
(2) 67 CJ5
46 Bantam T3-C #2376
67 M416
68 M274A5
MVPA #20343
