slat headlight brackets

Post by gpw1944 » Thu Jan 25, 2018 3:06 am

Does any one have a original grill with the headlight mounting bolts intact, I am try to figure if the bolts to mount the headlight bracket come up and are attached with the nut and washer on the top of the grill, I have seen both?
Also I have a original slat grill rear seat and there are no drain holes in the indents for the strengthening of the bottom seat section, yet standard seats have the drain holes? Thanks Nick
GP 15195
MA 79104
MB105263
MB102350
Ford GPA 3321

Mark Jesic
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1087
Joined: Sun Jun 12, 2016 5:56 am
Location: Birmingham, England

Re: slat headlight brackets

Post by Mark Jesic » Thu Jan 25, 2018 4:51 am

Nick, on my slattie, the rear lower seat has one drain hole by the curve on each side, there are no holes on the indents.

User avatar
Michael O.
G-Lieutenant General
G-Lieutenant General
Posts: 4736
Joined: Wed Feb 26, 2003 2:29 am
Location: Omaha, Nebraska

Re: slat headlight brackets

Post by Michael O. » Thu Jan 25, 2018 6:37 am

The nuts should be facing up. My Jan ‘42 MB also had four TR/20 bolts (two on each arm) in this location.
Cry “Havoc!”, and let slip the dogs of war

WC4 8668603
MB 111414
GPW 2647
GPW 104111
MB 369488
MB 379204

MVPA #13861

User avatar
ajlang
G-Second Lieutenant
G-Second Lieutenant
Posts: 584
Joined: Wed Jun 14, 2006 5:09 am
Location: Newnan, GA

Re: slat headlight brackets

Post by ajlang » Thu Jan 25, 2018 8:17 am

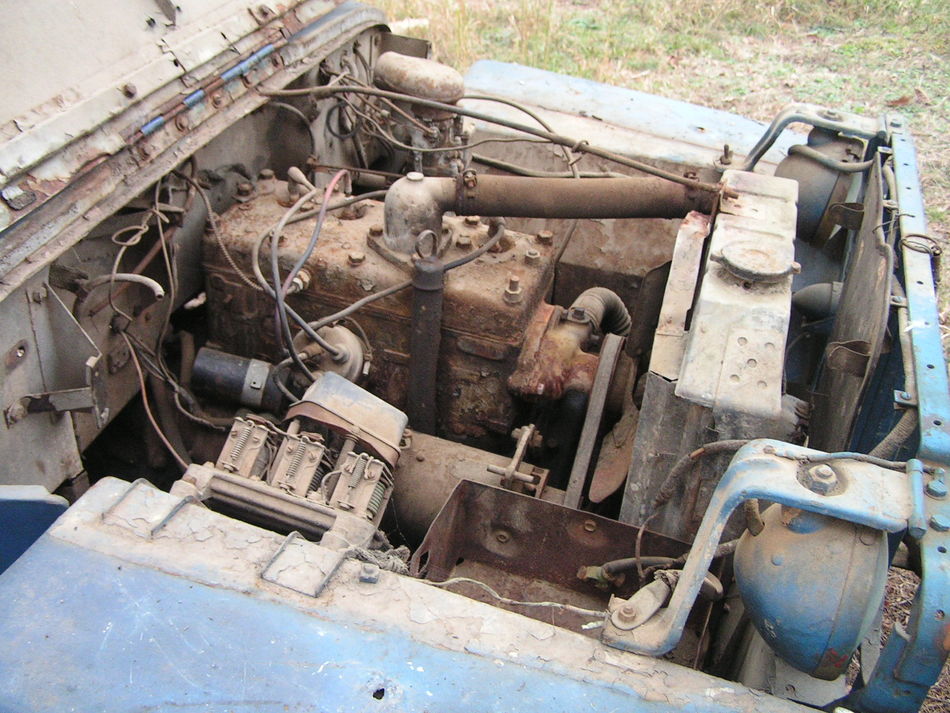

All the slats I have come across have been bolt head up. Anybody have a larger version of this image?

User avatar
ajlang
G-Second Lieutenant
G-Second Lieutenant
Posts: 584
Joined: Wed Jun 14, 2006 5:09 am
Location: Newnan, GA

Re: slat headlight brackets

Post by ajlang » Thu Jan 25, 2018 8:37 am

For what its worth, here a a few pictures I have collected over the years of a couple of slats.
Attachments


gpw1944
G-Master Sergeant
G-Master Sergeant
Posts: 100
Joined: Sat Jan 16, 2010 6:20 am

Re: slat headlight brackets

Post by gpw1944 » Sat Jan 27, 2018 6:18 am

Thank you guys for your replies, another question for slat owners, the rear panel footman loops for the top canvas do the two loops on each corner have the backing plate? Regards Nick
GP 15195
MA 79104
MB105263
MB102350
Ford GPA 3321

Mark Jesic
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1087
Joined: Sun Jun 12, 2016 5:56 am
Location: Birmingham, England

Re: slat headlight brackets

Post by Mark Jesic » Sat Jan 27, 2018 10:26 am

No they dont Nick. :D

User avatar
Michael O.
G-Lieutenant General
G-Lieutenant General
Posts: 4736
Joined: Wed Feb 26, 2003 2:29 am
Location: Omaha, Nebraska

Re: slat headlight brackets

Post by Michael O. » Sat Jan 27, 2018 2:54 pm

So the accepted standard is bolt heads up on the headlight arms? Mine must have been switched at some point then.
Cry “Havoc!”, and let slip the dogs of war

WC4 8668603
MB 111414
GPW 2647
GPW 104111
MB 369488
MB 379204

MVPA #13861

Ben Dover
Gee Addict
Posts: 41965
Joined: Sun Mar 02, 2008 2:37 pm
Location: Proving Ground

Re: slat headlight brackets

Post by Ben Dover » Sat Jan 27, 2018 5:15 pm

Makes more sense to have the bolt head on top so as not to interfere with the use of the headlamps to illuminate the engine compartment.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO

User avatar
ajlang
G-Second Lieutenant
G-Second Lieutenant
Posts: 584
Joined: Wed Jun 14, 2006 5:09 am
Location: Newnan, GA

Re: slat headlight brackets

Post by ajlang » Sat Jan 27, 2018 5:18 pm

Michael O. wrote:
Sat Jan 27, 2018 2:54 pm
So the accepted standard is bolt heads up on the headlight arms? Mine must have been switched at some point then.
Hi Michael ... I think so. However, on GPWs isn't it the opposite?
Attachments
GPW Engine Bay

User avatar
Michael O.
G-Lieutenant General
G-Lieutenant General
Posts: 4736
Joined: Wed Feb 26, 2003 2:29 am
Location: Omaha, Nebraska

Re: slat headlight brackets

Post by Michael O. » Sat Jan 27, 2018 5:24 pm

Yes, on GPW's the bolt heads face down.

I thought the TR/20's on my Slat Grill's headlight arms were positioned facing down but it's been a while since I removed the so maybe I'm wrong.
Cry “Havoc!”, and let slip the dogs of war

WC4 8668603
MB 111414
GPW 2647
GPW 104111
MB 369488
MB 379204

MVPA #13861

Ben Dover
Gee Addict
Posts: 41965
Joined: Sun Mar 02, 2008 2:37 pm
Location: Proving Ground

Re: slat headlight brackets

Post by Ben Dover » Sun Jan 28, 2018 9:59 am

Lloyd White's Book on the GPW Jeep has photos on Pages 115, 239, 247 that give a hint of the Head Light hinge bolt orientation, it is contrary to what I thought. There are many other photos from WWII of Jeeps that also give a hint of the hinge being under or over the grill.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO

User avatar
DavidA
Equipment Operator, Heavy -2nd Class
Equipment Operator, Heavy -2nd Class
Posts: 6072
Joined: Sat Dec 14, 2002 9:15 am
Location: Millbrae, CA
Contact:

Re: slat headlight brackets

Post by DavidA » Sun Jan 28, 2018 10:26 pm

After having rebuilt four of these grills myself and removing the headlight hinge remains, I never really paid a whole lot of attention however it was my impression from previous discussions that the bolts were upside down in the Ford and that the early MB ones were right side up.

So I asked Ernie Ongaro to look at his unmolested original 12.31.41 grill to see what position those bolts were in and he provided me with this.

Also is the one I spotted at a friends place in Germany. His was located so that the bolt heads were opposite and the outer one didn't bump the hood. I vaguely remember disassembling an original one that was done that way too. :?
Attachments
Ton B. Slat .png
Ton B. Slat .png (254.1 KiB) Viewed 429 times
Ernies headlight bolts slat.png
Ernies headlight bolts slat.png (241.02 KiB) Viewed 430 times
