Re: Wartime 1/4" drive socket sets

Post by frenchman » Tue Dec 26, 2017 11:01 pm

hi don
the screw driver is a M21 im still looking for the short nut driver to conplete my set
frenchman

User avatar
d42jeep
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1165
Joined: Tue Feb 25, 2014 6:06 pm
Location: Albany/Fallen Leaf Lake, CA
Contact:

Re: Wartime 1/4" drive socket sets

Post by d42jeep » Wed Dec 27, 2017 3:49 am

It’s good that you have the screwdriver bit, that’s one I’m missing for my set. If the part numbers in the set start with M, that means that the set is 9/32” drive. The spinner that you need is an M-4. It looks to me as if the ratchet is stamped with a G which would mean that it was made in 1945. I believe that was the final year that Snap-on produced the 9/32” drive tools. I ran across three 9/32” drive flex handles recently at an estate sale. I used two of them in my 9/32” sets but have an extra if you would like to add it to your set. They were all made in 1945. The bottom one in the picture is the extra.
-Don
Attachments
Snap-on 9/32” drive flex handles
Ford GPW 76344 DOD 11/42 Built in Richmond, CA

frenchman
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 471
Joined: Sun Dec 20, 2009 11:35 pm

Re: Wartime 1/4" drive socket sets

Post by frenchman » Wed Dec 27, 2017 6:19 pm

thank you don for helping me find the nut driver it is on is way
i'll take that spender from you
thank you sending you an email
frenchman

frenchman
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 471
Joined: Sun Dec 20, 2009 11:35 pm

Re: Wartime 1/4" drive socket sets

Post by frenchman » Wed Dec 27, 2017 8:19 pm

hello
here is my 1/4 BE craftsman sockets set circa 1944 or before
frenchman

frenchman
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 471
Joined: Sun Dec 20, 2009 11:35 pm

Re: Wartime 1/4" drive socket sets

Post by frenchman » Fri Jan 12, 2018 4:51 pm

hello
being playing with my 1/4 and 9/32 socket set
and get to find it could be expensive when you
buy the little missing parts again thank's to don
for helping
frenchman


User avatar
d42jeep
G-Lieutenant Colonel
G-Lieutenant Colonel
Posts: 1165
Joined: Tue Feb 25, 2014 6:06 pm
Location: Albany/Fallen Leaf Lake, CA
Contact:

Re: Wartime 1/4" drive socket sets

Post by d42jeep » Fri Jan 12, 2018 7:48 pm

Frenchman,
Those look great. It's a good feeling to complete a set. Thanks for posting yours!
-Don
Ford GPW 76344 DOD 11/42 Built in Richmond, CA

frenchman
Sergeant Major of the Gee
Sergeant Major of the Gee
Posts: 471
Joined: Sun Dec 20, 2009 11:35 pm

Re: Wartime 1/4" drive socket sets

Post by frenchman » Fri Jan 12, 2018 8:00 pm

hi don
you right about that a very good feeling
frenchman

User avatar
Hartofoak
G-Captain
G-Captain
Posts: 749
Joined: Tue Nov 23, 2010 4:06 pm
Location: Berkshire England

Re: Wartime 1/4" drive socket sets

Post by Hartofoak » Sat Jan 13, 2018 7:35 am

Just in case you missed this post here are a few more 9/32" flex-heads if you want them ....
viewtopic.php?f=48&t=285629&hilit=flexheads
MB 298781 DoD: est. 01-19-44 (ex British Army 1958)
T1 Trailer: Transportation Equipment Co.
MVMTS toolboxes & tools

kw573
G-Major
G-Major
Posts: 860
Joined: Mon Aug 11, 2008 11:48 pm
Location: Near Bundaberg, Australia.

Re: Wartime 1/4" drive socket sets

Post by kw573 » Fri Feb 02, 2018 3:38 pm

Hello Gentlemen,
I have some interest in this thread as I am slowly putting together a 1/4" drive socket set as part of the M1A1 Heavy wrecker tool set. I continue to be stunned with the goodies some of you turn up with. :o

Here is the TM picture of it.

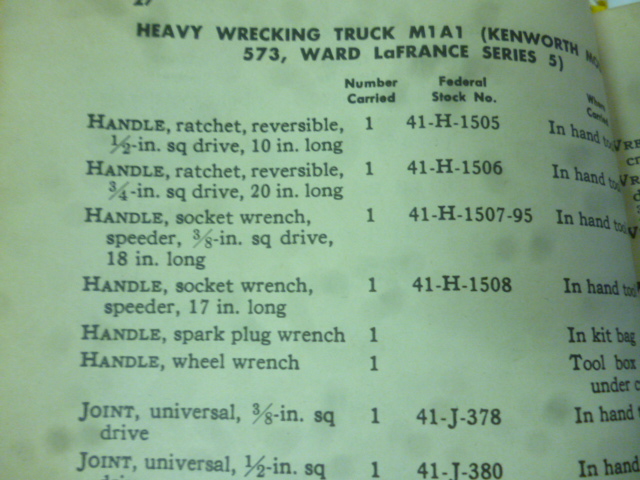

And the listing of the sockets.



The listing for the bar.

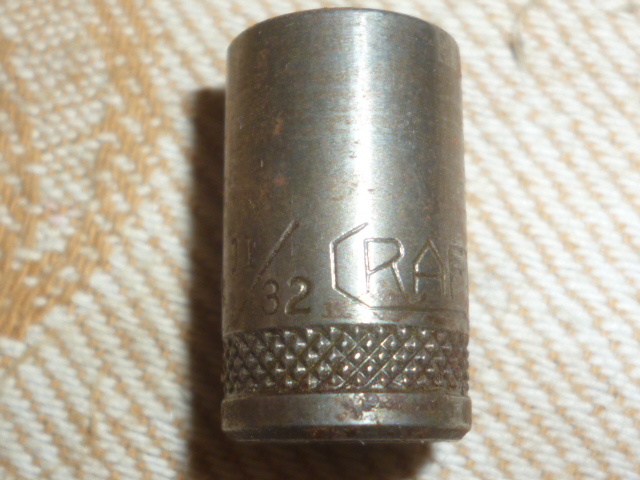

I settled on Craftsman underline circle H sockets for this tool box. Here an example.

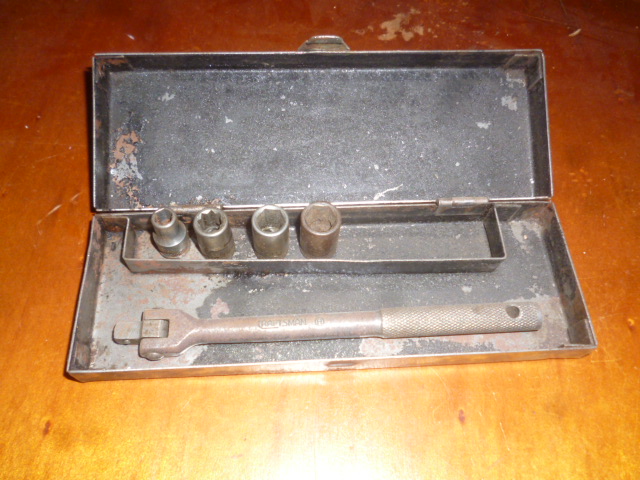

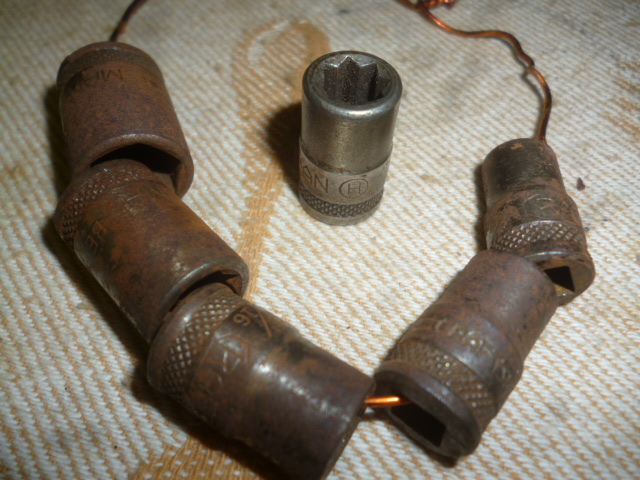

This what I have collected thus far. The 8pt is wrong for this set.


As well as the swivel head bar, I have the 7/32, 11/32 and 3/8 sockets and have opted for single hex for this set as I have yet to see a double hex in these sockets. However, in my ignorance, I have bought (all from epay = expensive) several close-but-not-close-enough sockets which are now up for swap/trade. To this end, I am hoping that some may be able to help me/I help some. The down side is that I am in Australia and shipping generally doubles the cost of these items for me. These are simply non-existent downunder.

To Swap/trade: (sr=surface rust)

1/4" drive sockets-
- 1/4" underline H 8pt.
- 1/4" underline BE 6pt. sr
- 9/32" non underline H 6pt. sr
- 5/16" underline BE 6pt. sr
- 5/16" underline BE 8pt. sr
- 7/16" underline BE 6pt. sr


Also seeking some 3/8" and 1/2"dr. items.
Can anyone help?
Thanks.

Sam.
Downunder.
1942 Script GPW (Daily driver).
Willys MB.
2 x Diamond T 969.
Kenworth M1A1 Heavy Wrecker.
3ton GS (Blitz) Trailer.
150gal water tanker trailer.

User avatar
Wingnutt
G-Lieutenant General
G-Lieutenant General
Posts: 3981
Joined: Mon Oct 24, 2011 2:17 pm

Re: Wartime 1/4" drive socket sets

Post by Wingnutt » Fri Feb 02, 2018 5:55 pm

Hi Sam,

Interesting set. Are you sure there's no other 1/4-inch handles listed in the SNL? The photo makes it look like there're two (2) handles in the box. Or something else in the box with the hinge or flex head handle at least - and whatever it is, it's too big in diameter to be the cross bar. Maybe a sliding tee handle, with the drive head slid all the way to the left? That's what it looks like to me. Also, where is the SNL page for the hinged or flex head handle? The page you are showing with the bar is the cross bar for the hole nearing the end of the hinge handle, to turn the hinge handle like a tee bar. See if there is another handle listed on the page where the actual hinged handle is listed.
TEMPORARY DUTY

kw573
G-Major
G-Major
Posts: 860
Joined: Mon Aug 11, 2008 11:48 pm
Location: Near Bundaberg, Australia.

Re: Wartime 1/4" drive socket sets

Post by kw573 » Fri Feb 02, 2018 6:36 pm

Hi Wingnut,

Hmmm, good question, I've never noticed that, that I recall! Sure does look like a Tee handle.

I had a very careful look through the list in the TM, there are offset hinged handles, speeder handles, ratchet handles, and that's it for the sockets. The 3/8"dr. set, 1/2"dr. set and 3/4"dr. set do not have tee handles either.


So, I dunno what that is. Maybe that item is an error? Wouldn't be the first time. Anyone?

Sam.
1942 Script GPW (Daily driver).
Willys MB.
2 x Diamond T 969.
Kenworth M1A1 Heavy Wrecker.
3ton GS (Blitz) Trailer.
150gal water tanker trailer.

User avatar
Wingnutt
G-Lieutenant General
G-Lieutenant General
Posts: 3981
Joined: Mon Oct 24, 2011 2:17 pm

Re: Wartime 1/4" drive socket sets

Post by Wingnutt » Fri Feb 02, 2018 6:58 pm

Maybe it's just a trick of the light or shadow or something. The hinge handle shown in the set is listed on that page. It's the 41-H-1502-75.
TEMPORARY DUTY

kw573
G-Major
G-Major
Posts: 860
Joined: Mon Aug 11, 2008 11:48 pm
Location: Near Bundaberg, Australia.

Re: Wartime 1/4" drive socket sets

Post by kw573 » Sat Feb 03, 2018 1:16 am

Yes, it could be.

Yes, I thought so.

What underline H spares do you have laying about?
Sam.
1942 Script GPW (Daily driver).
Willys MB.
2 x Diamond T 969.
Kenworth M1A1 Heavy Wrecker.
3ton GS (Blitz) Trailer.
150gal water tanker trailer.

User avatar
lucakiki
G-General
G-General
Posts: 17530
Joined: Sat Feb 15, 2003 9:18 am
Location: Torino, ITALY

Re: Wartime 1/4" drive socket sets

Post by lucakiki » Sun Feb 04, 2018 9:43 am

The 1/4 " drive Snap On sockets sets were introduced only in 1945: a fact that should be kept in mind when assembling an earlier than 1945 General Mechanic Toolbox.
Luca

WillysMB#344142 6-19-44 Navy N.S.Blue Grey
45 Bantam T-3 #57248 1-10-45
42 Willys MB-T #13560 11-42
43 Willys MB-T # 25417 4-43
Way too many WWII military tools,hopefully thinning down,and way too many posts...

__________________________________________
_____________________________________________
__________________________________________

User avatar
mudbox
G-Colonel
G-Colonel
Posts: 1217
Joined: Wed Oct 27, 2010 4:09 pm

Re: Wartime 1/4" drive socket sets

Post by mudbox » Sun Feb 04, 2018 10:00 am

Hey Sam!
Previously, we identified that box and tools as P&C, correct? So, it would make sense that the midget set is also P&C.
I do recall you saying that you were going with Craftsman for the complete set when we identified the box.
How’s the search for 3/4” drive stuff coming along?

To my eye, it looks like the handles in the box are the flex head (breaker) and the sliding T bar.

I have a couple of (H) sockets but I’ll have to check on the sizes. I know I can come close to a full set between the various New Britain made brands though. If you’re at all interested in a mixed brand set. They would all have the same appearance, but brands would be Husky, None Better, New Britain, Craftsman BE and (H). I’ll look this evening (maybe at half time ;) and compare what I have in total across your list.

-Jason
