Firewall Holes Reference

1941 - 1945, MB, GPW Technical questions and discussions, regarding anything related to the WWII jeep.
Post Reply
G-Major General
G-Major General
Posts: 3113
Joined: Sat Jul 24, 2010 10:49 pm
Location: Magnolia, Texas

Firewall Holes Reference

Post by thidisbogus » Mon Jul 30, 2012 9:13 pm

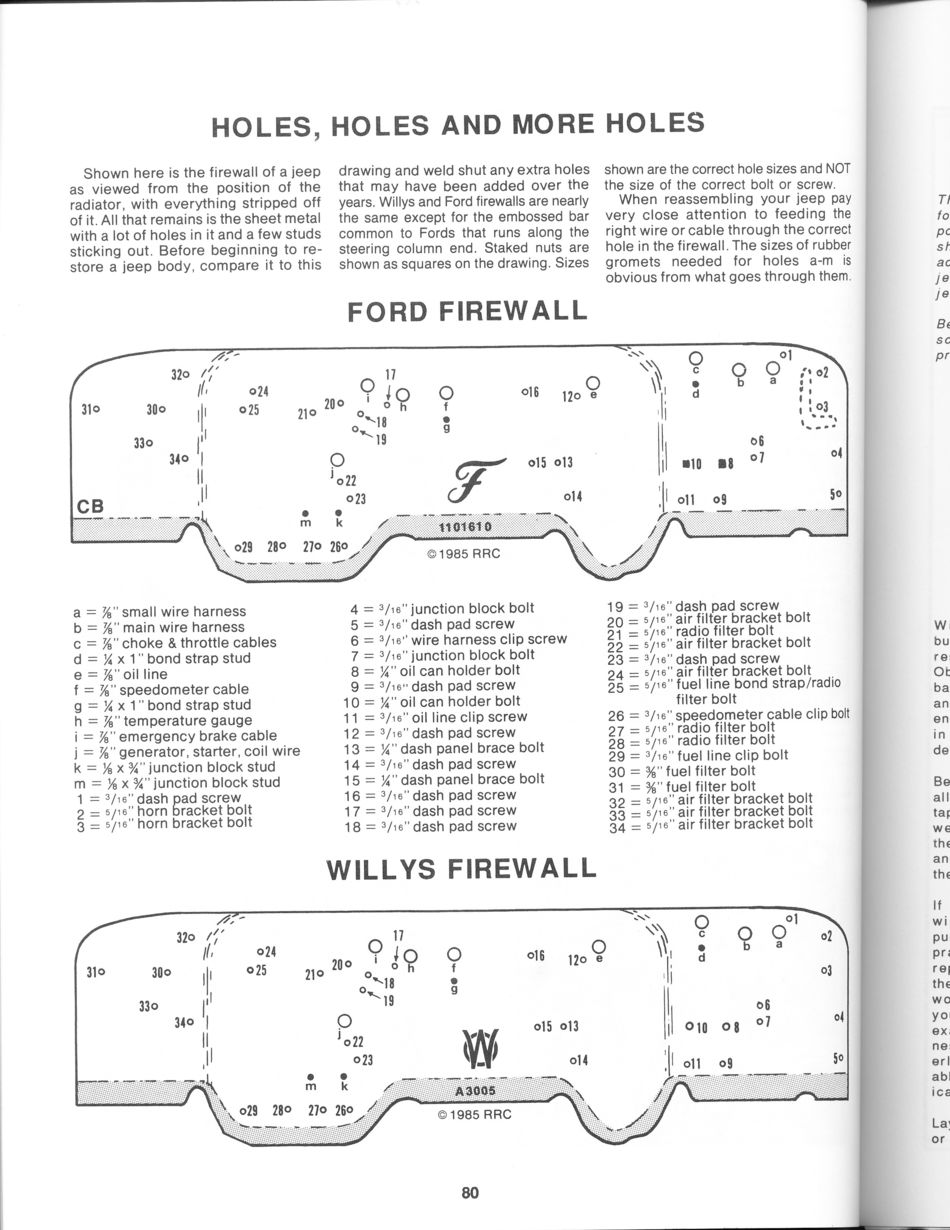

I figured I would upload this for those who are confused about what is correct to go through what holes on the firewall. This is from AAW Volume 1:


1943 GPW 124269
Estimated DoD 07-12-43
Motorpool Restoration
Project Thread:"

1952 M100 Trailer--MCI / M100 CDN / 0150
Motor Coach Industries Limited
DoD 12-52
Project Thread: viewtopic.php?f=18&t=257013

Lew Ladwig
G-Major General
G-Major General
Posts: 3020
Joined: Wed Dec 25, 2002 8:58 pm
Location: Lafayette, Colorado

Re: Firewall Holes Reference

Post by Lew Ladwig » Fri May 10, 2013 4:01 pm

Keep in mind that a late jeep does not use 27-31.
Lew Ladwig
CMHG, 9th ID, Commander
BSA Crew 42 Advisor, 9th ID reenactors
CFFC, IFFC president
2-'47 cj2a's
1-'45 gpw in full resto mode

G-Sergeant Major
G-Sergeant Major
Posts: 152
Joined: Mon Mar 04, 2013 12:10 pm

Re: Firewall Holes Reference

Post by LouVita » Tue Oct 22, 2013 9:20 am


Is the AAW MB hole layout correct for the Slat Grille? If not, do you know where I can find that layout?
