Parking Brake Handle to Cable rivet

Post by Michael O. » Tue Jan 03, 2017 9:44 am

Can anyone post a photo of the parking brake handle tube connection point to the parking brake cable? I know the cable has a cup that fits over the handle tube. There are holes for a rivet or both to hold these pieces together but I have never actually seen how they are affixed. Any photos showing this would be greatly appreciated. Thanks in advance!
Cry “Havoc!”, and let slip the dogs of war

WC4 8668603
MB 111414
GPW 2647
GPW 104111
MB 369488
MB 379204

MVPA #13861

Chuck W.
G-Lieutenant General
G-Lieutenant General
Posts: 5091
Joined: Wed Dec 18, 2002 1:00 pm

Re: Parking Brake Handle to Cable rivet

Post by Chuck W. » Tue Jan 03, 2017 10:45 am

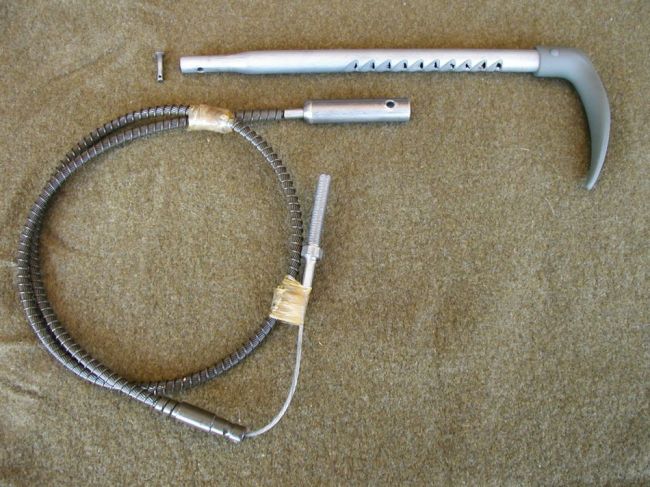

Late MB, early CJ2A style parking brake handle? Just uses a pin and cotter pin, no rivet.


viewtopic.php?f=5&t=140835

User avatar
Michael O.
G-Lieutenant General
G-Lieutenant General
Posts: 4804
Joined: Wed Feb 26, 2003 2:29 am
Location: Omaha, Nebraska

Re: Parking Brake Handle to Cable rivet

Post by Michael O. » Fri Oct 13, 2017 8:21 am

Does anyone know the size of the small clevis pin which secures the tube to the cable?
Cry “Havoc!”, and let slip the dogs of war

WC4 8668603
MB 111414
GPW 2647
GPW 104111
MB 369488
MB 379204

MVPA #13861

Ben Dover
Gee Addict
Posts: 42260
Joined: Sun Mar 02, 2008 2:37 pm
Location: Proving Ground

Re: Parking Brake Handle to Cable rivet

Post by Ben Dover » Fri Oct 13, 2017 9:06 am

I do.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO

User avatar
Michael O.
G-Lieutenant General
G-Lieutenant General
Posts: 4804
Joined: Wed Feb 26, 2003 2:29 am
Location: Omaha, Nebraska

Re: Parking Brake Handle to Cable rivet

Post by Michael O. » Sat Nov 04, 2017 2:27 pm

Ben Dover wrote:
Fri Oct 13, 2017 9:06 am
I do.
That’s great. Care to share for the benefit of our jeep community?
Cry “Havoc!”, and let slip the dogs of war

WC4 8668603
MB 111414
GPW 2647
GPW 104111
MB 369488
MB 379204

MVPA #13861


Ben Dover
Gee Addict
Posts: 42260
Joined: Sun Mar 02, 2008 2:37 pm
Location: Proving Ground

Re: Parking Brake Handle to Cable rivet

Post by Ben Dover » Sat Nov 04, 2017 3:06 pm

I responded to your query back on Friday the 13th. Looked it up twice, in fact.
2011 MVPA PIONEER AWARD - MVPA #1064
HONOR GRAD-WHEELED VEHICLE MECHANIC SCHOOL 1960 - US ARMY ORDNANCE SCHOOL(MACHINIST) ABERDEEN PG 1962 - O-1 BIRD DOG CREWCHIEF - 300,000+TROUBLE FREE M-38A1 MILES
LIFE MEMBER AM LEGION-40/8-DAV
7 MIL SPEC MAINTAINED MV'S
COL. BRUNO BROOKS (ARMY MOTORS) IS MY HERO
