Mule serial #

Post by Hanselandgretel » Mon Dec 12, 2016 6:49 pm

Is there a serial number stamped in the frame or somewhere on the mule and where is it? I bought a mule and it has no tags on it so I don't even know what model it is! Thanks

Chuck W.
G-Lieutenant General
G-Lieutenant General
Posts: 5073
Joined: Wed Dec 18, 2002 1:00 pm

Re: Mule serial #

Post by Chuck W. » Mon Dec 12, 2016 9:38 pm

No, not stamped any place other than the data plate. Post some photos and we'll see if we can figure out what you have. 2-cylinder or 4-cylinder?? 2-wheel steer or 4-wheel steer?? Magnesium or aluminum deck??

Hanselandgretel
G-First Sergeant
G-First Sergeant
Posts: 148
Joined: Thu Jun 21, 2007 6:07 pm
Location: Claremont, MN

Re: Mule serial #

Post by Hanselandgretel » Tue Dec 13, 2016 8:02 pm

I appreciate the help. I will try post some pictures but I usually have trouble reducing the size. What parts are important to take pictures of to identify the model? It is 2 cyl, mag deck, 4 wheel steer.

Chuck W.
G-Lieutenant General
G-Lieutenant General
Posts: 5073
Joined: Wed Dec 18, 2002 1:00 pm

Re: Mule serial #

Post by Chuck W. » Tue Dec 13, 2016 8:46 pm

The brake drum, the rear deck supports between the frame tubes, and the rear of the deck.

If it is a 2-cylinder and 4-wheel steer, it's one of three models: M274A2, or a converted 4-cylinder model, i.e., M274A3 or M274A4. If it has the small brake drum, it's an M274A3 (converted M274) If it has the large brake drum, look for the 4 holes in the RR of the deck where the right muffler was mounted. If you find the holes, it's an M274A4 (converted M274A1),It will also have 2" spacer blocks on the rear deck cross support. If no holes or spacer blocks, it's an M274A2.

Can you see the registration number that was painted on the LR and RF side of the deck? If you can find the painted registration number, I can tell you more.

Check this thread for more information on models and production figures: viewtopic.php?f=148&t=234022&p=1374577& ... l#p1374577

Hanselandgretel
G-First Sergeant
G-First Sergeant
Posts: 148
Joined: Thu Jun 21, 2007 6:07 pm
Location: Claremont, MN

Re: Mule serial #

Post by Hanselandgretel » Thu Feb 23, 2017 7:39 pm

Here are some pictures for you Mule experts. My guess is that it is an A2.
Bubba has worked on the fuel system. Do all mules have the hand primer or just cold weather ones? How about the Gascolator? Mine has neither, but it also had a HUGE hose from the carb T to the gas tank instead of the microscopic steel line. Thanks for the help. Al Hansel


Chuck W.
G-Lieutenant General
G-Lieutenant General
Posts: 5073
Joined: Wed Dec 18, 2002 1:00 pm

Re: Mule serial #

Post by Chuck W. » Thu Feb 23, 2017 9:01 pm

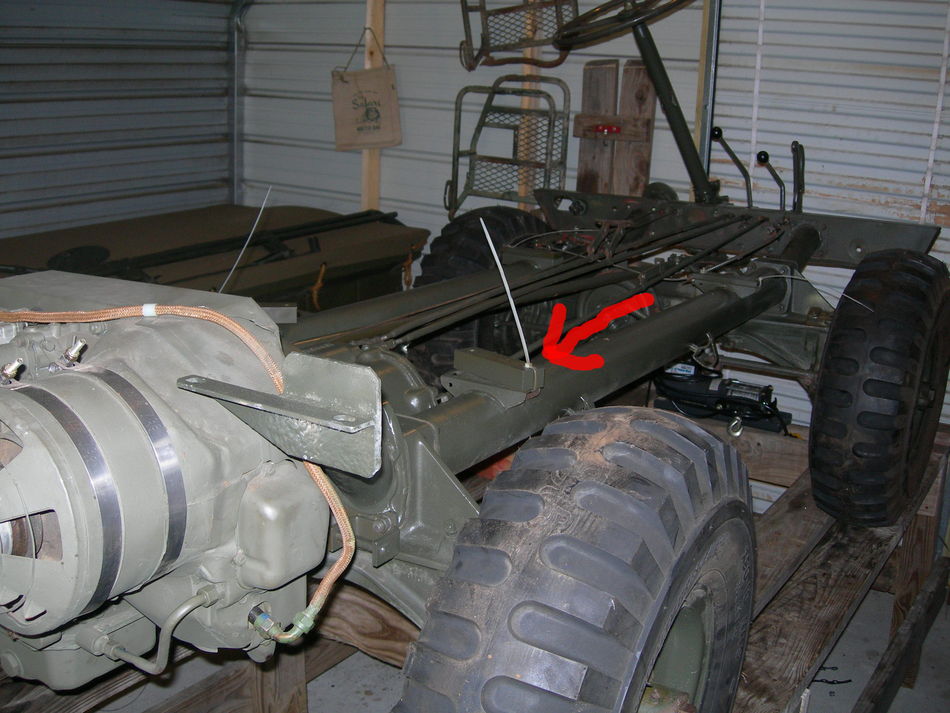

If it does not have the 2" spacer blocks at the rear deck mounts, I agree that it's an A2.

Series 1 4-cylinders all had a cold weather priming pump, but it was an attachment for the 2-cylinders, and is rarely seen. Check this thread:
viewtopic.php?f=79&t=275489&p=1606388&h ... g#p1606388

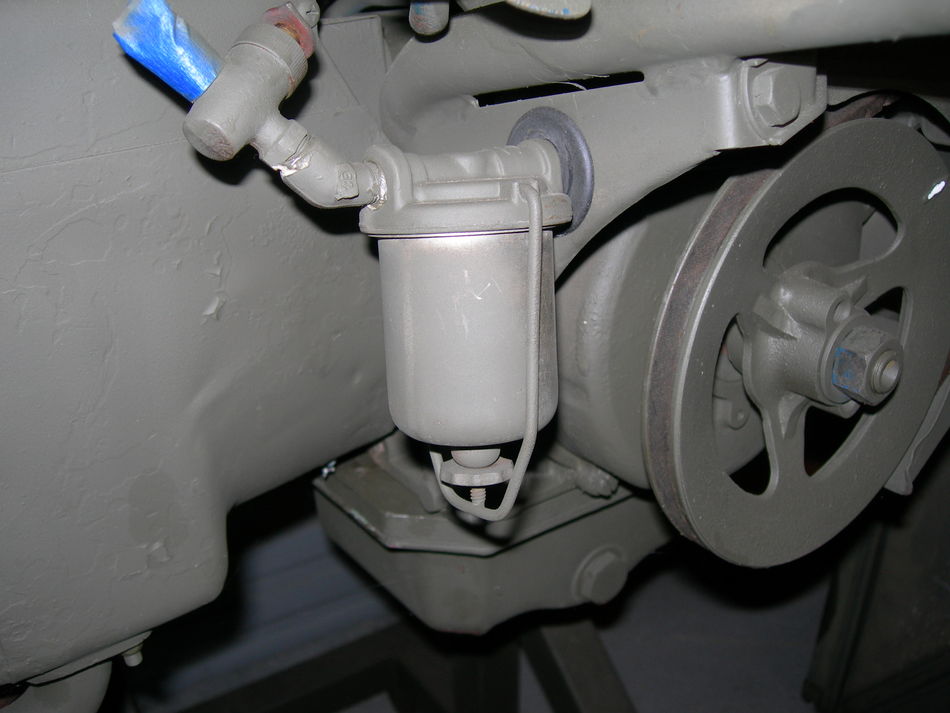

All the 2-cylinder engines use the fuel sediment bowl (Gascolator). There is also a fuel filter on the pickup tube inside the fuel tank.
viewtopic.php?f=148&t=205307

Return line from the carb "T" to the fuel tank should be 1/8"

Hanselandgretel
G-First Sergeant
G-First Sergeant
Posts: 148
Joined: Thu Jun 21, 2007 6:07 pm
Location: Claremont, MN

Re: Mule serial #

Post by Hanselandgretel » Fri Feb 24, 2017 6:55 pm

Thanks Chuck. Al
