Transmission Poppet Ball Modification

Post by muleman7 » Sat Oct 24, 2015 7:58 pm

I have come across Mules that shift hard between 2nd and 3rd. When I evaluate a mule I check the shifting between 2nd and 3rd with the engine off. I will shift into 2nd and with steady pressure try to push the gearshift into 3rd. Then when it's in 3rd with steady pressure I will try to pull the gearshift into 2nd. I find some transmissions will not shift even if you steadily increase the force. They will only shift if you bump or jog the gearshift.

I have concluded that as the 1/4 inch poppet ball tries to move up the tube away from the shift shaft it gets wedged and the gearshift must be bumped to allow shifting. This is caused by the ball creating a ramp at the edge of the tube where it meets the shift shaft after years of shifting.

My remedy was to make a plug that would already be in the tube allowing it to move up without wedging. I started with a 3/8 inch long plug but now make it 1/2 inch long. Because one of the mules I modified using the 3/8 plug would not shift with out a heavy bump. The 1/2 inch plug corrected the hard shifting.

I use a 1/4 inch O-1 Keystone Ground and Polished Drill Rod. I cut a length and chuck it in my drill press [poor mans lathe] and round it using a file. then polish it with 400 grit. I cut and grind it to 0.500 inch. I then heat it with a torch to about 1450-1500 degrees and quench it in oil that was heated to about 125-150 degrees. I do not Temper the plug. I clean it using a wire wheel.

I then Mic the spring and grind it to the correct length.

I grease the shift tube and poppet plug insert the plug, spring and threaded plug.

I now have a transmission that shifts smoothly without jogging or bumping the gear shift lever. This could be done for 1st-Rev and Low-High.

The pic of the Poppet Plugs came from mule transmissions. One is 1/8 inch thick and the other is 5/16 inch thick. That is why I ground a socket to remove the thin headed plug.

The thing that I would like to know is how does shorting the spring affect the load it puts on the plug during shifting?

My last pic is of tools I developed to assist in working on the M274 and A3 transmission. I can install a new synchronizer without pulling the engine. I install the 2nd-3rd spring and ball then push them into the tube using a length of the 1/4 inch drill rod ground on the end to allow the plug to hold the ball in place when the rod is removed. I insert the plug so the notch faces to the 1st-rev shift shaft. I then install the lock out plug and the 1st-rev shift shaft then safety wire the fork. I then finesse the mainshaft into position with the fork on the synchro hub. I install the 1st-rev spring, ball and plug then set 1st-rev to neutral and install the 2nd-3rd shaft through the fork and against the temporary plug. I CAREFULLY push / tap using constant pressure to drive out the temporary plug. If all goes well your home free. BUT if there is any gap between the temporary plug and the shaft the ball can pop out and you have to start ALL OVER. I then set and safety wire 2nd-3rd fork. Yes I have to retrieve the temporary plug.

Remove the Spring

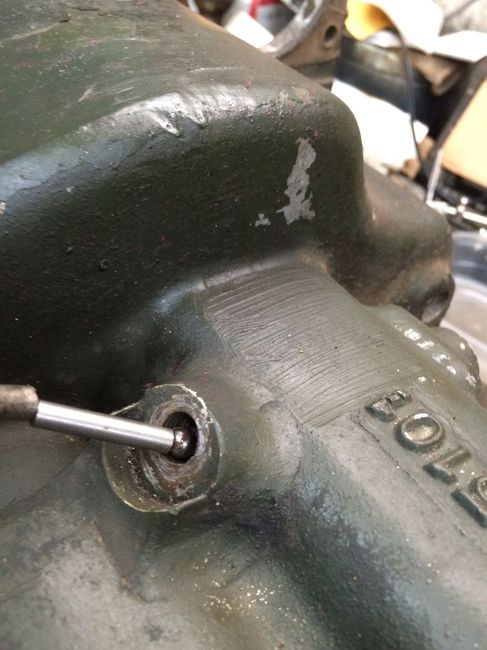

Remove the Ball


Measure the Ball 0.250 inch


Measure the Spring 0.905 inch


Filing the Poppet Plug to round the end


Marking the Poppet Plug length


Cutting the Poppet Plug


Measuring the Poppet Plug


Heating Poppet Plug to 1450-1500 degrees


Quenching Poppet Plug in Oil heated to 125-150 degrees

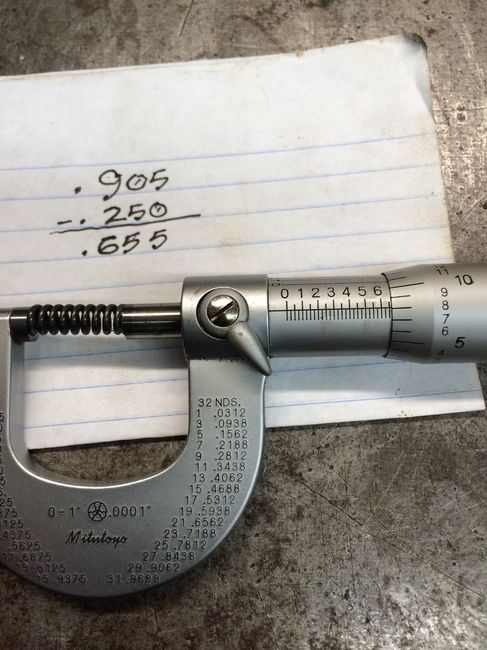

Checking ground Spring length it should be 0.655 inch actual 0.658 inch


Comparison of Original and Modified Springs and Ball / Plug


Dimensions of Poppet Plug Heads [securing bolt] one is 1/8 inch tall and the other is 5/16 inch tall

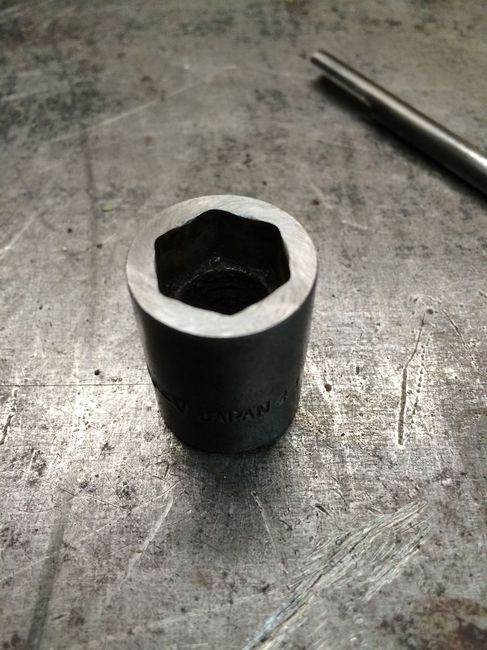

Modified 9/16 socket giving full contact to remove the 1/8 inch headed Poppet Plug


Shifting parts collected over the years most from cannibalizing the M274 transmissions when I could


Parts used to install the 2nd-3rd Shift Shaft Spring and Ball into the M274 transmission that has no separate external access
The 1/4 inch rod is ground to allow the temporary 2nd-3rd shift shaft plug to hold the spring and ball
The temporary plug is ground to accommodate the shift lock out plug [Pin, Straight, Headless] when the 1st-rev shaft is moved to neutral this allows the installation of the 2nd-3rd Shift Shaft. the pics below are how the tools are used.

Installing the 2nd-3rd Spring / Ball and the Temporary Plug


Set to install the 2nd-3rd Shift Shaft and drive out the Temporary Plug. The 1st-Rev shaft must be in neurtal.
